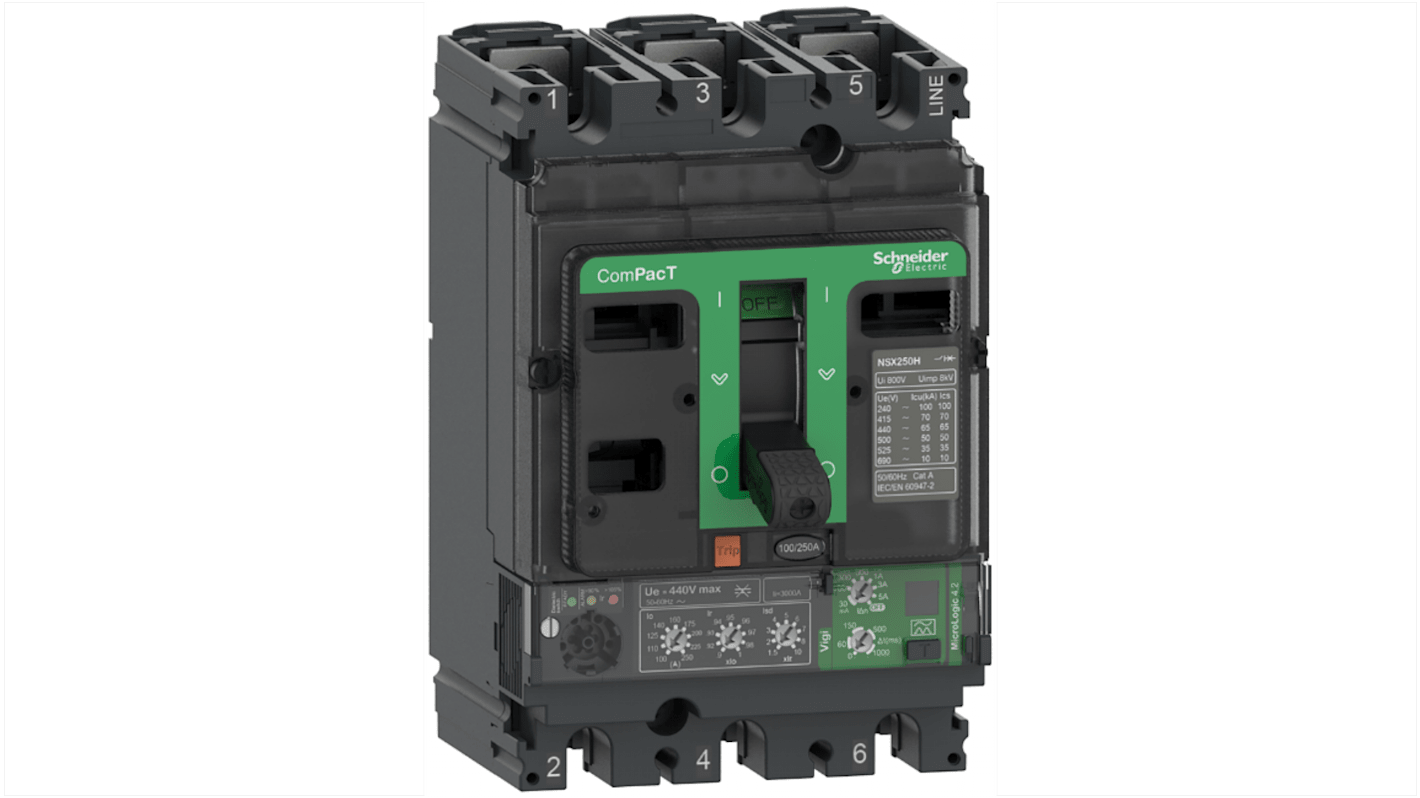

Schneider Electric, ComPact, NSX Molded Case Circuit Breaker 3-Pole 40 A, Breaking Capacity 25 kA
- RS Stock No.:
- 260-9399
- Mfr. Part No.:
- C10B34V040
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,719.00
(exc. VAT)
£2,062.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,719.00 |
*price indicative
- RS Stock No.:
- 260-9399
- Mfr. Part No.:
- C10B34V040
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | NSX | |
| Number of Poles | 3 | |
| Current Rating | 40 A | |
| Breaking Capacity | 25kA | |
| Rated AC Voltage | 440 V ac | |
| Depth | 86mm | |
| Height | 161mm | |
| Standards/Approvals | IEC 62262, EN/IEC 60947, EN/IEC 60947-2, IEC 60529, IEC 60664-1 | |
| Width | 105 mm | |
| Tripping Mechanism | Electronic | |
| Tripping Characteristics | LSoIR | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series NSX | ||
Number of Poles 3 | ||
Current Rating 40 A | ||
Breaking Capacity 25kA | ||
Rated AC Voltage 440 V ac | ||
Depth 86mm | ||
Height 161mm | ||
Standards/Approvals IEC 62262, EN/IEC 60947, EN/IEC 60947-2, IEC 60529, IEC 60664-1 | ||
Width 105 mm | ||
Tripping Mechanism Electronic | ||
Tripping Characteristics LSoIR | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CN
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This version comes with a variety of optional functions and accessories.
MicroLogic 4.2 trip unit
3 Pole
International standards (IEC 60947), CCC, EAC
