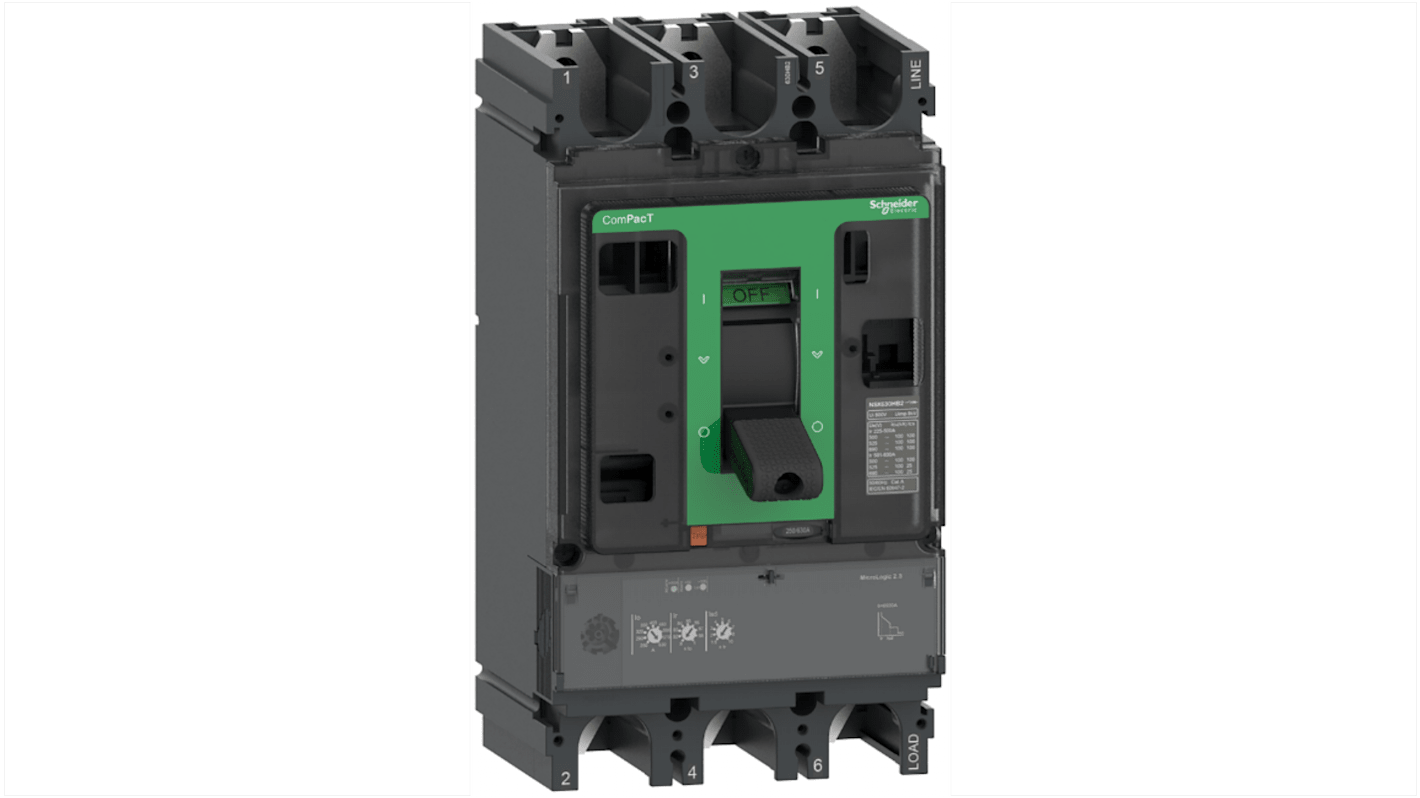

Schneider Electric, ComPacT MCCB 3P 630A, Breaking Capacity 50 kA, Fixed Mount
- RS Stock No.:
- 260-8223
- Mfr. Part No.:
- C63N32D630
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£4,378.18
(exc. VAT)
£5,253.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £4,378.18 |
*price indicative
- RS Stock No.:
- 260-8223
- Mfr. Part No.:
- C63N32D630
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Range | ComPacT | |
Series | NSX | |
Number of Poles | 3 | |
Current Rating | 630A | |
Breaking Capacity at Maximum Voltage Rating | 50 kA | |
Rated AC Voltage | 690V | |
Mounting Style | Fixed | |
Length | 140mm | |
Width | 255mm | |
Depth | 110mm | |
Break Time | Instantaneous | |
Application | Distribution | |
Circuit Breaker Type | MCCB | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Range ComPacT | ||
Series NSX | ||
Number of Poles 3 | ||
Current Rating 630A | ||
Breaking Capacity at Maximum Voltage Rating 50 kA | ||
Rated AC Voltage 690V | ||
Mounting Style Fixed | ||
Length 140mm | ||
Width 255mm | ||
Depth 110mm | ||
Break Time Instantaneous | ||
Application Distribution | ||
Circuit Breaker Type MCCB | ||
- COO (Country of Origin):
- FR
Schneider Electric NSX Series MCCB, 630A Current Rating, 50kA Breaking Capacity - C63N32D630
This MCCB is a robust circuit breaker designed for electrical distribution systems. It features a current rating of 630A and a breaking capacity of 50kA. With dimensions of 140mm in length, 255mm in height, and 110mm in depth, this fixed-mount MCCB ensures efficient protection in various industrial applications.
Features & Benefits
• High breaking capacity ensures safety during faults
• Instantaneous break time allows for rapid circuit response
• Suitable for isolation, complying with international standards
• Electronic trip unit technology enhances reliability
• Adjustable long-time protection accommodates various loads
• Multiple auxiliary slots offer flexibility for additional features
• Instantaneous break time allows for rapid circuit response
• Suitable for isolation, complying with international standards
• Electronic trip unit technology enhances reliability
• Adjustable long-time protection accommodates various loads
• Multiple auxiliary slots offer flexibility for additional features
Applications
• Ideal for industrial electrical distribution systems
• Utilised in facilities requiring high-capacity circuit protection
• Effective in commercial involving heavy machinery
• Used in environments where rapid fault response is crucial
• Utilised in facilities requiring high-capacity circuit protection
• Effective in commercial involving heavy machinery
• Used in environments where rapid fault response is crucial
What kind of settings can be adjusted for long-time protection?
The long-time protection pick-up adjustment allows for a range of 250A to 630A with nine settings to accommodate varying load requirements, ensuring tailored protection based on operational needs.
How does the instantaneous protection work in this circuit breaker?
Instantaneous protection is designed to trip the circuit when detecting an overload above 6900A, providing immediate disconnection to prevent damage, especially in high current situations.
What are the implications of using this MCCB in varying environmental conditions?
This MCCB operates effectively in temperatures ranging from -25°C to 70°C, making it versatile for different operational environments. It supports storage at temperatures from -50°C to 85°C without performance degradation.
Can auxiliary components be added to enhance functionality?
Yes, there are six slots available for electrical auxiliaries, allowing for increased monitoring and control features to adapt the breaker to specific system requirements or user preferences.
