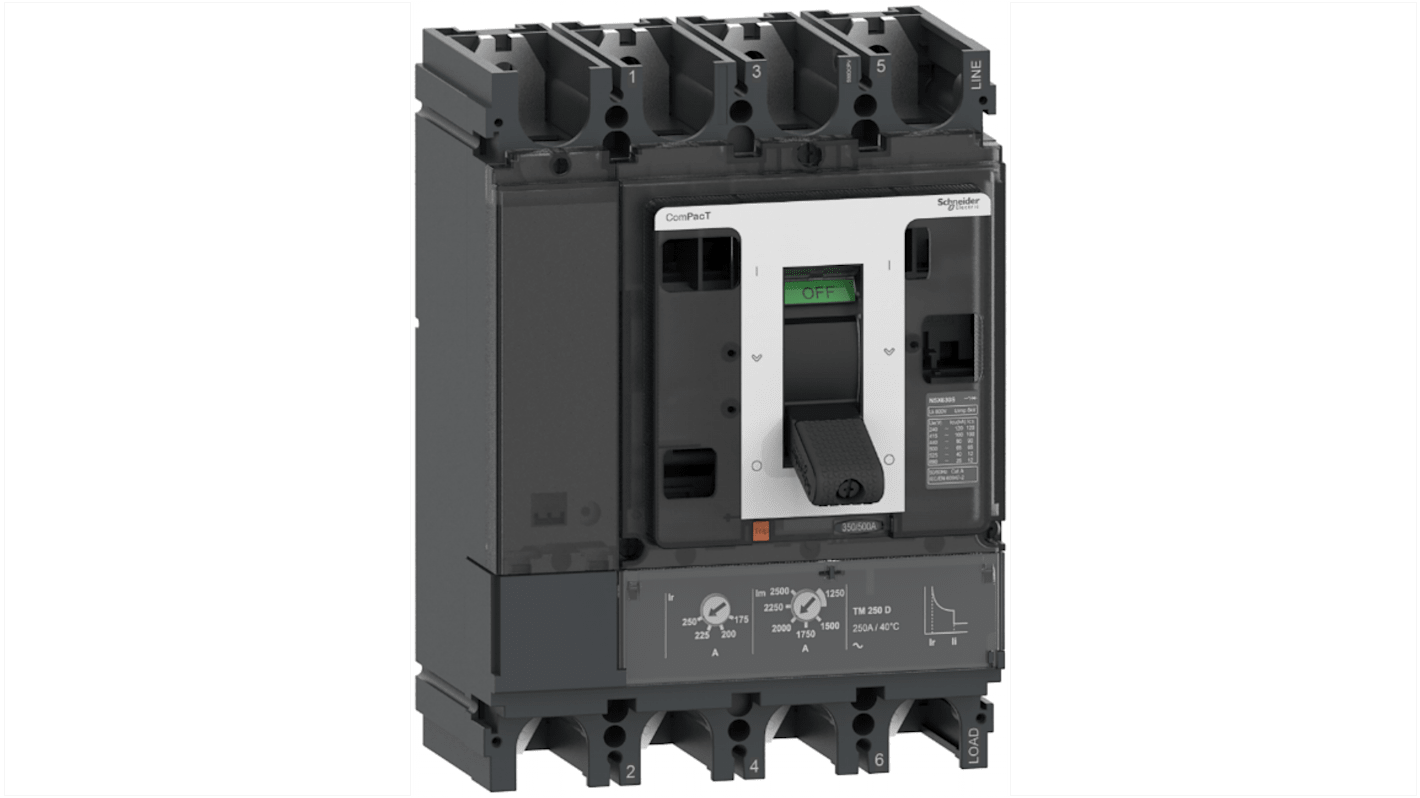

Schneider Electric, ComPact, NSX Molded Case Circuit Breaker 4-Pole 250 A, Breaking Capacity 10 kA
- RS Stock No.:
- 260-8103
- Mfr. Part No.:
- C40F4TM250D1
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£3,224.08
(exc. VAT)
£3,868.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,224.08 |
*price indicative
- RS Stock No.:
- 260-8103
- Mfr. Part No.:
- C40F4TM250D1
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | NSX | |
| Number of Poles | 4 | |
| Current Rating | 250 A | |
| Breaking Capacity | 10kA | |
| Rated DC Voltage | 1000 V dc | |
| Depth | 110mm | |
| Standards/Approvals | EN/IEC 60947 | |
| Width | 185 mm | |
| Height | 225mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Thermomagnetic | |
| Tripping Mechanism | TM-DC | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series NSX | ||
Number of Poles 4 | ||
Current Rating 250 A | ||
Breaking Capacity 10kA | ||
Rated DC Voltage 1000 V dc | ||
Depth 110mm | ||
Standards/Approvals EN/IEC 60947 | ||
Width 185 mm | ||
Height 225mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Thermomagnetic | ||
Tripping Mechanism TM-DC | ||
- COO (Country of Origin):
- FR
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The trip unit provides adjustable long time, short time and instantaneous protection.
Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Ergonomic new toggle for easier breaker manual oper
