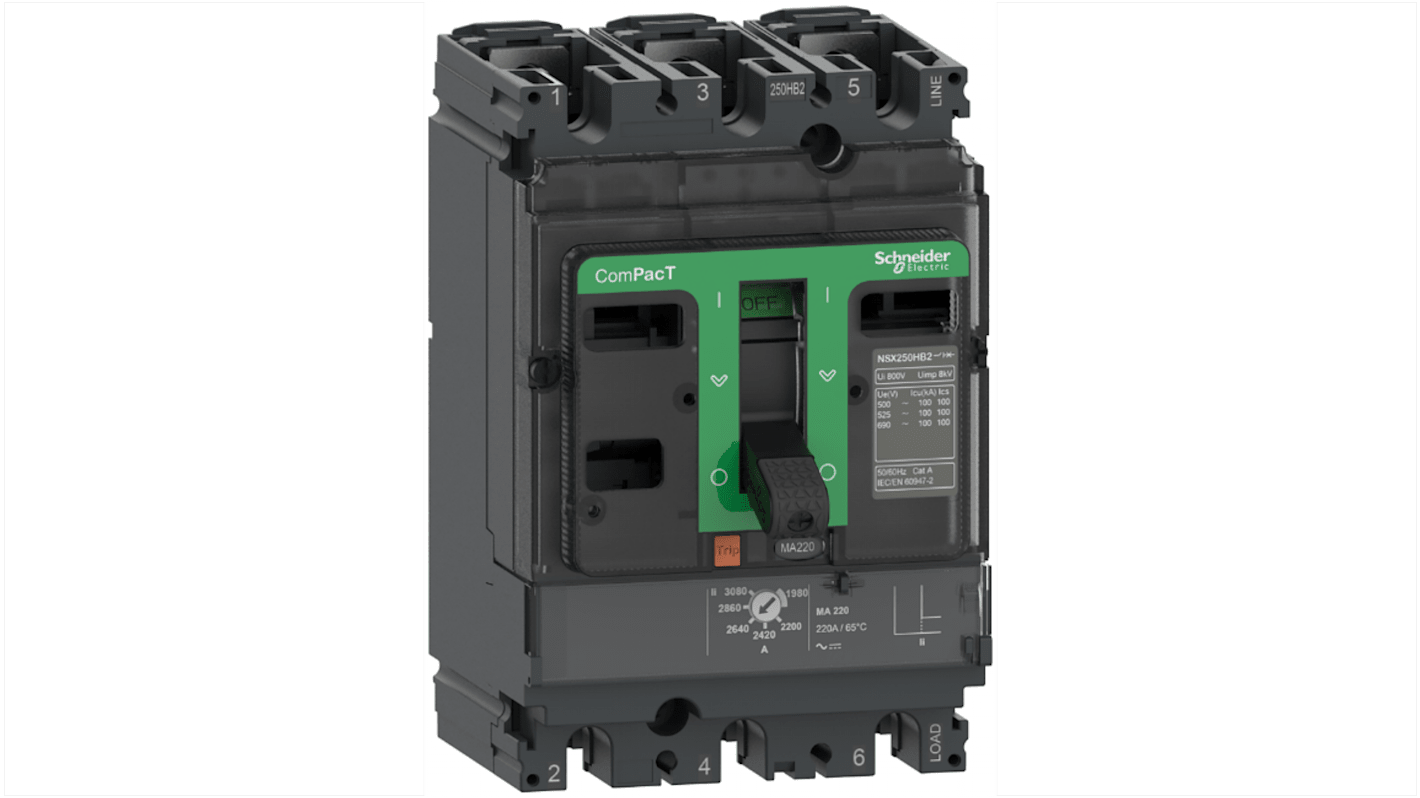

Schneider Electric, ComPact, NSX Molded Case Circuit Breaker 3-Pole 220 A, Breaking Capacity 75 kA
- RS Stock No.:
- 260-8010
- Mfr. Part No.:
- C25V3MA220
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£2,083.78
(exc. VAT)
£2,500.54
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,083.78 |
*price indicative
- RS Stock No.:
- 260-8010
- Mfr. Part No.:
- C25V3MA220
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | NSX | |
| Number of Poles | 3 | |
| Current Rating | 220 A | |
| Breaking Capacity | 75kA | |
| Rated AC Voltage | 690 V ac | |
| Standards/Approvals | EN/IEC 60947, IEC 60529, IEC 60664-1, IEC 60947-2, IEC 62262 | |
| Width | 105 mm | |
| Height | 161mm | |
| Depth | 86mm | |
| Tripping Characteristics | Ohne Erdschlussschutz, Adjustable, Short Circuit Protection | |
| Tripping Mechanism | Magnetic | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series NSX | ||
Number of Poles 3 | ||
Current Rating 220 A | ||
Breaking Capacity 75kA | ||
Rated AC Voltage 690 V ac | ||
Standards/Approvals EN/IEC 60947, IEC 60529, IEC 60664-1, IEC 60947-2, IEC 62262 | ||
Width 105 mm | ||
Height 161mm | ||
Depth 86mm | ||
Tripping Characteristics Ohne Erdschlussschutz, Adjustable, Short Circuit Protection | ||
Tripping Mechanism Magnetic | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- PL
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. It comes with a variety of optional functions and accessories.
Experience easier installation
Estimated 40% reduction of wiring time for panel builders
Ergonomic new toggle for easier breaker manual operation
