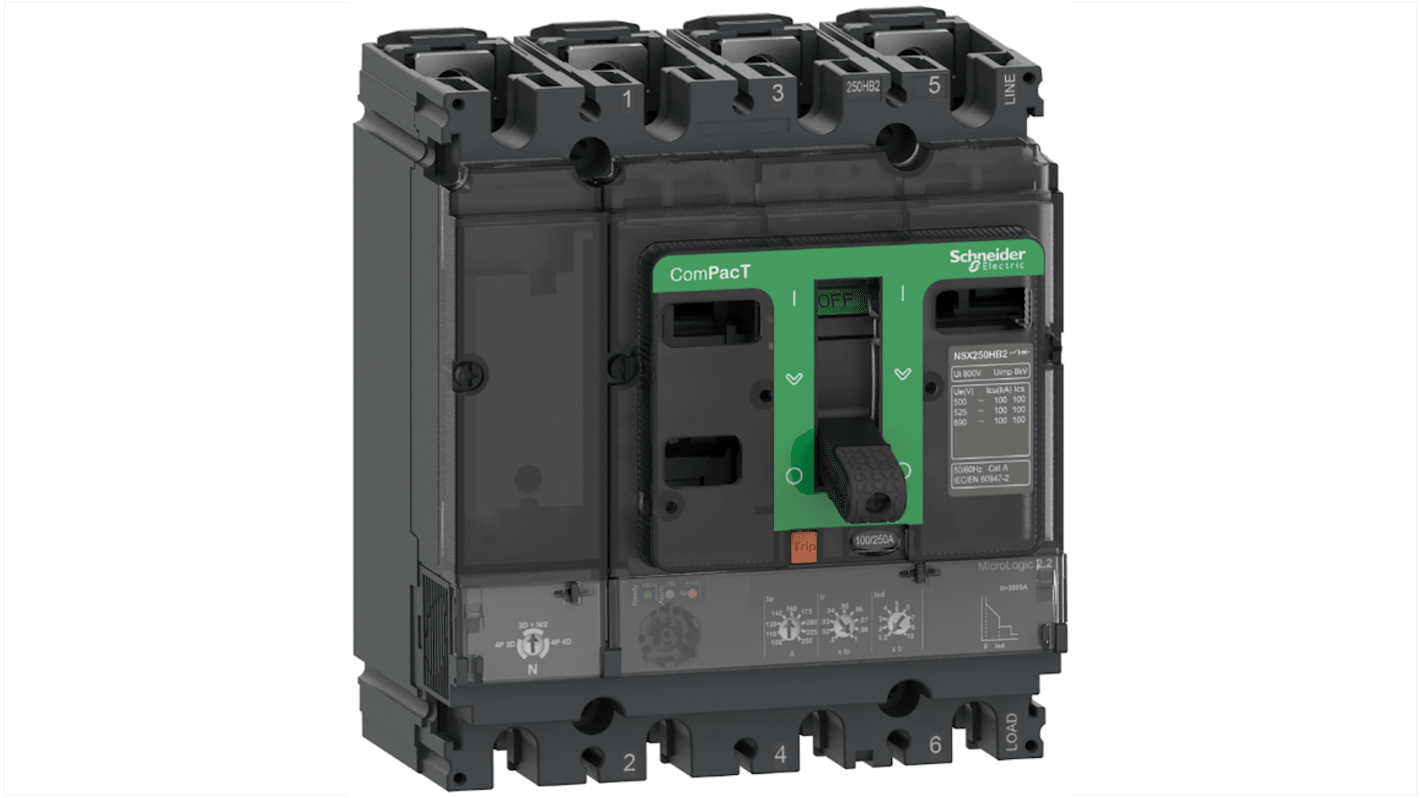

Schneider Electric, ComPact, NSX Molded Case Circuit Breaker 4-Pole 160 A, Breaking Capacity 200 kA
- RS Stock No.:
- 260-7977
- Mfr. Part No.:
- C25R42D160
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£2,680.06
(exc. VAT)
£3,216.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,680.06 |
*price indicative
- RS Stock No.:
- 260-7977
- Mfr. Part No.:
- C25R42D160
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | ComPact | |
| Product Type | Molded Case Circuit Breaker | |
| Series | NSX | |
| Number of Poles | 4 | |
| Current Rating | 160 A | |
| Breaking Capacity | 200kA | |
| Rated AC Voltage | 690 V ac | |
| Depth | 86mm | |
| Standards/Approvals | EN/IEC 60947-2, IEC 60529, IEC 60664-1, IEC 60947-2, IEC 62262 | |
| Width | 140 mm | |
| Height | 161mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Electronic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range ComPact | ||
Product Type Molded Case Circuit Breaker | ||
Series NSX | ||
Number of Poles 4 | ||
Current Rating 160 A | ||
Breaking Capacity 200kA | ||
Rated AC Voltage 690 V ac | ||
Depth 86mm | ||
Standards/Approvals EN/IEC 60947-2, IEC 60529, IEC 60664-1, IEC 60947-2, IEC 62262 | ||
Width 140 mm | ||
Height 161mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Electronic | ||
- COO (Country of Origin):
- PL
The Schneider Electric electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. An earth leakage pre-alarm can be remotely available by installing the optional SDx module.
MicroLogic 2.2 trip unit
Ergonomic new toggle for easier breaker manual operation
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
