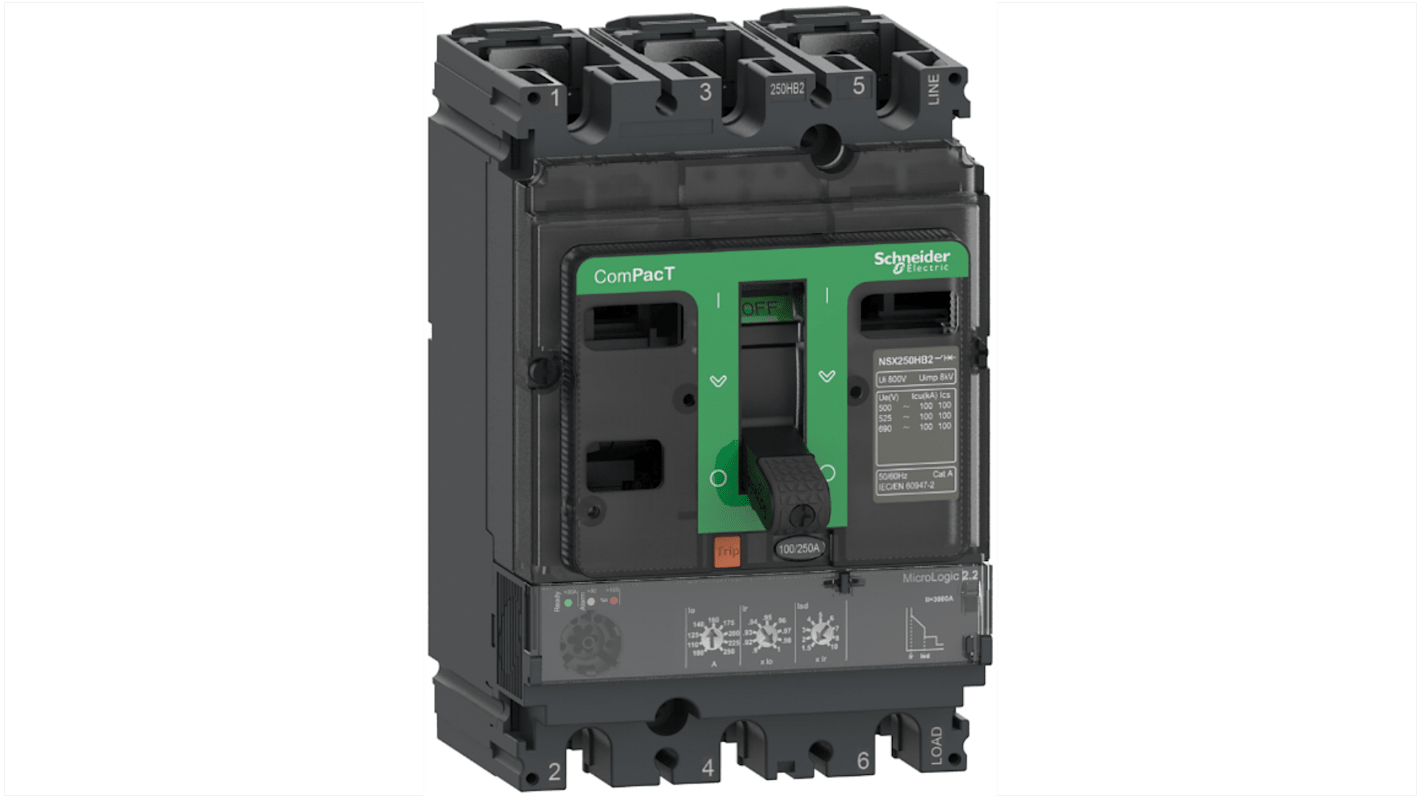

Schneider Electric, ComPact New Generation, ComPacT NSX Molded Case Circuit Breaker 3-Pole 160 A, Breaking Capacity 36
- RS Stock No.:
- 260-7752
- Mfr. Part No.:
- C16F32D160
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£975.29
(exc. VAT)
£1,170.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £975.29 |
*price indicative
- RS Stock No.:
- 260-7752
- Mfr. Part No.:
- C16F32D160
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | ComPact New Generation | |
| Product Type | Molded Case Circuit Breaker | |
| Series | ComPacT NSX | |
| Number of Poles | 3 | |
| Current Rating | 160 A | |
| Breaking Capacity | 36kA | |
| Height | 161mm | |
| Standards/Approvals | EAC, EN/IEC 60947-2, Marine, CCC | |
| Depth | 86mm | |
| Width | 105 mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | LSoI | |
| Tripping Mechanism | Electronic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range ComPact New Generation | ||
Product Type Molded Case Circuit Breaker | ||
Series ComPacT NSX | ||
Number of Poles 3 | ||
Current Rating 160 A | ||
Breaking Capacity 36kA | ||
Height 161mm | ||
Standards/Approvals EAC, EN/IEC 60947-2, Marine, CCC | ||
Depth 86mm | ||
Width 105 mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics LSoI | ||
Tripping Mechanism Electronic | ||
- COO (Country of Origin):
- FR
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This version comes with a variety of optional functions and accessories.
MicroLogic 2.2 trip unit
3 Pole
International standards (IEC 60947), CCC, EAC
