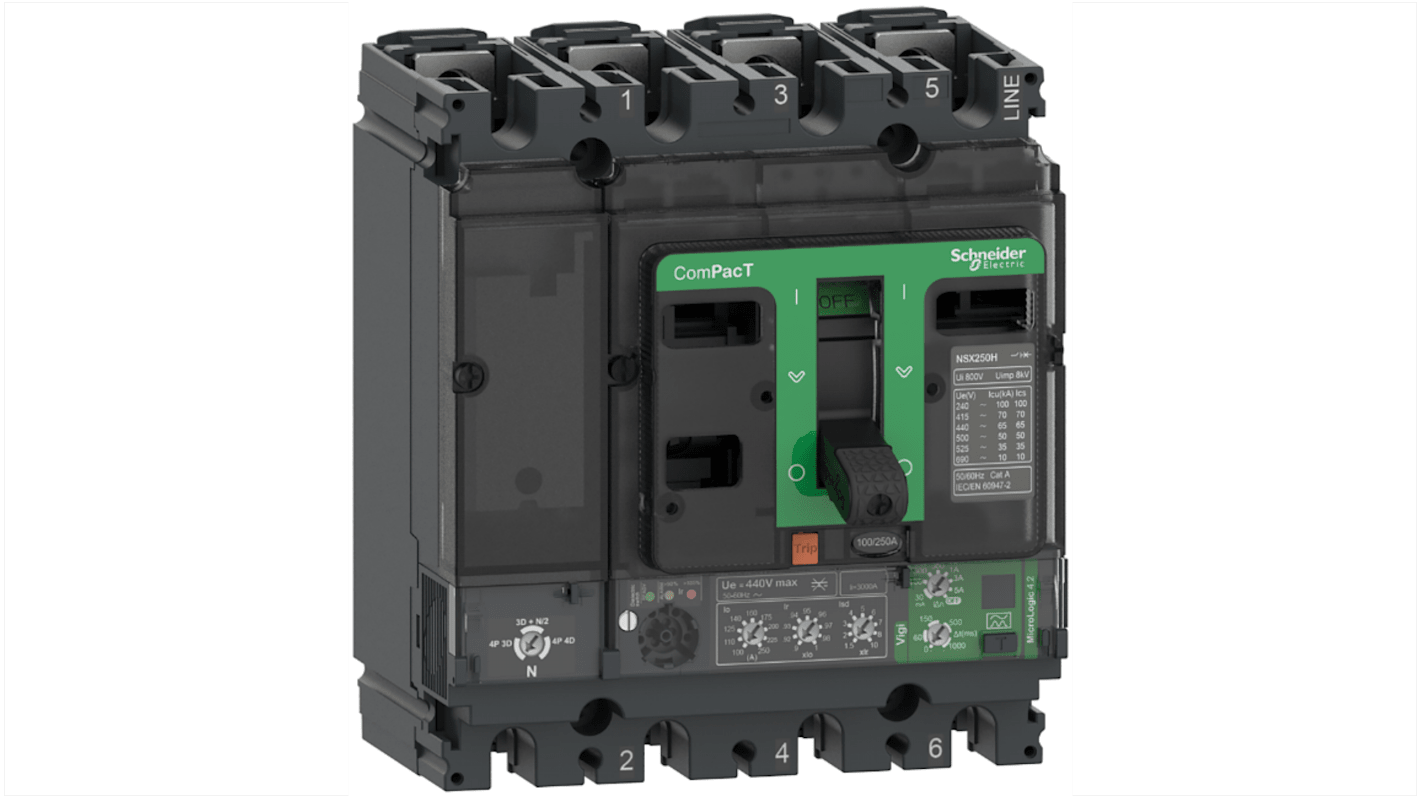

Name: Schneider Electric, ComPact New Generation, ComPacT NSX Molded Case Circuit Breaker 4-Pole 160A, Breaking Capacity 25 kA
Brand: Schneider Electric
SKU: 260-7745
Price: 2889.14 GBP
Availability: InStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Molded Case Circuit Breaker
	Range	ComPact New Generation
	Series	ComPacT NSX
	Number of Poles	4
	Current Rating	160A
	Breaking Capacity	25kA
	Depth	86mm
	Width	140mm
	Standards/Approvals	EN/IEC 60947
	Height	161mm
	Better World Verification	Byggvarubedömningen
	Better World Product	Yes
	Tripping Mechanism	Electronic
	Reset Actuator Type	Toggle Switch

	Select all
	Brand Schneider Electric
	Product Type Molded Case Circuit Breaker
	Range ComPact New Generation
	Series ComPacT NSX
	Number of Poles 4
	Current Rating 160A
	Breaking Capacity 25kA
	Depth 86mm
	Width 140mm
	Standards/Approvals EN/IEC 60947
	Height 161mm
	Better World Verification Byggvarubedömningen
	Better World Product Yes
	Tripping Mechanism Electronic
	Reset Actuator Type Toggle Switch

COO (Country of Origin):: CN

Schneider Electric NSX160B Series MCCB, 4 Poles, 160A Current Rating - C16B44V160

This MCCB belongs to the ComPacT New Generation category, designed to deliver reliable electrical protection. It operates with a current rating of 160A and features a robust 4 pole configuration suitable for fixed mounting. Measuring 140mm in width, 161mm in height, and 86mm in depth, it ensures functionality in various installations.

Features & Benefits

• High breaking capacity of up to 40kA ensures safety during faults

• Integrated earth leakage protection enhances safety against critical failures

• Adjustable protection settings provide flexibility for diverse loads

• Mechanical and electrical durability of 40,000 cycles ensures long-lasting performance

Applications

• Used for main distribution in industrial systems

• Suitable for commercial electrical networks requiring robust circuit protection

• Ideal for installations needing low voltage circuit breakers

• Used in environments up to 70°C with 95% humidity tolerance

• Ideal for settings needing compliance with EN/IEC standards

What are the protection functions available in this device?

It offers overload protection, short-circuit protection with fixed delay, instantaneous short-circuit protection, and earth leakage protection for comprehensive electrical safety.

How is the earth leakage protection sensitivity adjusted?

The sensitivity can be adjusted between 30mA and 5A, allowing customisation based on specific operational requirements or safety standards.

What are the key mounting options for this MCCB?

It supports both horisontal and vertical mounting configurations, providing versatility for various installation types.

How does the trip unit contribute to the protection in this circuit breaker?

The trip unit employs advanced electronic technology, facilitating precise adjustments for various protection settings, ensuring optimal safety and responsiveness during electrical faults.
