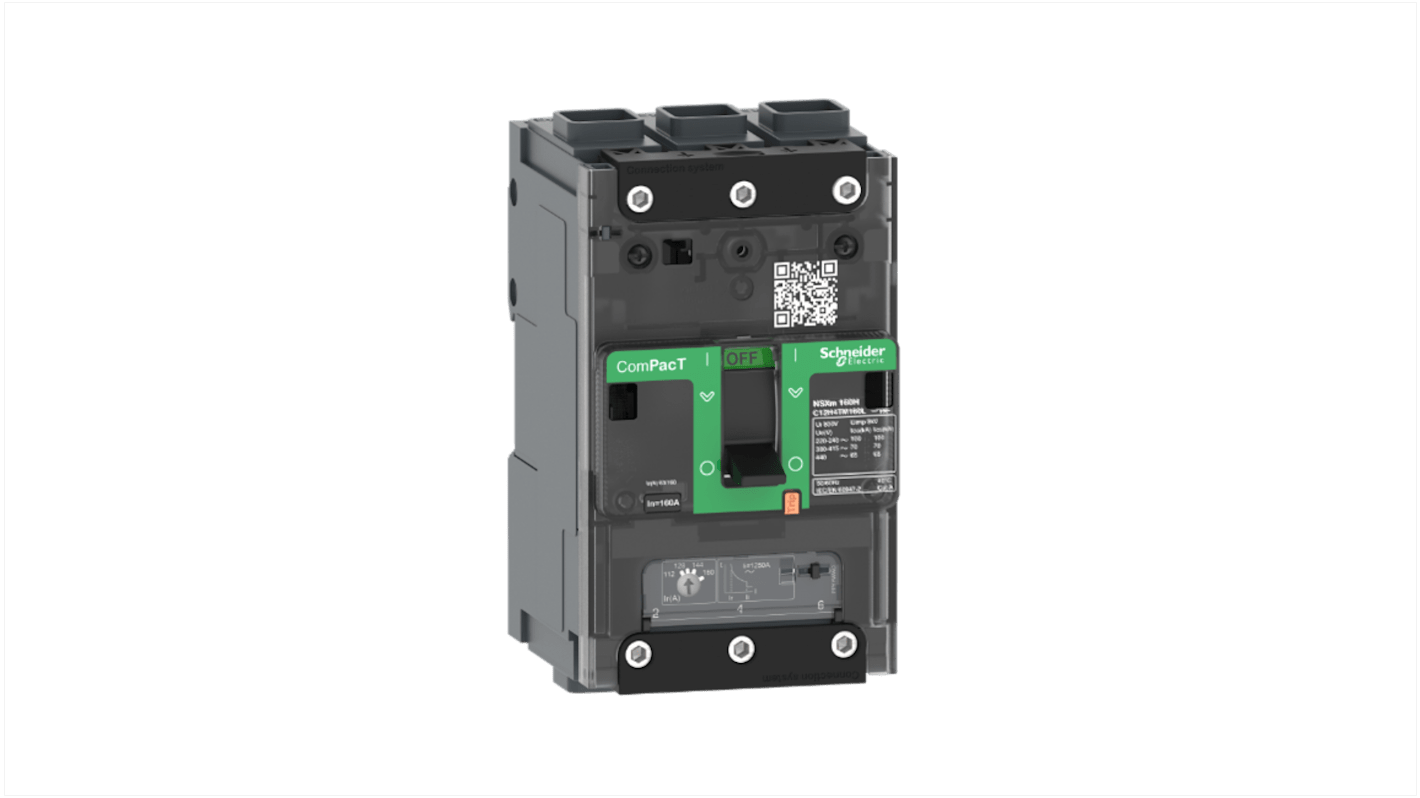

Schneider Electric, ComPact, NSXmF Molded Case Circuit Breaker 3-Pole 16 A, Breaking Capacity 36 kA
- RS Stock No.:
- 260-7585
- Mfr. Part No.:
- C11F3TM016L
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£350.79
(exc. VAT)
£420.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £350.79 |
*price indicative
- RS Stock No.:
- 260-7585
- Mfr. Part No.:
- C11F3TM016L
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | ComPact | |
| Product Type | Molded Case Circuit Breaker | |
| Series | NSXmF | |
| Number of Poles | 3 | |
| Current Rating | 16 A | |
| Breaking Capacity | 36kA | |
| Rated AC Voltage | 690 V ac | |
| Terminal Type | EverLink Cable Lug | |
| Standards/Approvals | IEC 60529, EN/IEC 60947, IEC 60664-1, IEC 60947-2, IEC 62262 | |
| Depth | 80mm | |
| Height | 137mm | |
| Width | 81 mm | |
| Tripping Characteristics | Thermomagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | TMD | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range ComPact | ||
Product Type Molded Case Circuit Breaker | ||
Series NSXmF | ||
Number of Poles 3 | ||
Current Rating 16 A | ||
Breaking Capacity 36kA | ||
Rated AC Voltage 690 V ac | ||
Terminal Type EverLink Cable Lug | ||
Standards/Approvals IEC 60529, EN/IEC 60947, IEC 60664-1, IEC 60947-2, IEC 62262 | ||
Depth 80mm | ||
Height 137mm | ||
Width 81 mm | ||
Tripping Characteristics Thermomagnetic | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism TMD | ||
- COO (Country of Origin):
- PL
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. Itcomes with a variety of optional functions and accessories.
Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Ergonomic new toggle for easier breaker manual oper
