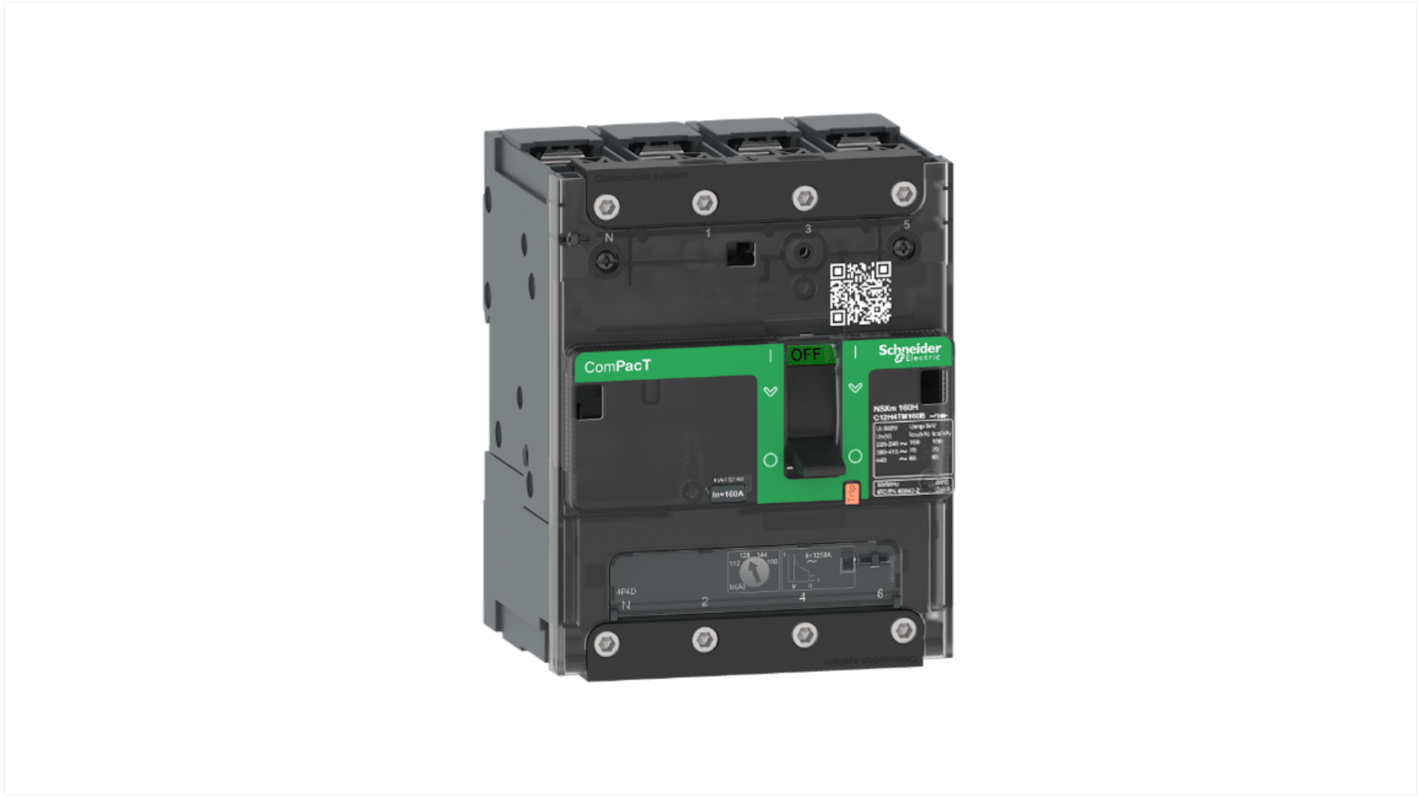

Schneider Electric, ComPact, NSXmE Molded Case Circuit Breaker 4-Pole 25 A, Breaking Capacity 16 kA
- RS Stock No.:
- 260-7569
- Mfr. Part No.:
- C11E4TM025B
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£372.84
(exc. VAT)
£447.41
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £372.84 |
*price indicative
- RS Stock No.:
- 260-7569
- Mfr. Part No.:
- C11E4TM025B
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | NSXmE | |
| Number of Poles | 4 | |
| Current Rating | 25 A | |
| Breaking Capacity | 16kA | |
| Rated AC Voltage | 690 V ac | |
| Terminal Type | Connection Terminal Compression Cable Lug | |
| Height | 137mm | |
| Depth | 80mm | |
| Width | 108 mm | |
| Standards/Approvals | IEC 62262, IEC 60947-2, IEC 60664-1, IEC 60529, EN/IEC 60947 | |
| Tripping Mechanism | Acetic Acid | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series NSXmE | ||
Number of Poles 4 | ||
Current Rating 25 A | ||
Breaking Capacity 16kA | ||
Rated AC Voltage 690 V ac | ||
Terminal Type Connection Terminal Compression Cable Lug | ||
Height 137mm | ||
Depth 80mm | ||
Width 108 mm | ||
Standards/Approvals IEC 62262, IEC 60947-2, IEC 60664-1, IEC 60529, EN/IEC 60947 | ||
Tripping Mechanism Acetic Acid | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- PL
The Schneider Electric fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. Itcomes with a variety of optional functions and accessories.
Ergonomic new toggle for easier breaker manual operation
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
