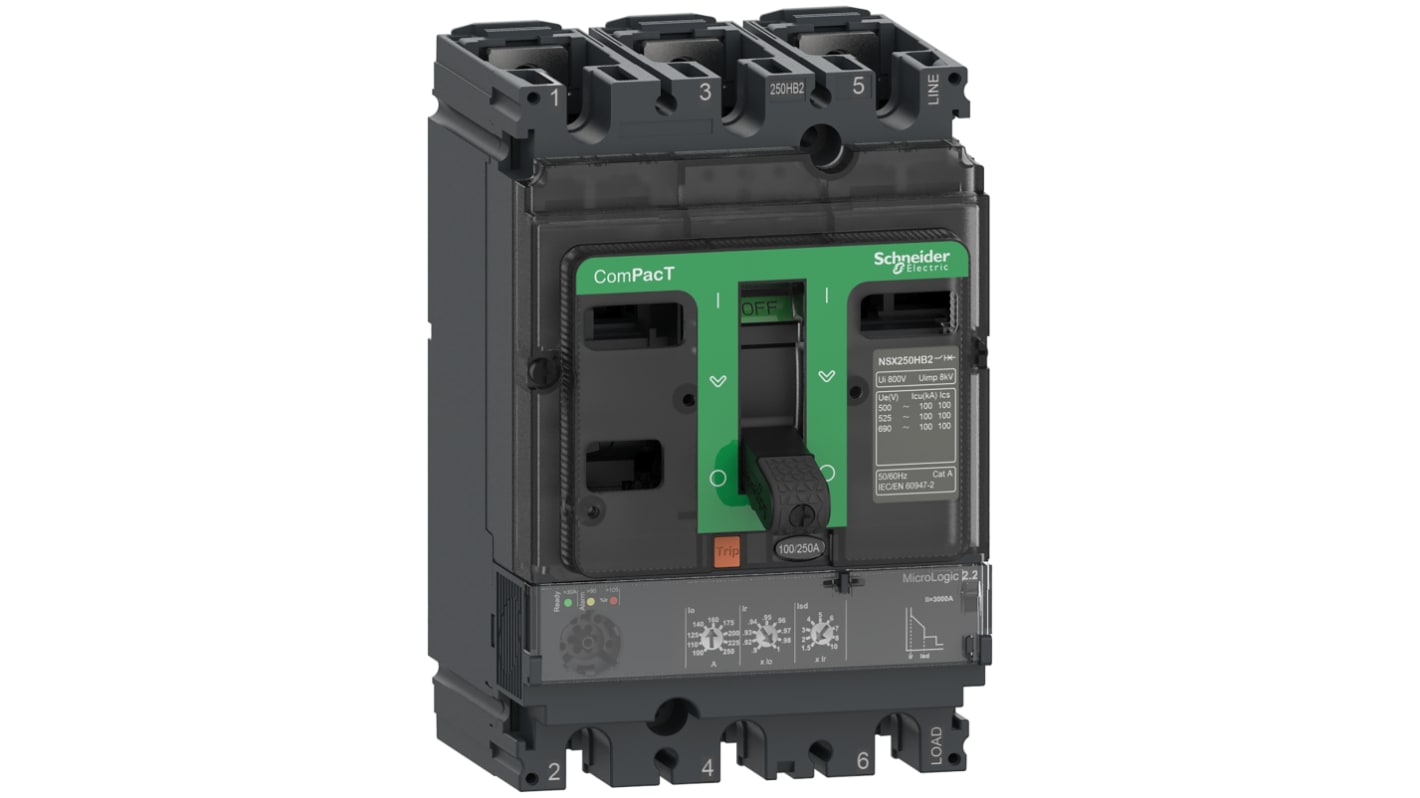

Schneider Electric, ComPact New Generation, ComPacT NSX100F Molded Case Circuit Breaker 3-Pole 40 A
- RS Stock No.:
- 254-6282
- Mfr. Part No.:
- C10F32D040
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£659.15
(exc. VAT)
£790.98
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £659.15 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 254-6282
- Mfr. Part No.:
- C10F32D040
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | ComPact New Generation | |
| Product Type | Molded Case Circuit Breaker | |
| Series | ComPacT NSX100F | |
| Number of Poles | 3 | |
| Current Rating | 40 A | |
| Rated AC Voltage | 690 V ac | |
| Width | 105 mm | |
| Standards/Approvals | CCC, EAC, EN/IEC 60947, Marine | |
| Depth | 86mm | |
| Height | 161mm | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Overload Protection, Short Circuit Protection | |
| Tripping Mechanism | Electronic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range ComPact New Generation | ||
Product Type Molded Case Circuit Breaker | ||
Series ComPacT NSX100F | ||
Number of Poles 3 | ||
Current Rating 40 A | ||
Rated AC Voltage 690 V ac | ||
Width 105 mm | ||
Standards/Approvals CCC, EAC, EN/IEC 60947, Marine | ||
Depth 86mm | ||
Height 161mm | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Overload Protection, Short Circuit Protection | ||
Tripping Mechanism Electronic | ||
- COO (Country of Origin):
- FR
MCCBs
The Schneider Electrics ComPacT NSX series is a complete fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The operational voltage is 690VAC 50/60Hz.TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This NSX version comes with a variety of optional functions and accessories.
Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
Ergonomic new toggle for easier breaker manual operation
Environmental performance of the product
