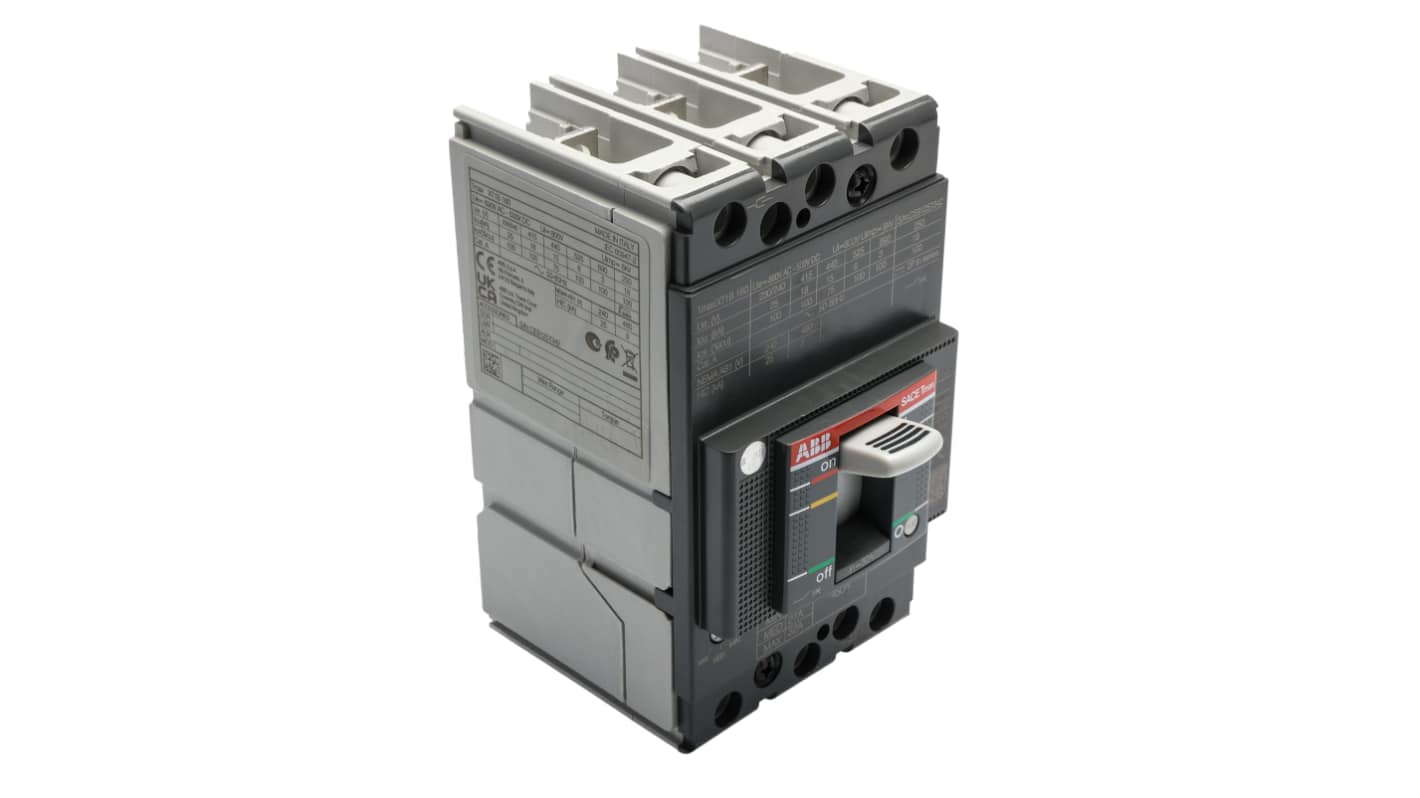

ABB, Tmax XT MCCB 3P 32A, Breaking Capacity 25 kA, Fixed Mount
- RS Stock No.:
- 237-6140
- Mfr. Part No.:
- 1SDA066802R1 XT1B 160 TMD 32A FF
- Brand:
- ABB
Subtotal (1 unit)*
£204.00
(exc. VAT)
£244.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £204.00 |
*price indicative
- RS Stock No.:
- 237-6140
- Mfr. Part No.:
- 1SDA066802R1 XT1B 160 TMD 32A FF
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | Tmax XT | |
| Series | 1SDA06 | |
| Number of Poles | 3 | |
| Current Rating | 32A | |
| Breaking Capacity at Maximum Voltage Rating | 25 kA | |
| Rated AC Voltage | 690V | |
| Rated DC Voltage | 500V | |
| Mounting Style | Fixed | |
| Length | 70mm | |
| Width | 76.2mm | |
| Depth | 70mm | |
| Reset Actuator Type | Toggle Switch | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Terminal Contact Type | Bolt | |
| Tripping Mechanism | Thermal Magnetic | |
Select all | ||
|---|---|---|
Brand ABB | ||
Range Tmax XT | ||
Series 1SDA06 | ||
Number of Poles 3 | ||
Current Rating 32A | ||
Breaking Capacity at Maximum Voltage Rating 25 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Mounting Style Fixed | ||
Length 70mm | ||
Width 76.2mm | ||
Depth 70mm | ||
Reset Actuator Type Toggle Switch | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Terminal Contact Type Bolt | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- IT
ABB 1SDA06 Series MCCB, 32A Current Rating, 25kA Breaking Capacity (at Maximum Voltage Rating) - 1SDA066802R1 XT1B 160 TMD 32A FF
This MCCB falls under the Thermal Magnetic Circuit Breaker category. Designed for fixed mounting, it features three poles and operates with a rated current of 32A. The product dimensions are 76.2mm in width, 70mm in height, and 70mm in depth, making it a compact choice for various setups. With a robust breaking capacity of 25kA, it efficiently protects electrical circuits from overloads.
Features & Benefits
• Offers reliable thermal magnetic tripping mechanism for swift response
• Rated AC voltage of 690V ensures compatibility with various systems
• Durable bolt terminal contact enhances secure electrical connections
• Quick reset using the toggle switch simplifies operation
• Mechanical durability rated at 25,000 cycles supports long service life
• Designed for quick installation in fixed mounting configurations
• Rated AC voltage of 690V ensures compatibility with various systems
• Durable bolt terminal contact enhances secure electrical connections
• Quick reset using the toggle switch simplifies operation
• Mechanical durability rated at 25,000 cycles supports long service life
• Designed for quick installation in fixed mounting configurations
Applications
• Ideal for power distribution in industrial environments
• Suitable for high-capacity electrical systems and machinery
• Utilised in automation and control systems for enhanced safety
• Used in commercial buildings to protect electrical installations
• Employed in manufacturing lines requiring circuit protection
• Suitable for high-capacity electrical systems and machinery
• Utilised in automation and control systems for enhanced safety
• Used in commercial buildings to protect electrical installations
• Employed in manufacturing lines requiring circuit protection
What makes the thermal magnetic tripping mechanism beneficial in this device?
The thermal magnetic tripping mechanism ensures immediate response to both overloads and short circuits, providing comprehensive protection to circuits. This dual functionality enhances safety by minimising damage during electrical faults.
How does the rated voltage affect the performance of the device?
Having a rated AC voltage of 690V allows this unit to handle high-voltage applications effectively. This capability ensures it can be integrated into a wide variety of electrical systems without compromising performance or safety.
What is the significance of the mechanical durability rating?
A mechanical durability of 25,000 cycles indicates that the device can withstand extensive use over time without failure. This rating ensures longevity and reliability, making it a valuable component in demanding industrial applications.
How does the toggle switch function enhance user experience?
The toggle switch provides a straightforward method for resetting the device, making it user-friendly. This feature allows quick operational recovery after a trip, streamlining maintenance processes.
What types of installations are suitable for fixed mounting?
Fixed mounting is suitable for installations that require stable and secure positioning, such as in control panels or machinery setups. This ensures that the circuit breaker remains firmly in place, enhancing safety and reliability.
