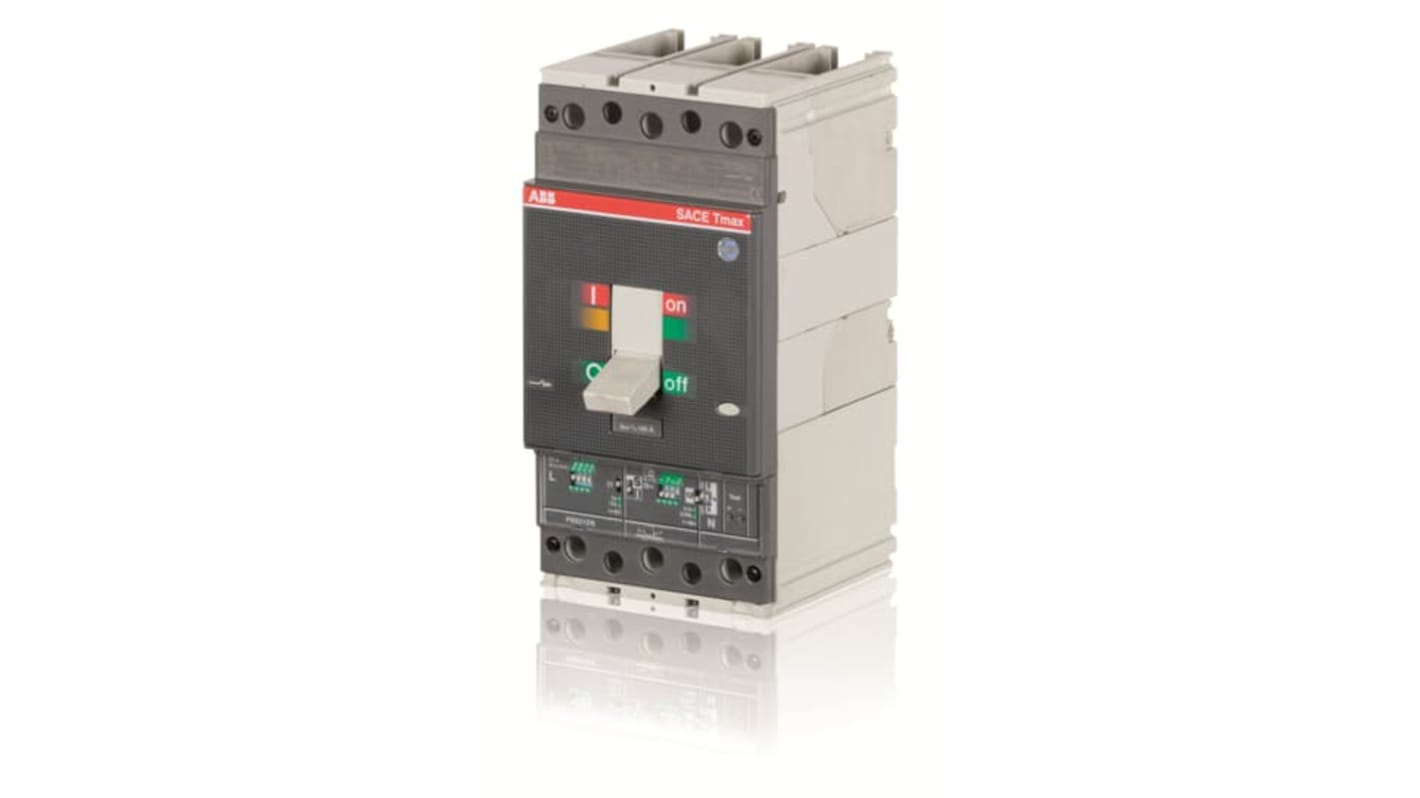

ABB, T4H, 1SDA Molded Case Circuit Breaker 3-Pole 320A, Breaking Capacity 100 kA, Fixed
- RS Stock No.:
- 237-5956
- Mfr. Part No.:
- 1SDA054133R1 T4H320 FF PR221-LS 320A
- Brand:
- ABB
Stock information currently inaccessible
- RS Stock No.:
- 237-5956
- Mfr. Part No.:
- 1SDA054133R1 T4H320 FF PR221-LS 320A
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | T4H | |
| Product Type | Molded Case Circuit Breaker | |
| Series | 1SDA | |
| Number of Poles | 3 | |
| Current Rating | 320A | |
| Breaking Capacity | 100kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 690V ac | |
| Terminal Type | Fixed | |
| Height | 205mm | |
| Width | 105mm | |
| Standards/Approvals | RoHS, CE, IEC | |
| Depth | 103.5mm | |
| Tripping Mechanism | Solid State | |
| Reset Actuator Type | Lever | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Range T4H | ||
Product Type Molded Case Circuit Breaker | ||
Series 1SDA | ||
Number of Poles 3 | ||
Current Rating 320A | ||
Breaking Capacity 100kA | ||
Mount Type Fixed | ||
Rated AC Voltage 690V ac | ||
Terminal Type Fixed | ||
Height 205mm | ||
Width 105mm | ||
Standards/Approvals RoHS, CE, IEC | ||
Depth 103.5mm | ||
Tripping Mechanism Solid State | ||
Reset Actuator Type Lever | ||
- COO (Country of Origin):
- IT
The ABB T4H 3 pole moulded case circuit breaker has front terminals and solid state release in AC PR221DS-LS/I. It provides electrical durability of 120 cycles per hour and has 1000 V rated insulation voltage(Ui). This circuit breaker comply with the IEC 60947-2 Standards.
Short circuit performance level: H
Release Type EL
320 A rated current (In)
Fixed circuit breaker
