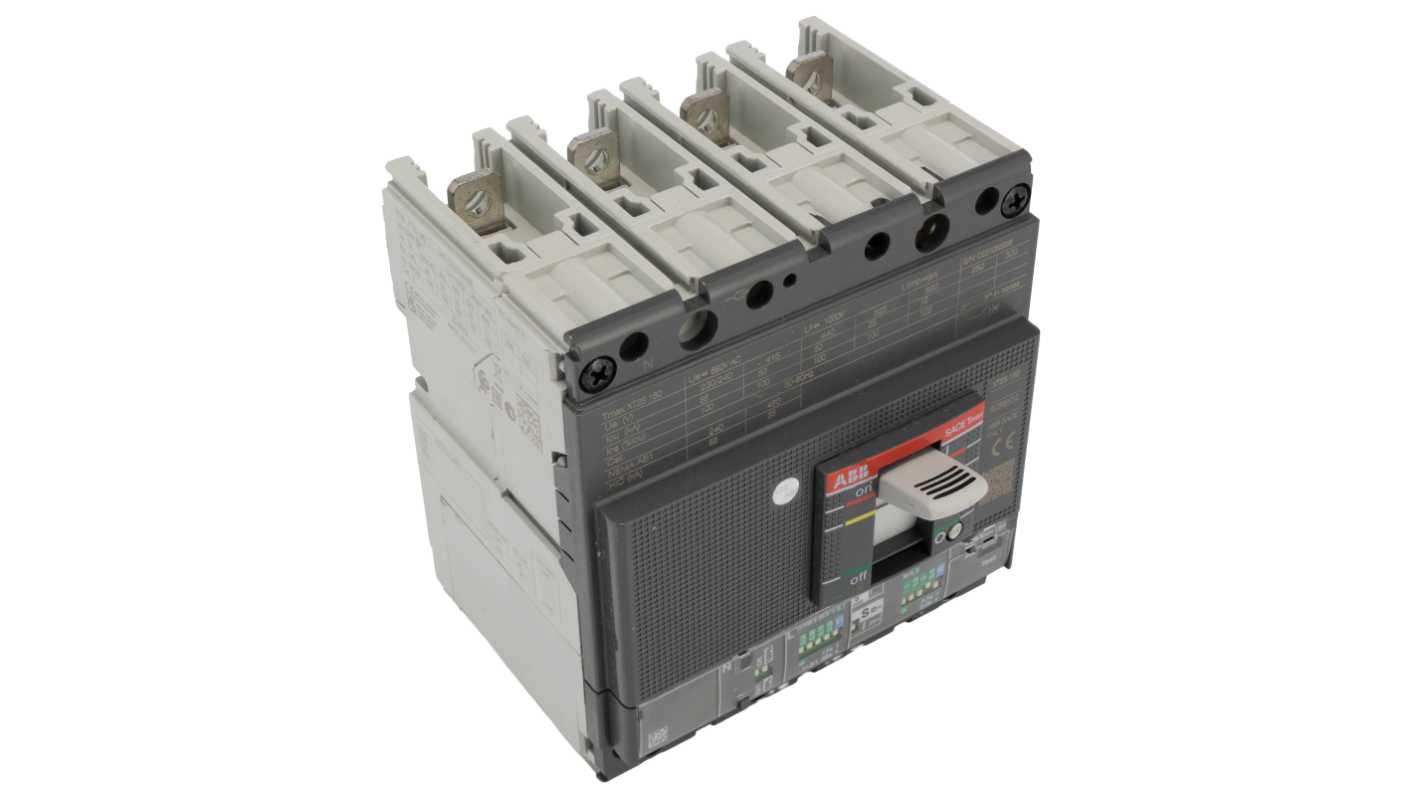

ABB, XT2S MCCB 4P 160A, Fixed Mount
- RS Stock No.:
- 236-7519
- Mfr. Part No.:
- 1SDA067838R1 XT2S 160 Ekip LS/I 160A 4P
- Brand:
- ABB
Subtotal (1 unit)*
£757.82
(exc. VAT)
£909.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £757.82 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 236-7519
- Mfr. Part No.:
- 1SDA067838R1 XT2S 160 Ekip LS/I 160A 4P
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | XT2S | |
| Series | 1SDA06 | |
| Number of Poles | 4 | |
| Current Rating | 160A | |
| Mounting Style | Fixed | |
| Better World Claim | Designed for disassembly | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand ABB | ||
Range XT2S | ||
Series 1SDA06 | ||
Number of Poles 4 | ||
Current Rating 160A | ||
Mounting Style Fixed | ||
Better World Claim Designed for disassembly | ||
Better World Product Yes | ||
- COO (Country of Origin):
- IT
ABB 1SDA06 Series MCCB, 160A Current Rating, 690V Rated AC Voltage - 1SDA067838R1 XT2S 160 Ekip LS/I 160A 4P
This MCCB is a sophisticated electrical protection device designed to safeguard circuits in various industrial applications. With a current rating of 160A and a compact design featuring dimensions of 82.5mm in length, 120mm in width, and 82.5mm in depth, it performs effectively in demanding environments. This fixed mount MCCB enhances reliability while managing electrical loads up to a rated AC voltage of 690V.
Features & Benefits
• Supports a maximum breaking capacity of 85kA for robust fault protection
• Designed with Type S tripping characteristics for predictable performance
• Utilises a toggle switch actuator for convenient manual resetting
• Features 4-pole configuration to accommodate three-phase loads
• Employs bolt terminal contact type for secure wiring connections
• Designed with Type S tripping characteristics for predictable performance
• Utilises a toggle switch actuator for convenient manual resetting
• Features 4-pole configuration to accommodate three-phase loads
• Employs bolt terminal contact type for secure wiring connections
Applications
• Used for three-phase motor protection in manufacturing sectors
• Ideal for heavy machinery and equipment safety
• Recommended for critical power distribution for industrial environments
• Suitable for control panels for electrical circuit management
• Ideal for heavy machinery and equipment safety
• Recommended for critical power distribution for industrial environments
• Suitable for control panels for electrical circuit management
What are the benefits of using a Type S tripping characteristic?
Type S tripping characteristics ensure that the circuit breaker trips in a manner that is both selective and coordinated, protecting downstream equipment without unnecessary system interruptions under minor overload conditions.
How does the fixed mount design contribute to performance?
The fixed mount design provides stability and allows for seamless integration into existing electrical enclosures, ensuring consistent performance and ease of installation in various settings.
What type of applications are best suited for this current rating?
The 160A current rating is particularly suited for high-demand applications such as industrial motors, large-scale HVAC systems, and any significant power distribution systems requiring reliable protection.
What are the advantages of a bolt terminal connection type?
Bolt terminal connections offer superior stability and electrical performance, reducing the risk of loose connections that can lead to failures or safety hazards in high-current applications.
