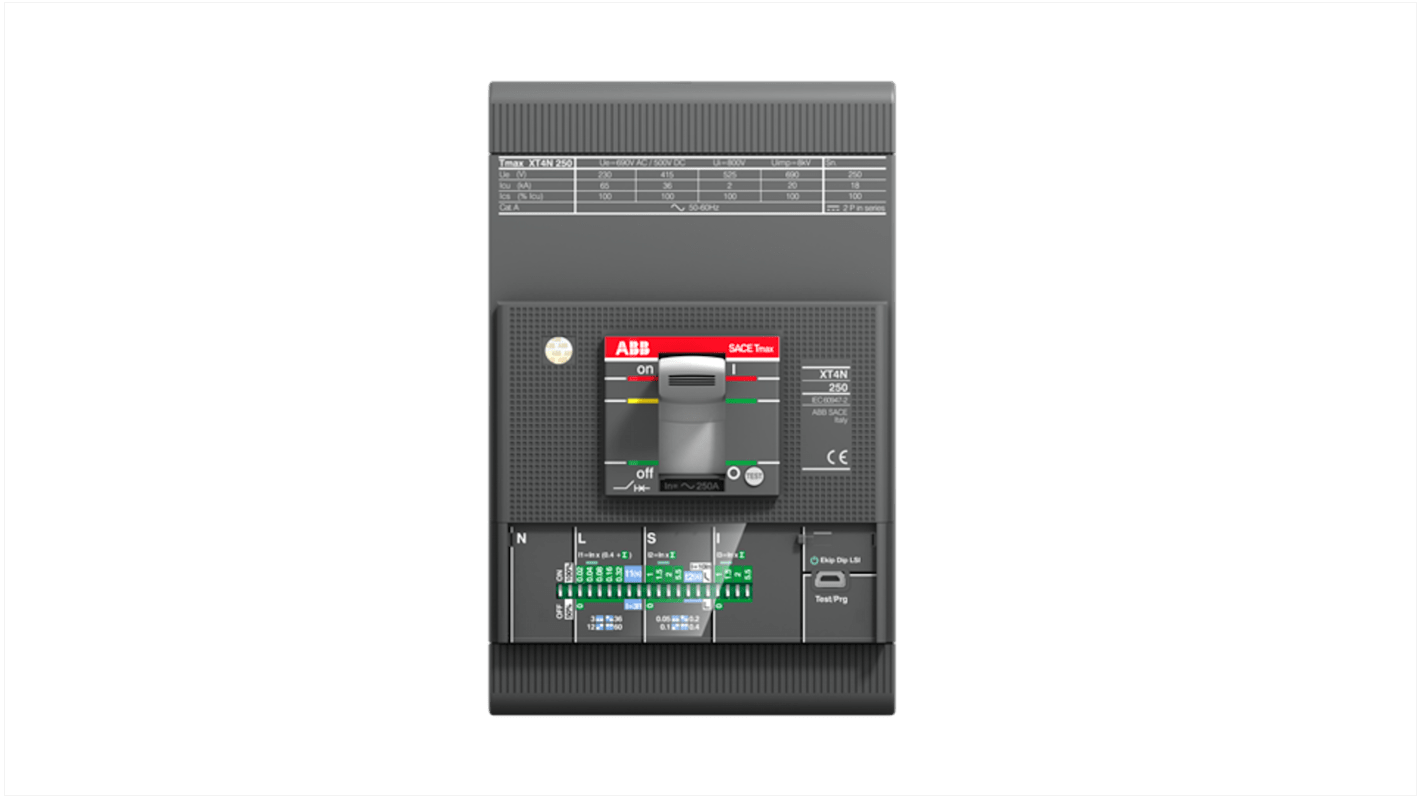

ABB, XT4S, 1SDA06 Molded Case Circuit Breaker 3-Pole 40 A, Breaking Capacity 85 kA, Fixed
- RS Stock No.:
- 236-6761
- Mfr. Part No.:
- 1SDA068471R1 XT4S 160 Ekip LS/I 40A FF
- Brand:
- ABB
Subtotal (1 unit)*
£673.68
(exc. VAT)
£808.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £673.68 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 236-6761
- Mfr. Part No.:
- 1SDA068471R1 XT4S 160 Ekip LS/I 40A FF
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Molded Case Circuit Breaker | |
| Range | XT4S | |
| Series | 1SDA06 | |
| Number of Poles | 3 | |
| Current Rating | 40 A | |
| Breaking Capacity | 85kA | |
| Rated AC Voltage | 690 V | |
| Mount Type | Fixed | |
| Terminal Type | Fixed | |
| Depth | 82.5mm | |
| Standards/Approvals | CE, IEC, RoHS | |
| Width | 105 mm | |
| Height | 160mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Solid State | |
| Reset Actuator Type | Lever | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Molded Case Circuit Breaker | ||
Range XT4S | ||
Series 1SDA06 | ||
Number of Poles 3 | ||
Current Rating 40 A | ||
Breaking Capacity 85kA | ||
Rated AC Voltage 690 V | ||
Mount Type Fixed | ||
Terminal Type Fixed | ||
Depth 82.5mm | ||
Standards/Approvals CE, IEC, RoHS | ||
Width 105 mm | ||
Height 160mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Solid State | ||
Reset Actuator Type Lever | ||
- COO (Country of Origin):
- IT
The ABB fixed circuit breaker has 3 pole and front terminals. It has 690 Vac rated operational voltage and 1000 V insulation voltage (Ui). This circuit breaker has solid state release in AC Ekip LS/I.
Short circuit performance level: S
Release Type EL
40 A rated current (In)
