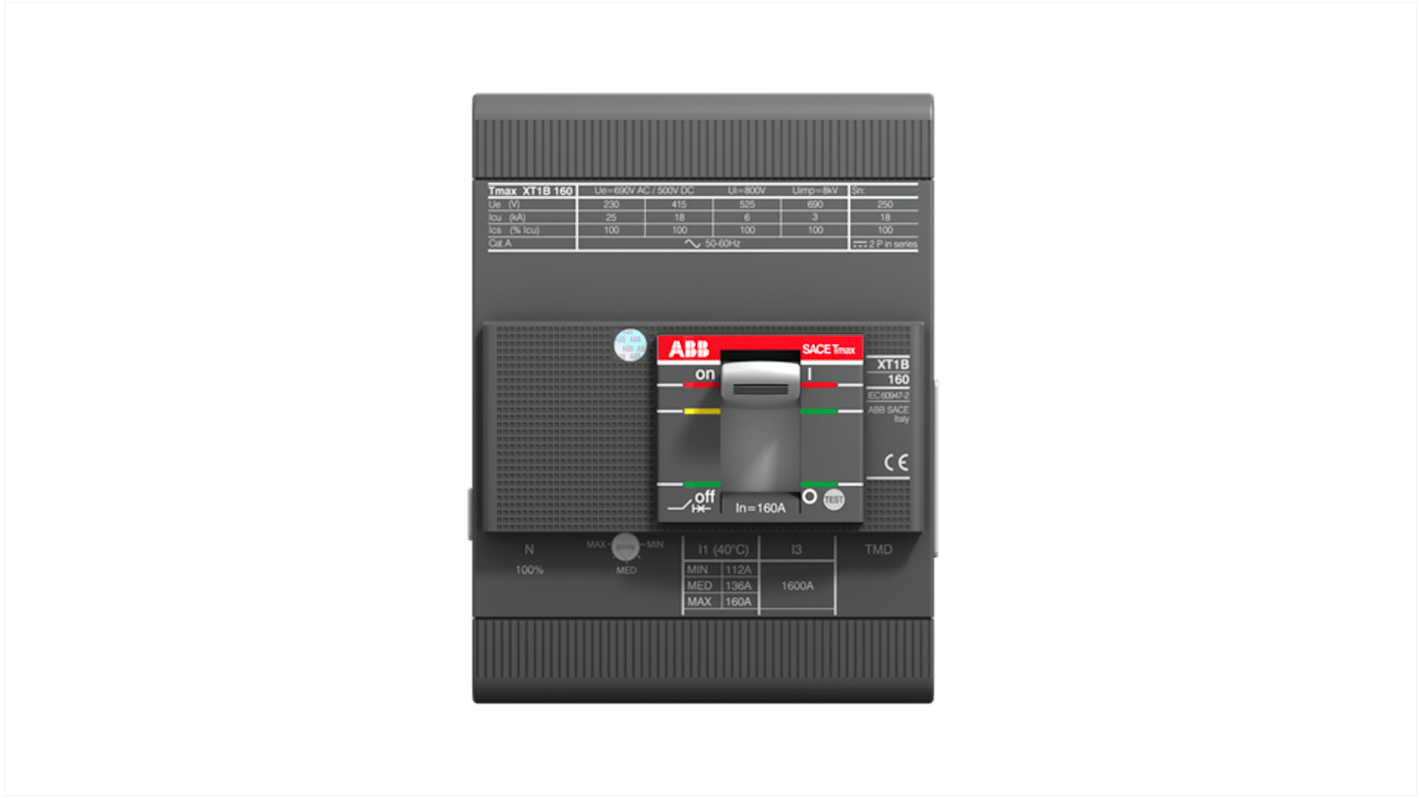

ABB, SACE Tmax XT MCCB Molded Case Circuit Breaker 4P 160A, Fixed Mount
- RS Stock No.:
- 232-0253
- Mfr. Part No.:
- 1SDA067410R1 XT1C 160 TMD 160A FF
- Brand:
- ABB
Subtotal (1 unit)*
£484.46
(exc. VAT)
£581.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £484.46 |
*price indicative
- RS Stock No.:
- 232-0253
- Mfr. Part No.:
- 1SDA067410R1 XT1C 160 TMD 160A FF
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | SACE Tmax XT | |
| Series | XT1C | |
| Number of Poles | 4 | |
| Current Rating | 160A | |
| Mounting Style | Fixed | |
Select all | ||
|---|---|---|
Brand ABB | ||
Range SACE Tmax XT | ||
Series XT1C | ||
Number of Poles 4 | ||
Current Rating 160A | ||
Mounting Style Fixed | ||
- COO (Country of Origin):
- IT
ABB XT1C Series Molded Case Circuit Breaker, 160A Current Rating, 40kA Breaking Capacity - 1SDA067410R1 XT1C 160 TMD 160A FF
This MCCB Molded Case Circuit Breaker is designed for exceptional performance in electrical systems. Featuring a fixed mounting style, it is suitable for various industrial applications while offering a robust design that balances durability with functionality. The device measures 70mm in length and depth, and 101.6mm in width, making it a compact addition to your electrical infrastructure.
Features & Benefits
• Four-pole design allows for flexible circuit configurations
• 160A current rating supports higher load demands
• High breaking capacity of 40kA ensures reliable protection
• Type C tripping characteristics suit inductive loads
• Toggle switch actuator enables easy resetting
• Bolt terminal contact type ensures secure connections
• 160A current rating supports higher load demands
• High breaking capacity of 40kA ensures reliable protection
• Type C tripping characteristics suit inductive loads
• Toggle switch actuator enables easy resetting
• Bolt terminal contact type ensures secure connections
Applications
• Used with heavy machinery in industrial environments
• Suitable for power distribution in automation systems
• Employed in commercial buildings for electrical safety
• Ideal for requiring reliable load protection
• Suitable for power distribution in automation systems
• Employed in commercial buildings for electrical safety
• Ideal for requiring reliable load protection
What are the key advantages of using this type of circuit breaker in industrial settings?
The four-pole configuration facilitates complex wiring setups, and the high breaking capacity effectively protects against overloads, enhancing safety in high-demand environments.
How does the toggle switch actuator contribute to operational efficiency?
The toggle switch actuator allows for simple and quick resets after a trip, reducing downtime and ensuring operations can resume swiftly after any interruptions.
What should be considered when selecting a circuit breaker for electrical projects?
Consider compatibility with existing systems, required current ratings, and the types of loads being managed to ensure the circuit breaker meets all operational requirements effectively.
