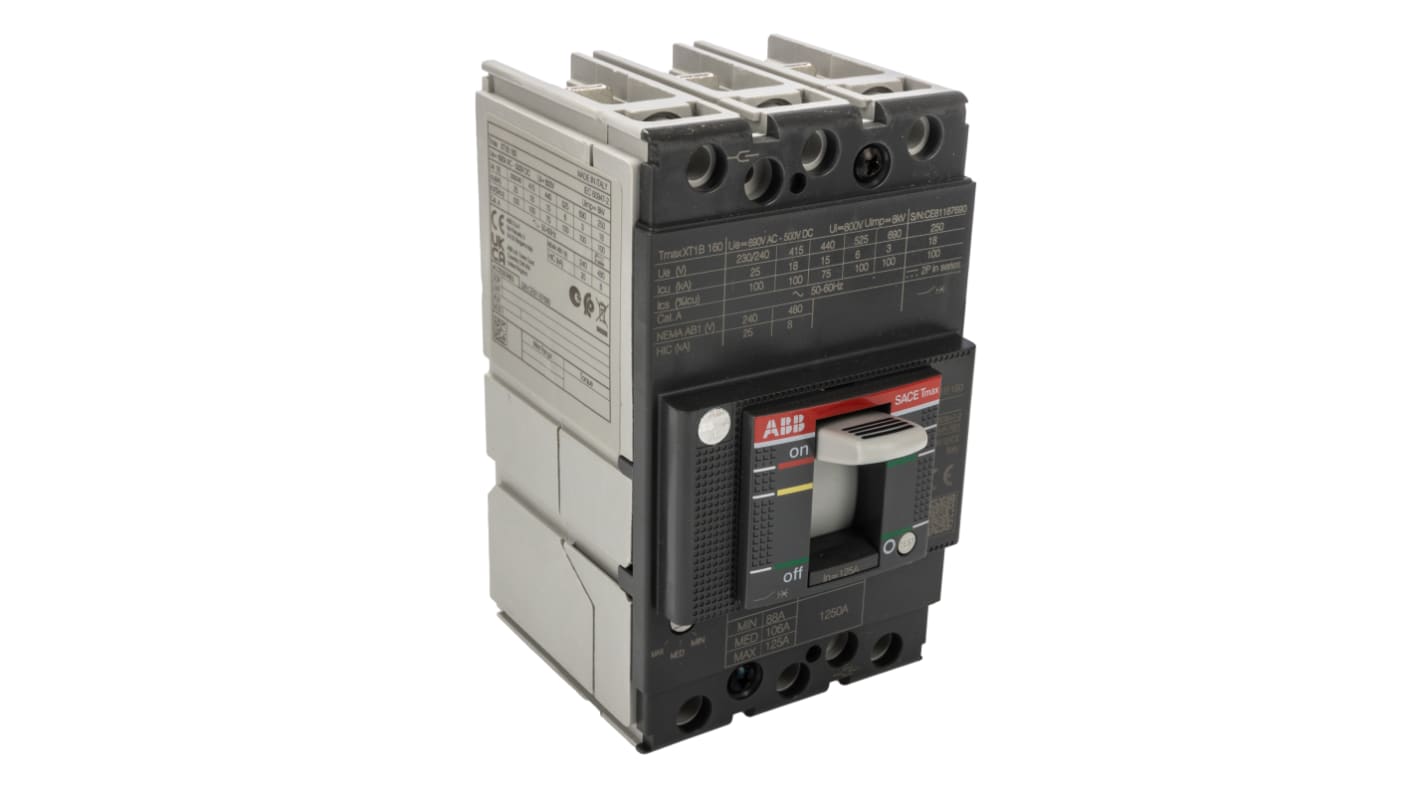

ABB, SACE Tmax XT MCCB Molded Case Circuit Breaker 3P 125A, Breaking Capacity 18 kA, Fixed Mount
- RS Stock No.:
- 232-0217
- Mfr. Part No.:
- 1SDA066808R1 XT1B 160 TMD 125A FF
- Brand:
- ABB
Subtotal (1 unit)*
£255.36
(exc. VAT)
£306.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £255.36 |
*price indicative
- RS Stock No.:
- 232-0217
- Mfr. Part No.:
- 1SDA066808R1 XT1B 160 TMD 125A FF
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Range | SACE Tmax XT | |
| Series | XT1B | |
| Number of Poles | 3 | |
| Current Rating | 125A | |
| Breaking Capacity at Maximum Voltage Rating | 18 kA | |
| Rated AC Voltage | 690V | |
| Rated DC Voltage | 500V | |
| Mounting Style | Fixed | |
| Length | 70mm | |
| Width | 76.2mm | |
| Depth | 130mm | |
| Circuit Breaker Type | MCCB | |
| Terminal Contact Type | Bolt | |
Select all | ||
|---|---|---|
Brand ABB | ||
Range SACE Tmax XT | ||
Series XT1B | ||
Number of Poles 3 | ||
Current Rating 125A | ||
Breaking Capacity at Maximum Voltage Rating 18 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Mounting Style Fixed | ||
Length 70mm | ||
Width 76.2mm | ||
Depth 130mm | ||
Circuit Breaker Type MCCB | ||
Terminal Contact Type Bolt | ||
- COO (Country of Origin):
- IT
ABB MCCB, Fixed Mounting, Thermomagnetic Release - XT1B Series - 1SDA066808R1 XT1B 160 TMD 125A FF
Are short circuits and overcurrents regularly tripping up your industrial equipment's performance? Install this moulded case circuit breaker from ABB. To protect your system and limit service disruptions, it automatically disconnects the power when it detects inrush currents of more than 125A. As it resists impact and vibration, you can use it with shaky machinery without risking random disconnections. This multi-pole component can accommodate up to three circuits to simplify your setup. A rated operational voltage of 690V AC/500V DC makes it a handy bit of kit to boost safety in demanding applications.
Features & Benefits
• Measures just 70 (L) x 76.2 (W) x 130mm (H) for an easy fit in limited spaces
• Tough plastic casing insulates live components for reliable electrical safety
• Front-facing terminals make wiring a cinch
• Tough plastic casing insulates live components for reliable electrical safety
• Front-facing terminals make wiring a cinch
Applications
• Power plants
• Industrial control panels
• Telecommunications networks
• Vehicle manufacture
• Industrial control panels
• Telecommunications networks
• Vehicle manufacture
Can I adjust the current values of this MCCB moulded case circuit breaker?
Yes, it's a flexible device with adjustable current settings between 87.5 and 125A. This means you can set it according to the demands of your application.
