- RS Stock No.:
- 209-7057
- Mfr. Part No.:
- 3VA2063-6HL42-0AA0
- Brand:
- Siemens
Available to back order for despatch 24/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£544.14
(exc. VAT)
£652.97
(inc. VAT)
Units | Per unit |
---|---|
1 + | £544.14 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-7057
- Mfr. Part No.:
- 3VA2063-6HL42-0AA0
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

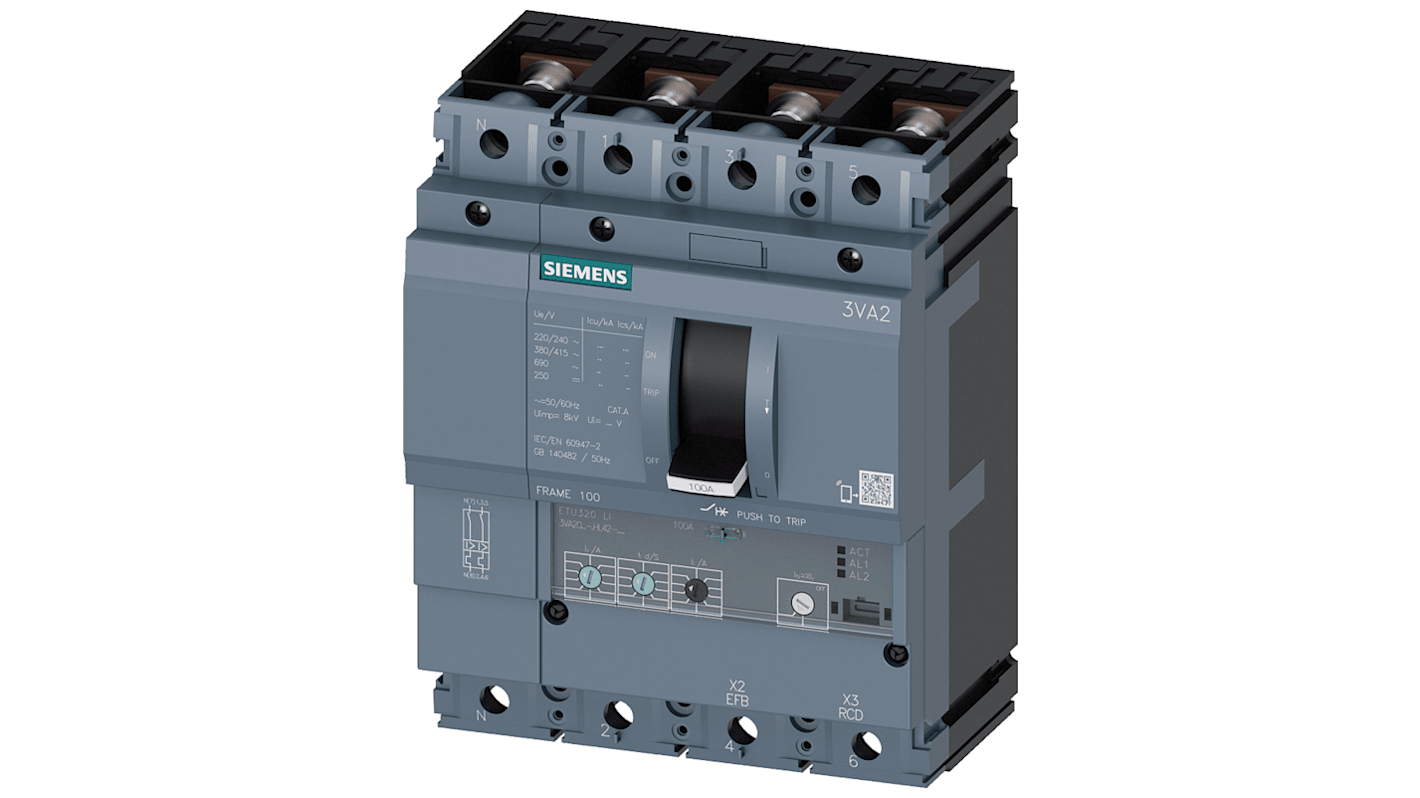

The Siemens 3VA molded case circuit breakers are cost-effective power distribution products with line protection ETU320, LI, In=63A overload protection Ir=25A...63A short-circuit protection Ii=1.5...12 x In N conductor protection adjustable (OFF, 100%) nut keeper kit 3VA2 molded-case circuit breaker with 3-series ETU for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit.
Compact design
Available as version for plant protection
Series has a solid-state overcurrent trip unit
Can be installed fixed, in plug-in design or as withdrawable version
Available as version for plant protection
Series has a solid-state overcurrent trip unit
Can be installed fixed, in plug-in design or as withdrawable version
Specifications
Attribute | Value |
---|---|
Range | SENTRON |
Series | 3VA2 |
Number of Poles | 4 |
Current Rating | 63A |
Breaking Capacity at Maximum Voltage Rating | 85 kA |
Rated AC Voltage | 690V |
Length | 140mm |
Width | 86mm |
Depth | 181mm |
Better World Claim | Extended product life |
Better World Product | Yes |
Circuit Breaker Type | MCCB |
Tripping Characteristics | Type H |
