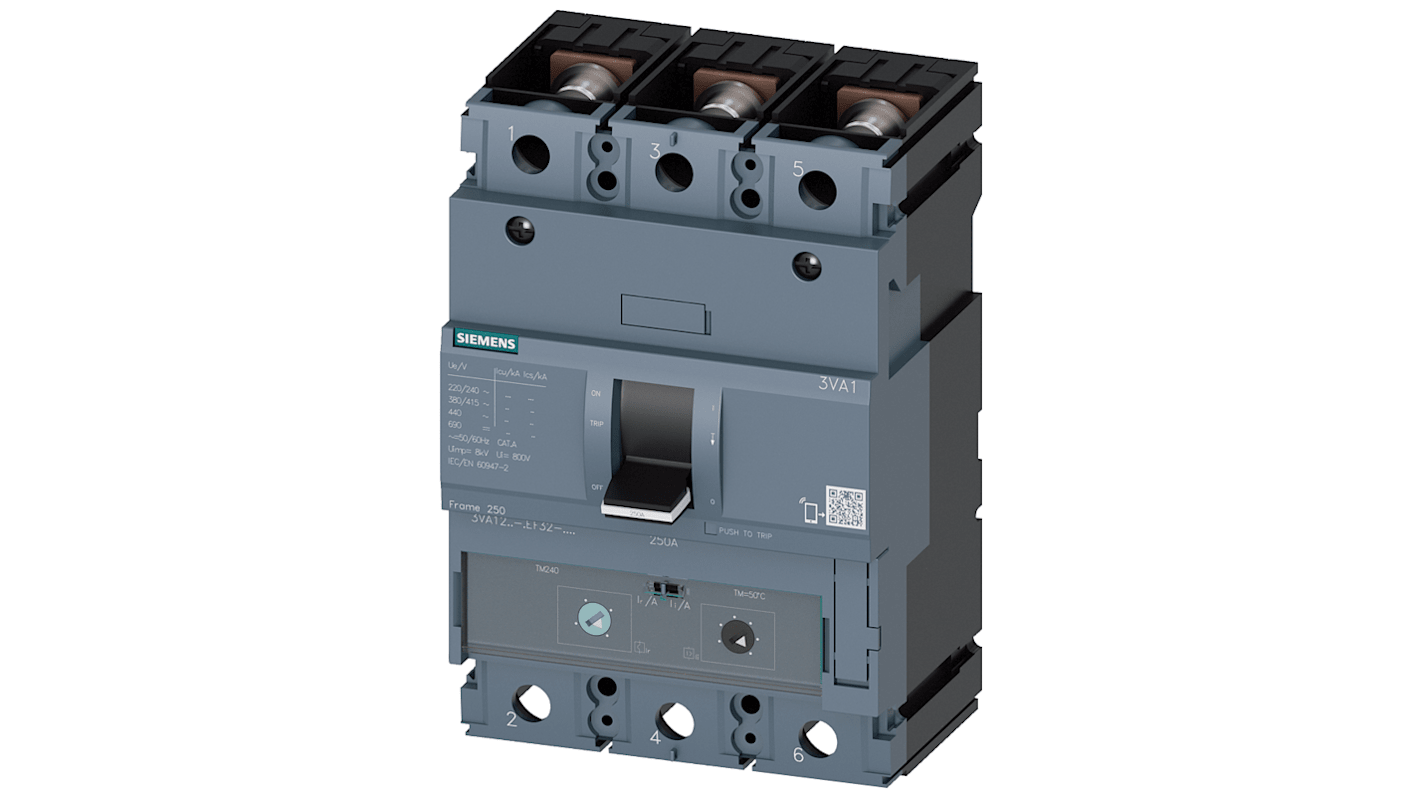

Siemens, SENTRON MCCB 3P 160A, Breaking Capacity 55 kA
- RS Stock No.:
- 209-7028
- Mfr. Part No.:
- 3VA1216-5EF32-0AA0
- Brand:
- Siemens
Available to back order for despatch 29/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£581.62
(exc. VAT)
£697.94
(inc. VAT)
Units | Per unit |
---|---|
1 + | £581.62 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-7028
- Mfr. Part No.:
- 3VA1216-5EF32-0AA0
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
The Siemens 3VA1 molded case circuit breakers are cost-effective power distribution products. Extremely flexible designed to protect personnel and material assets.3VA1 molded-case circuit breaker for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available.
Compact design
Available as version for plant protection
The series has a thermo-magnetic trip unit
Fixed and plug-in installation possible
Available as version for plant protection
The series has a thermo-magnetic trip unit
Fixed and plug-in installation possible
Specifications
Attribute | Value |
---|---|
Range | SENTRON |
Series | 3VA1 |
Number of Poles | 3 |
Current Rating | 160A |
Breaking Capacity at Maximum Voltage Rating | 55 kA |
Rated AC Voltage | 690V |
Rated DC Voltage | 500V |
Length | 105mm |
Width | 70mm |
Depth | 158mm |
Better World Claim | Extended product life, Saves energy |
Better World Product | Yes |
Circuit Breaker Type | MCCB |
Tripping Characteristics | Type M |
