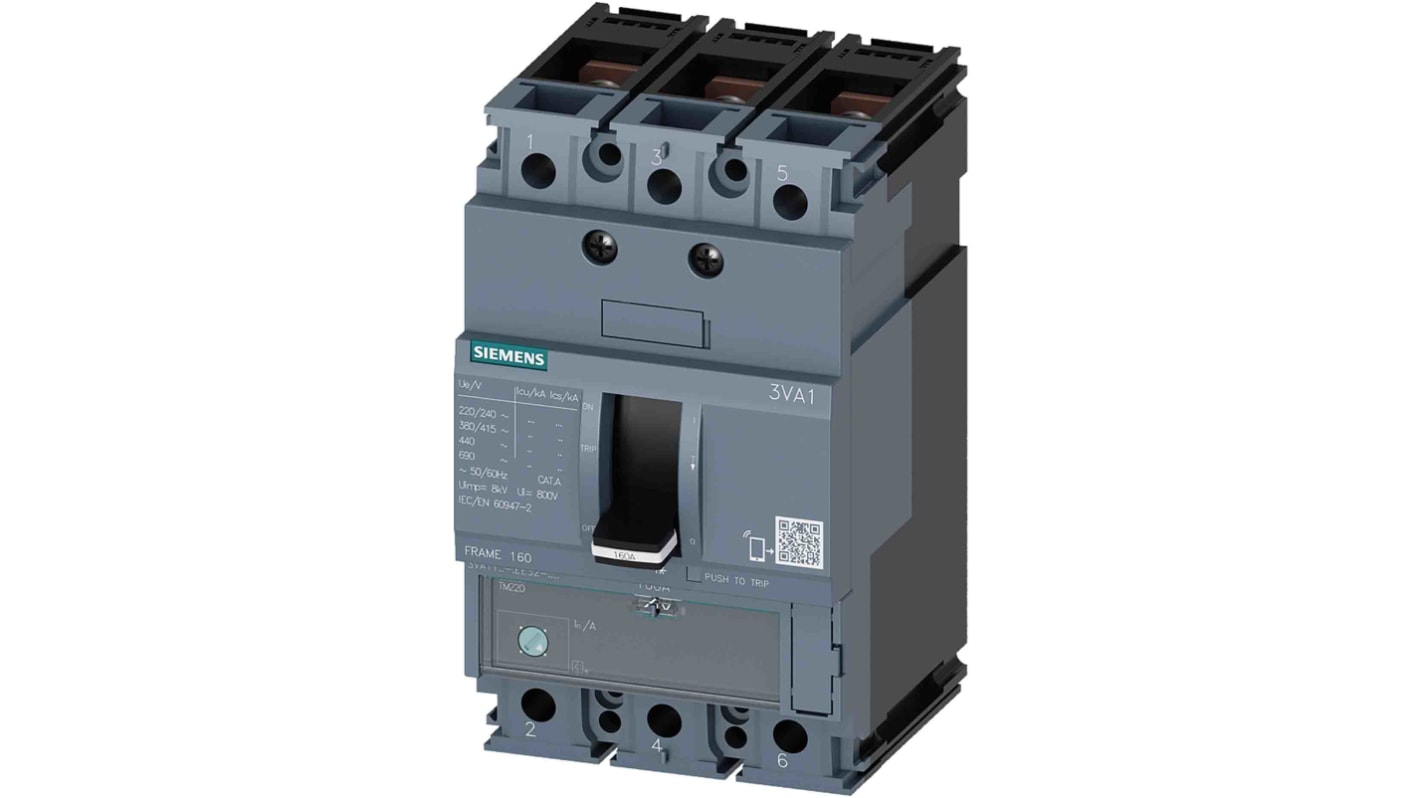

Siemens, SENTRON, 3VA1 Molded Case Circuit Breaker 3-Pole 40 A, Breaking Capacity 36 kA
- RS Stock No.:
- 209-6815
- Mfr. Part No.:
- 3VA1140-4EE32-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£190.79
(exc. VAT)
£228.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £190.79 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6815
- Mfr. Part No.:
- 3VA1140-4EE32-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Molded Case Circuit Breaker | |
| Range | SENTRON | |
| Series | 3VA1 | |
| Number of Poles | 3 | |
| Current Rating | 40 A | |
| Breaking Capacity | 36kA | |
| Rated AC Voltage | 690 V | |
| Rated DC Voltage | 500 V | |
| Width | 70 mm | |
| Height | 130mm | |
| Depth | 130mm | |
| Standards/Approvals | VDE, RoHS, IEC, CCC, CE, EAC, EN | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Tripping Mechanism | Thermal Magnetic | |
| Tripping Characteristics | Type S | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Molded Case Circuit Breaker | ||
Range SENTRON | ||
Series 3VA1 | ||
Number of Poles 3 | ||
Current Rating 40 A | ||
Breaking Capacity 36kA | ||
Rated AC Voltage 690 V | ||
Rated DC Voltage 500 V | ||
Width 70 mm | ||
Height 130mm | ||
Depth 130mm | ||
Standards/Approvals VDE, RoHS, IEC, CCC, CE, EAC, EN | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
Tripping Mechanism Thermal Magnetic | ||
Tripping Characteristics Type S | ||
- COO (Country of Origin):
- CZ
The Siemens circuit breaker 3VA1 IEC frame, ATFM is molded-case circuit breaker for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers.
Fixed and Plug-in-installation possible.
Modular and easy-to-fit internal accessories with wide range of functions.
Suitable for AC&DC applications.
Compact design.
