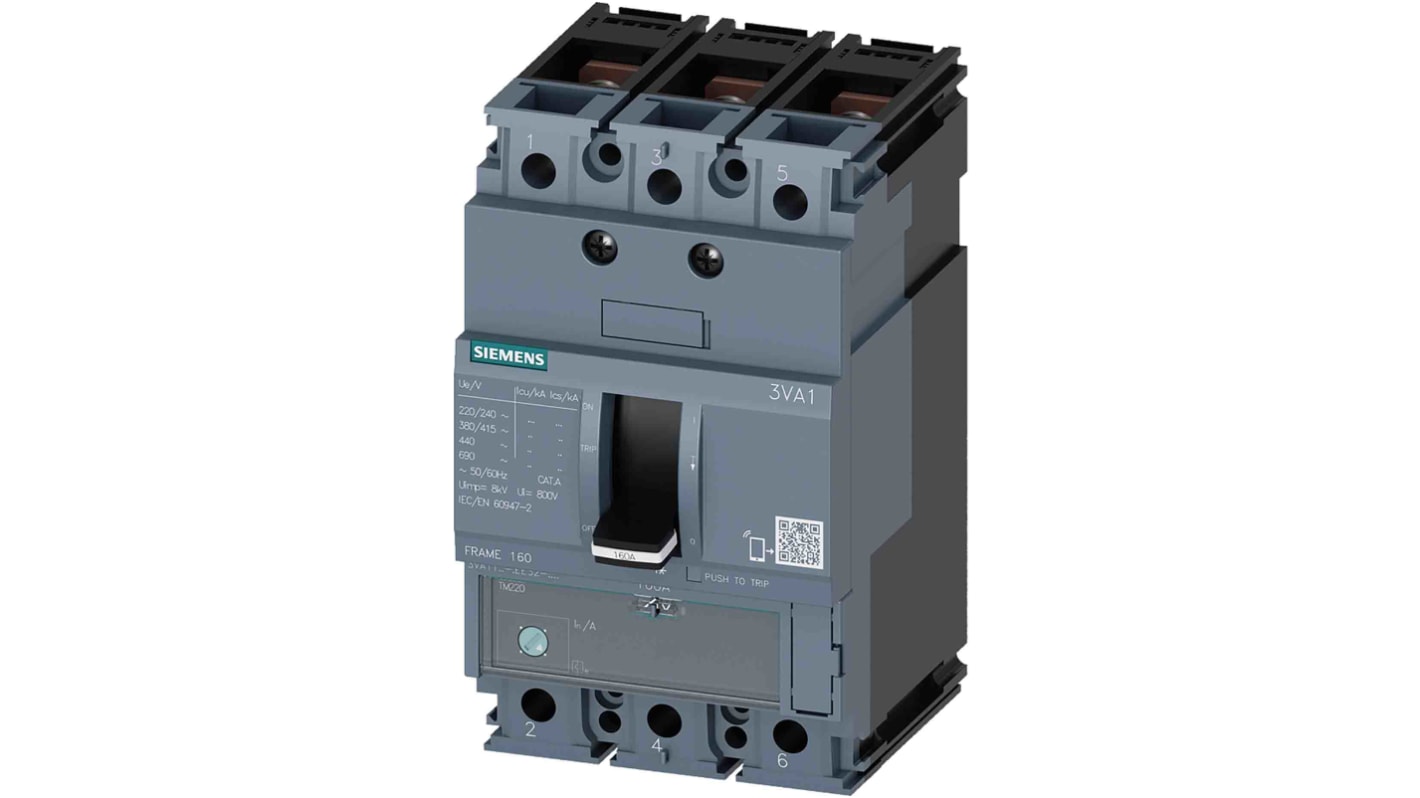

Siemens, SENTRON MCCB 3P 32A, Breaking Capacity 70 kA
- RS Stock No.:
- 209-6808
- Mfr. Part No.:
- 3VA1132-6EE32-0AA0
- Brand:
- Siemens
Available to back order for despatch 26/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£214.85
(exc. VAT)
£257.82
(inc. VAT)
Units | Per unit |
---|---|
1 + | £214.85 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6808
- Mfr. Part No.:
- 3VA1132-6EE32-0AA0
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
The Siemens circuit breaker 3VA1 IEC frame, ATFM is molded-case circuit breaker for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers.
Fixed and Plug-in-installation possible.
Modular and easy-to-fit internal accessories with wide range of functions.
Suitable for AC&DC applications.
Compact design.
Modular and easy-to-fit internal accessories with wide range of functions.
Suitable for AC&DC applications.
Compact design.
Specifications
Attribute | Value |
---|---|
Range | SENTRON |
Series | 3VA1 |
Number of Poles | 3 |
Current Rating | 32A |
Breaking Capacity at Maximum Voltage Rating | 70 kA |
Rated AC Voltage | 690V |
Rated DC Voltage | 500V |
Length | 76.2mm |
Width | 70mm |
Depth | 130mm |
Better World Claim | Extended product life, Saves energy |
Better World Product | Yes |
Tripping Characteristics | Type H |
Circuit Breaker Type | MCCB |
