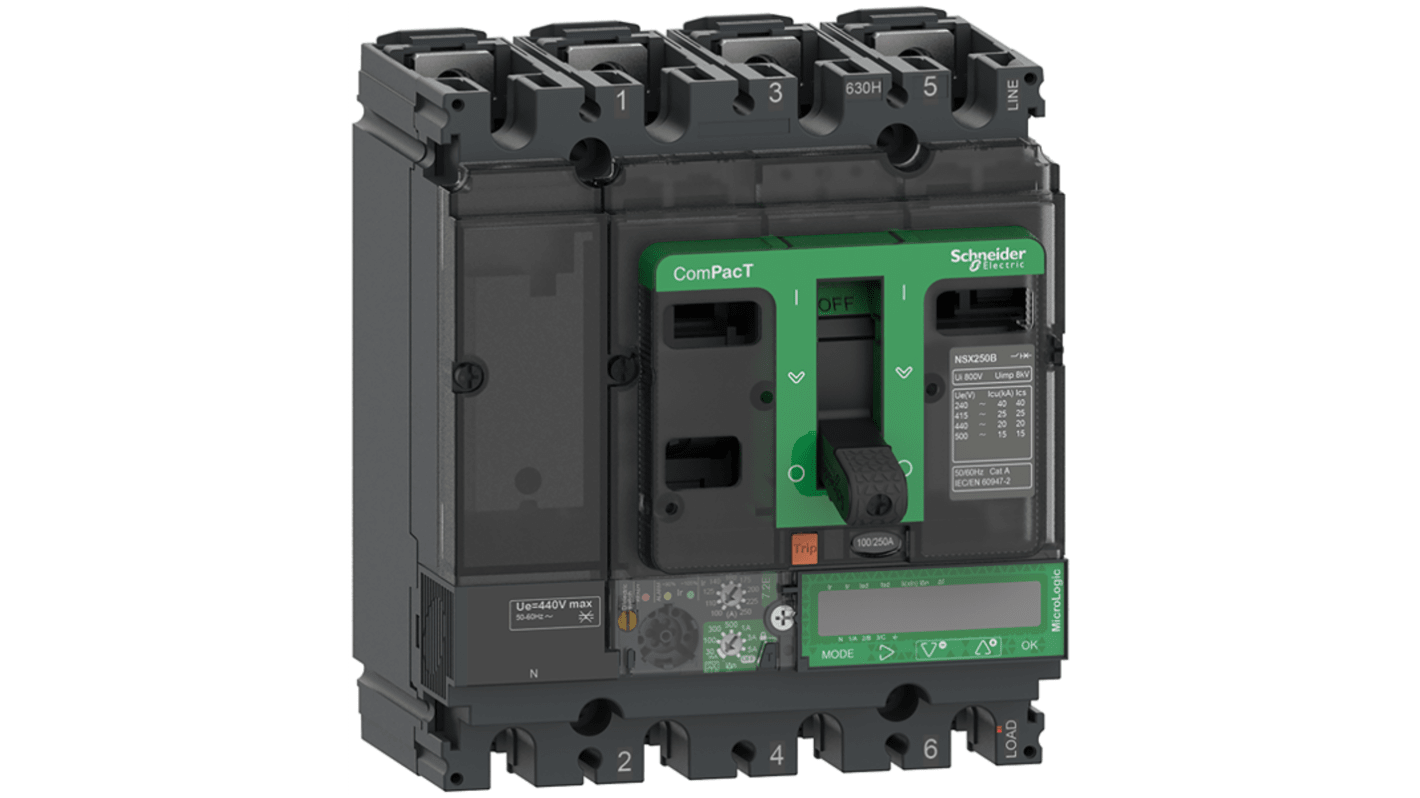

Schneider Electric, ComPact, C10 Molded Case Circuit Breaker 4-Pole 100 A, Breaking Capacity 10 kA, Fixed
- RS Stock No.:
- 347-088
- Mfr. Part No.:
- C10N47E100
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£3,793.04
(exc. VAT)
£4,551.65
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,793.04 |
*price indicative
- RS Stock No.:
- 347-088
- Mfr. Part No.:
- C10N47E100
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | ComPact | |
| Series | C10 | |
| Number of Poles | 4 | |
| Current Rating | 100 A | |
| Breaking Capacity | 10kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 440 V ac | |
| Width | 140 mm | |
| Height | 161mm | |
| Depth | 86mm | |
| Standards/Approvals | EN/CEI 60947-2 | |
| Tripping Mechanism | Electronic | |
| Tripping Characteristics | LSIR | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range ComPact | ||
Series C10 | ||
Number of Poles 4 | ||
Current Rating 100 A | ||
Breaking Capacity 10kA | ||
Mount Type Fixed | ||
Rated AC Voltage 440 V ac | ||
Width 140 mm | ||
Height 161mm | ||
Depth 86mm | ||
Standards/Approvals EN/CEI 60947-2 | ||
Tripping Mechanism Electronic | ||
Tripping Characteristics LSIR | ||
- COO (Country of Origin):
- PL
The Schneider Electric Circuit Breaker is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity is 50kA rms at 415VAC 50 or 60 Hz. This product embeds a 100A rating electronic MicroLogic 7.2 E Vigi trip unit, with an integrated adjustable earth leakage protection. MicroLogic 7.2 E Vigi trip unit provides adjustable long time, short time and instantaneous protection.
RoHS compliant
Estimated 40 percent reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front plate design
Ergonomic new toggle for easier breaker manual operation
