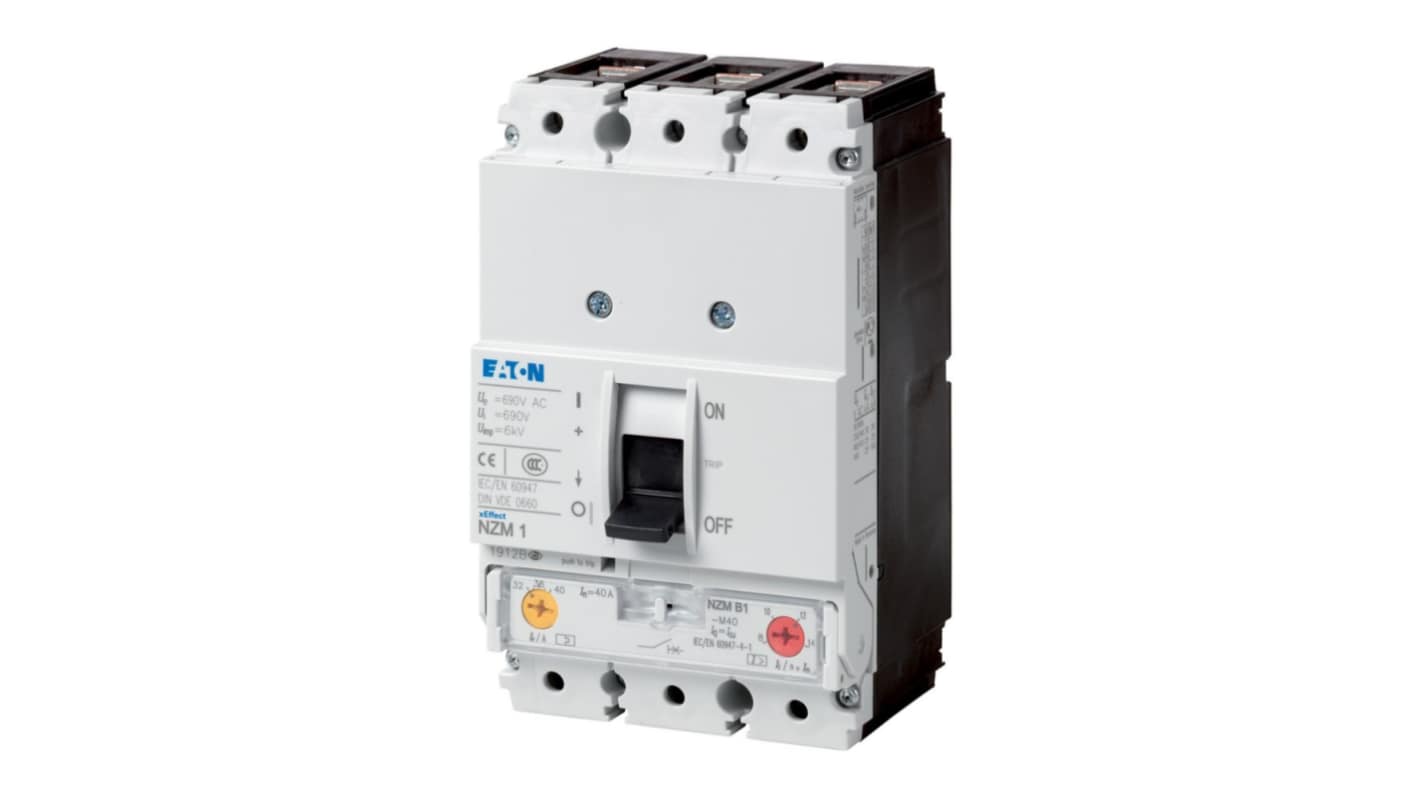

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 100 A, Breaking Capacity 4 kA, Fixed
- RS Stock No.:
- 259-068
- Mfr. Part No.:
- 271402 NZMC1-M100
- Brand:
- Eaton
Subtotal (1 unit)*
£524.50
(exc. VAT)
£629.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £524.50 |
*price indicative
- RS Stock No.:
- 259-068
- Mfr. Part No.:
- 271402 NZMC1-M100
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 100 A | |
| Breaking Capacity | 4kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Mount Hole Size | M4 | |
| Terminal Type | Box | |
| Width | 90 mm | |
| Height | 145mm | |
| Depth | 88mm | |
| Standards/Approvals | IP20, IP40, IP66, VDE 0106 Part 110, RoHS, DIN EN 50274, IEC 60068-2-30, IEC 60068-2-78, IEC/EN 60947-2 | |
| Reset Actuator Type | Rocker Lever | |
| Tripping Characteristics | Thermomagnetic | |
| Break Time | 10 ms | |
| Tripping Mechanism | Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 100 A | ||
Breaking Capacity 4kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Mount Hole Size M4 | ||
Terminal Type Box | ||
Width 90 mm | ||
Height 145mm | ||
Depth 88mm | ||
Standards/Approvals IP20, IP40, IP66, VDE 0106 Part 110, RoHS, DIN EN 50274, IEC 60068-2-30, IEC 60068-2-78, IEC/EN 60947-2 | ||
Reset Actuator Type Rocker Lever | ||
Tripping Characteristics Thermomagnetic | ||
Break Time 10 ms | ||
Tripping Mechanism Thermomagnetic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton molded case circuit breaker from The Eaton Moeller series NZM combines advanced technology with robust design, ideal for demanding electrical applications. Engineered for superior performance, this circuit breaker effortlessly manages fluctuations in electrical load, ensuring the safety and continuity of your power systems. With its thermomagnetic mechanism, it provides reliable protection against overcurrents and short circuits, making it a vital component in both commercial and industrial settings. Its compact dimensions allow for seamless integration into electrical panels, whilst its high breaking capacity assures optimal protection even in fault conditions. This circuit breaker is tailored to meet stringent compliance standards, ensuring peace of mind for users who prioritise safety and efficiency in their electrical systems.
Designed for effective protection in electrical installations
Thermomagnetic release offers dual protection against overcurrent
High breaking capacity guarantees safety during fault conditions
Compact design enhances installation flexibility in various applications
Robust construction for reliability in challenging environments
Easy integration with existing electrical systems
Meets rigorous global compliance standards
