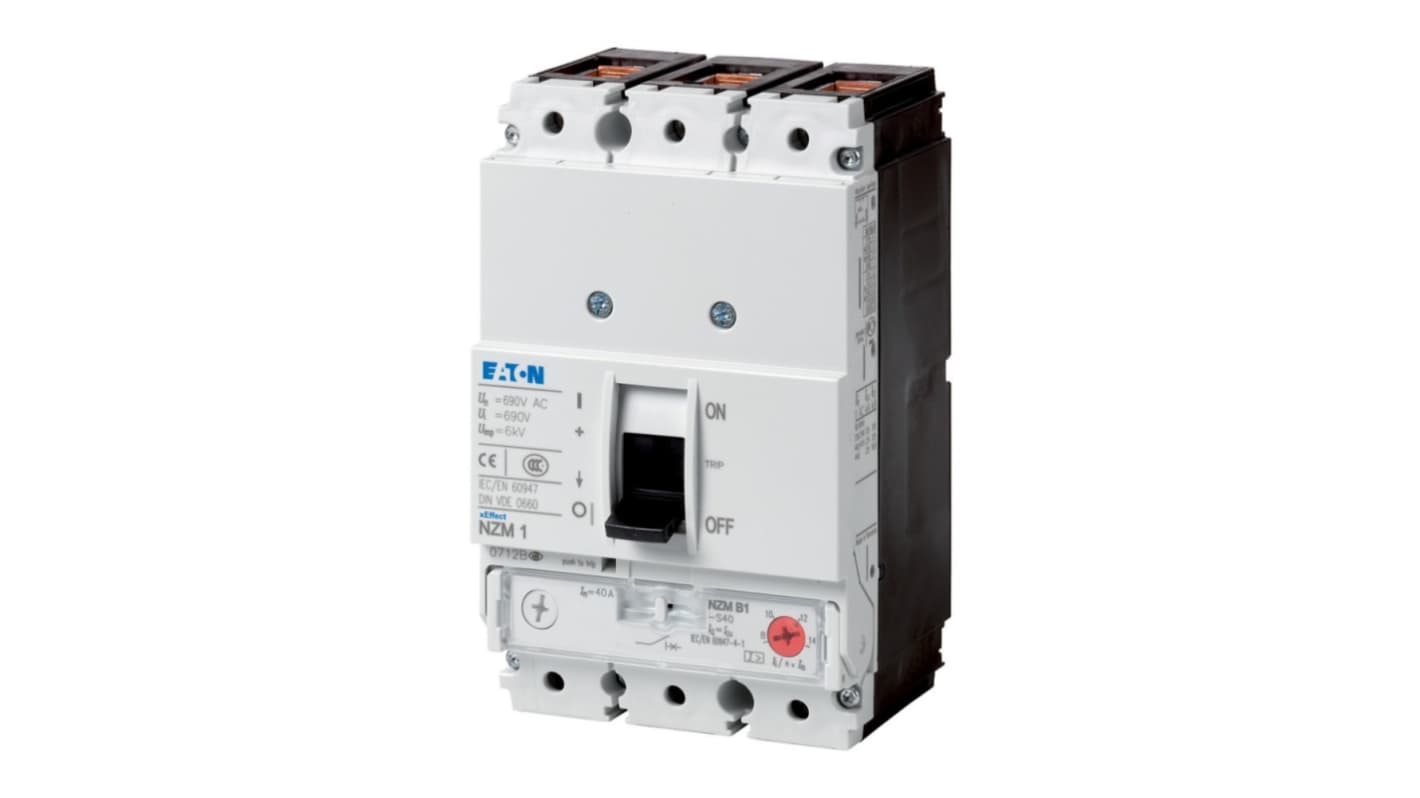

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 80 A, Breaking Capacity 7.5 kA, Fixed
- RS Stock No.:
- 258-074
- Mfr. Part No.:
- 281279 NZMN1-S80-CNA
- Brand:
- Eaton
Subtotal (1 unit)*
£552.57
(exc. VAT)
£663.08
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £552.57 |
*price indicative
- RS Stock No.:
- 258-074
- Mfr. Part No.:
- 281279 NZMN1-S80-CNA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Range | NZM | |
| Product Type | Molded Case Circuit Breaker | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 80 A | |
| Breaking Capacity | 7.5kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Depth | 88mm | |
| Height | 165.5mm | |
| Width | 90 mm | |
| Standards/Approvals | CE, IEC/EN 60947, UL (File No. E31593), CSA-C22.2 No. 5-09, UL/CSA, UL Listed, CSA (File No. 22086), IEC Specially designed for North America, IEC 60947-2 UL (Category Control Number DKPU2), CSA, CSA (Class No. 1432-01), UL 489 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Range NZM | ||
Product Type Molded Case Circuit Breaker | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 80 A | ||
Breaking Capacity 7.5kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Depth 88mm | ||
Height 165.5mm | ||
Width 90 mm | ||
Standards/Approvals CE, IEC/EN 60947, UL (File No. E31593), CSA-C22.2 No. 5-09, UL/CSA, UL Listed, CSA (File No. 22086), IEC Specially designed for North America, IEC 60947-2 UL (Category Control Number DKPU2), CSA, CSA (Class No. 1432-01), UL 489 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton molded case circuit breaker from Eaton Moeller series NZM is designed to provide exceptional performance and reliability in electrical distribution systems. With its robust construction, this circuit breaker ensures safe operation across various applications, making it ideal for both industrial and commercial environments. This circuit breaker offers a rated current of 80 A and an impressive breaking capacity, addressing the demanding requirements of modern electrical installations. Its compact dimensions allow for easy installation in confined spaces, while its user-friendly design enhances accessibility for maintenance. The combination of advanced features, including thermal and magnetic protection, ensure consistent and safe operation, while its compliance with international standards guarantees quality assurance.
Designed specifically for North American applications
Supports installation in unearthed supply systems up to 690 V
Maximum back-up fuse accommodates higher short-circuit currents
Thermal-magnetic release system provides reliable operation
Multiple compliance certifications ensure regulatory adherence
Built-in shock resistance offers enhanced durability
IP40 rated for front side protection, ensuring safety against accidental contact
Extensive terminal capacities allow versatile connections
Integrated short-circuit protection enhances system reliability
Engineered for mechanical durability with a lifespan of 20,000 operations
