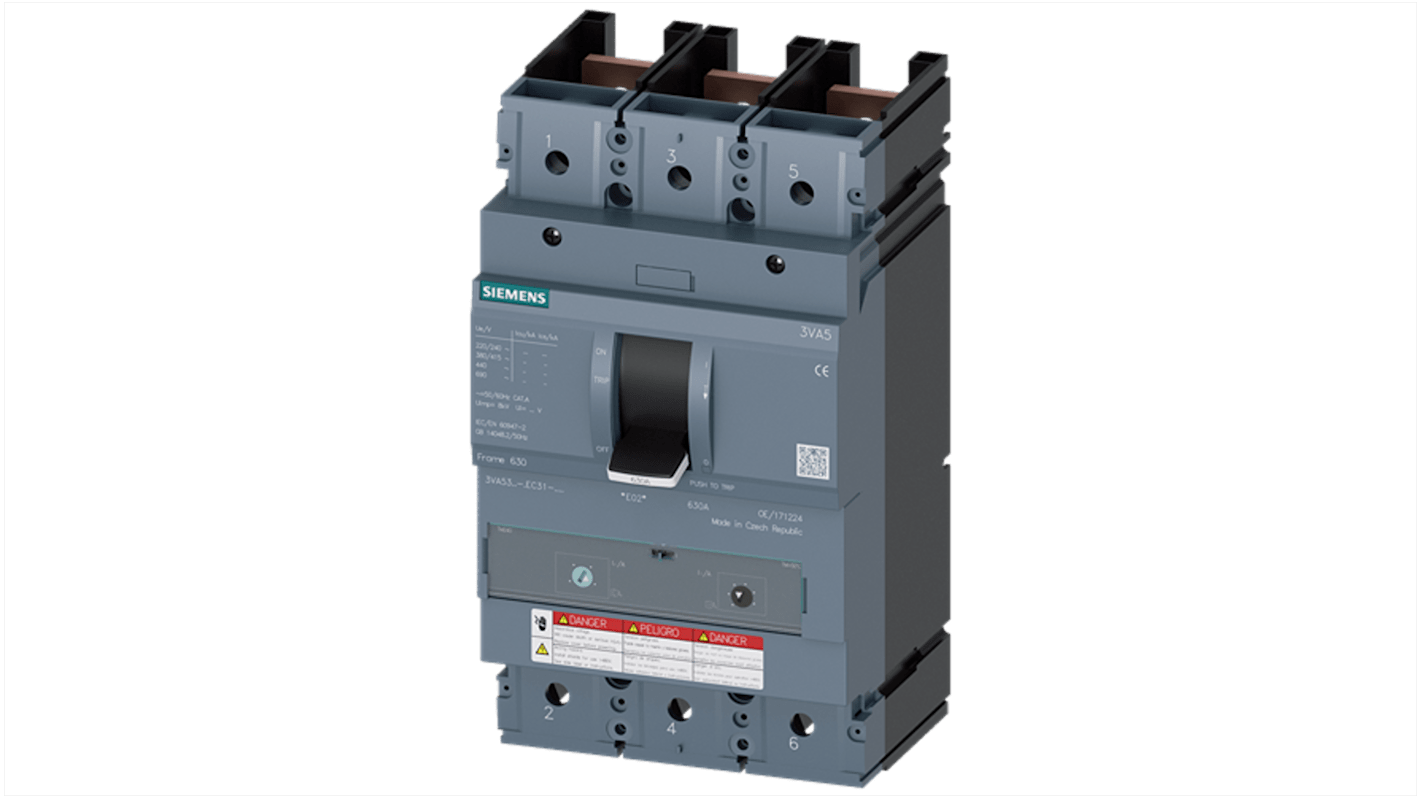

Siemens, SENTRON, 3VA5 Molded Case Circuit Breaker 3-Pole 225 A, Breaking Capacity 35 kA, Fixed
- RS Stock No.:
- 257-454
- Mfr. Part No.:
- 3VA5322-5EC31-2AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,089.59
(exc. VAT)
£1,307.51
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,089.59 |
*price indicative
- RS Stock No.:
- 257-454
- Mfr. Part No.:
- 3VA5322-5EC31-2AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Molded Case Circuit Breaker | |
| Range | SENTRON | |
| Series | 3VA5 | |
| Number of Poles | 3 | |
| Current Rating | 225 A | |
| Breaking Capacity | 35kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 690 V ac | |
| Rated DC Voltage | 500 V dc | |
| Terminal Type | Without | |
| Standards/Approvals | ABS, CE, EAC, RCM, UKCA, UL | |
| Height | 248mm | |
| Depth | 110mm | |
| Width | 138 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Tripping Characteristics | Type M | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Molded Case Circuit Breaker | ||
Range SENTRON | ||
Series 3VA5 | ||
Number of Poles 3 | ||
Current Rating 225 A | ||
Breaking Capacity 35kA | ||
Mount Type Fixed | ||
Rated AC Voltage 690 V ac | ||
Rated DC Voltage 500 V dc | ||
Terminal Type Without | ||
Standards/Approvals ABS, CE, EAC, RCM, UKCA, UL | ||
Height 248mm | ||
Depth 110mm | ||
Width 138 mm | ||
Tripping Mechanism Thermal Magnetic | ||
Tripping Characteristics Type M | ||
- COO (Country of Origin):
- CZ
The Siemens Molded Case Circuit Breaker is an exceptional solution designed to provide reliable protection for electrical circuits. Built to accommodate loads of up to 225 A, this breaker is ideal for industrial applications. Its robust design features a 35 kA breaking capacity at 480 V, ensuring optimal performance even in demanding environments. With functionality that includes standard overload and short circuit protection, the circuit breaker guarantees safety and longevity.
Capable of handling substantial current loads
Compact dimensions for versatile installation options
Compatible with a wide operational voltage range
Meets stringent safety standards for industrial environments
Facilitates easy maintenance with accessible components
Optimized for high performance in demanding conditions
