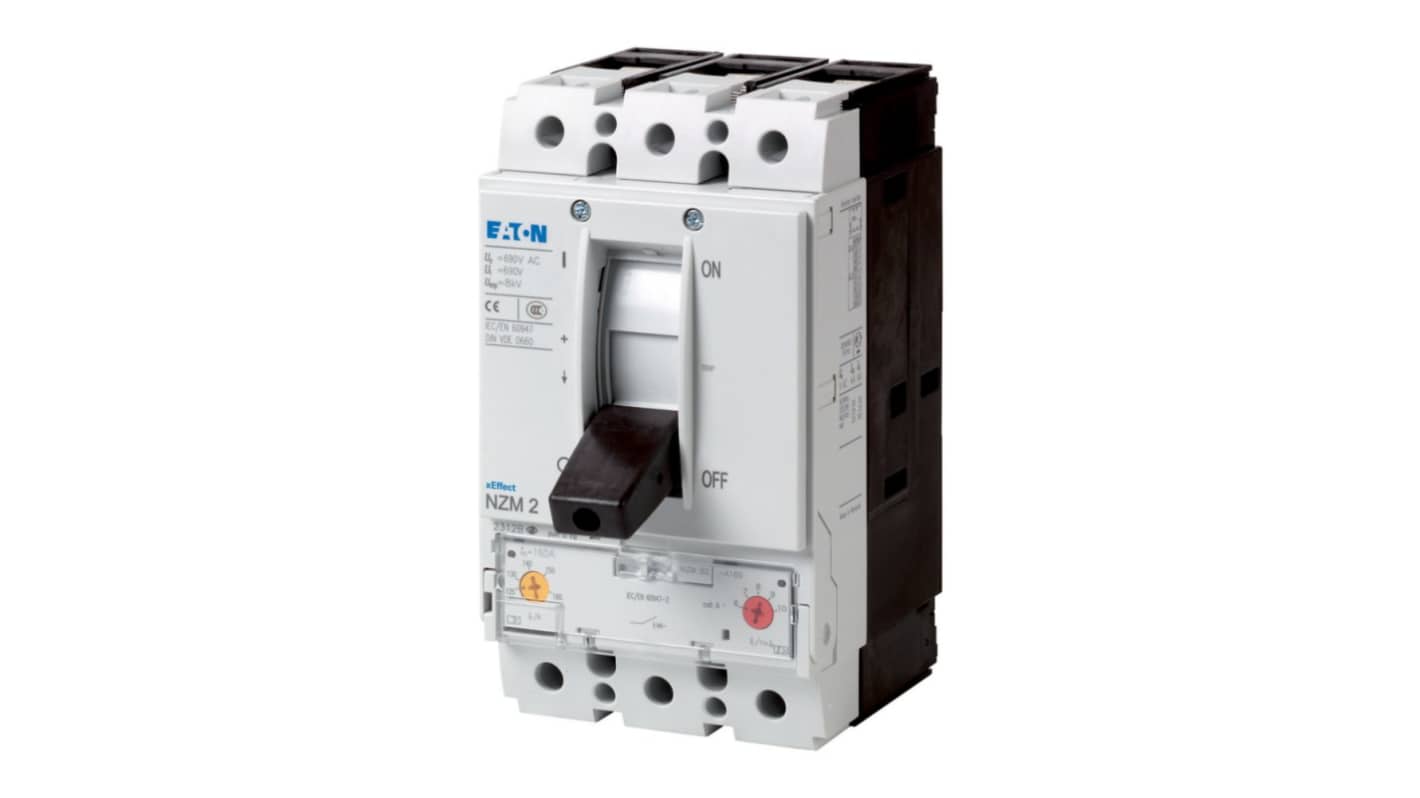

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 50 A, Breaking Capacity 15 kA, Fixed
- RS Stock No.:
- 255-696
- Mfr. Part No.:
- 259096 NZMH2-A50
- Brand:
- Eaton
Subtotal (1 unit)*
£534.50
(exc. VAT)
£641.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £534.50 |
*price indicative
- RS Stock No.:
- 255-696
- Mfr. Part No.:
- 259096 NZMH2-A50
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 50 A | |
| Breaking Capacity | 15kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Rated DC Voltage | 750 V dc | |
| Terminal Type | Screw | |
| Height | 184mm | |
| Width | 105 mm | |
| Standards/Approvals | IEC 60068-2-30, IEC/EN 60947-2, RoHS, IP40, IEC 60068-2-78, IP66, DIN EN 50274, VDE 0106 Part 110, IP20 | |
| Depth | 149mm | |
| Tripping Characteristics | Thermomagnetic | |
| Reset Actuator Type | Rocker Lever | |
| Break Time | 10 ms | |
| Tripping Mechanism | Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 50 A | ||
Breaking Capacity 15kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Rated DC Voltage 750 V dc | ||
Terminal Type Screw | ||
Height 184mm | ||
Width 105 mm | ||
Standards/Approvals IEC 60068-2-30, IEC/EN 60947-2, RoHS, IP40, IEC 60068-2-78, IP66, DIN EN 50274, VDE 0106 Part 110, IP20 | ||
Depth 149mm | ||
Tripping Characteristics Thermomagnetic | ||
Reset Actuator Type Rocker Lever | ||
Break Time 10 ms | ||
Tripping Mechanism Thermomagnetic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Molded Case Circuit Breaker offers robust performance and reliability for modern electrical systems. Designed as a moulded case circuit breaker, it effectively handles an impressive rated current of 50 A. This device ensures protection and optimal functionality within unearthed supply systems up to 690 V. Its thermomagnetic release system safeguards against overload and short-circuit conditions, offering peace of mind in demanding environments. With a compact design that facilitates easy installation, the NZM series is ideal for a variety of applications, providing high-quality circuit protection you can trust. Explore the advanced technological features that enhance circuit safety, making it an essential component of your electrical infrastructure.
Provides superior protection against overload and short-circuit
High performance in demanding operational environments
Meets stringent electrical and safety standards
