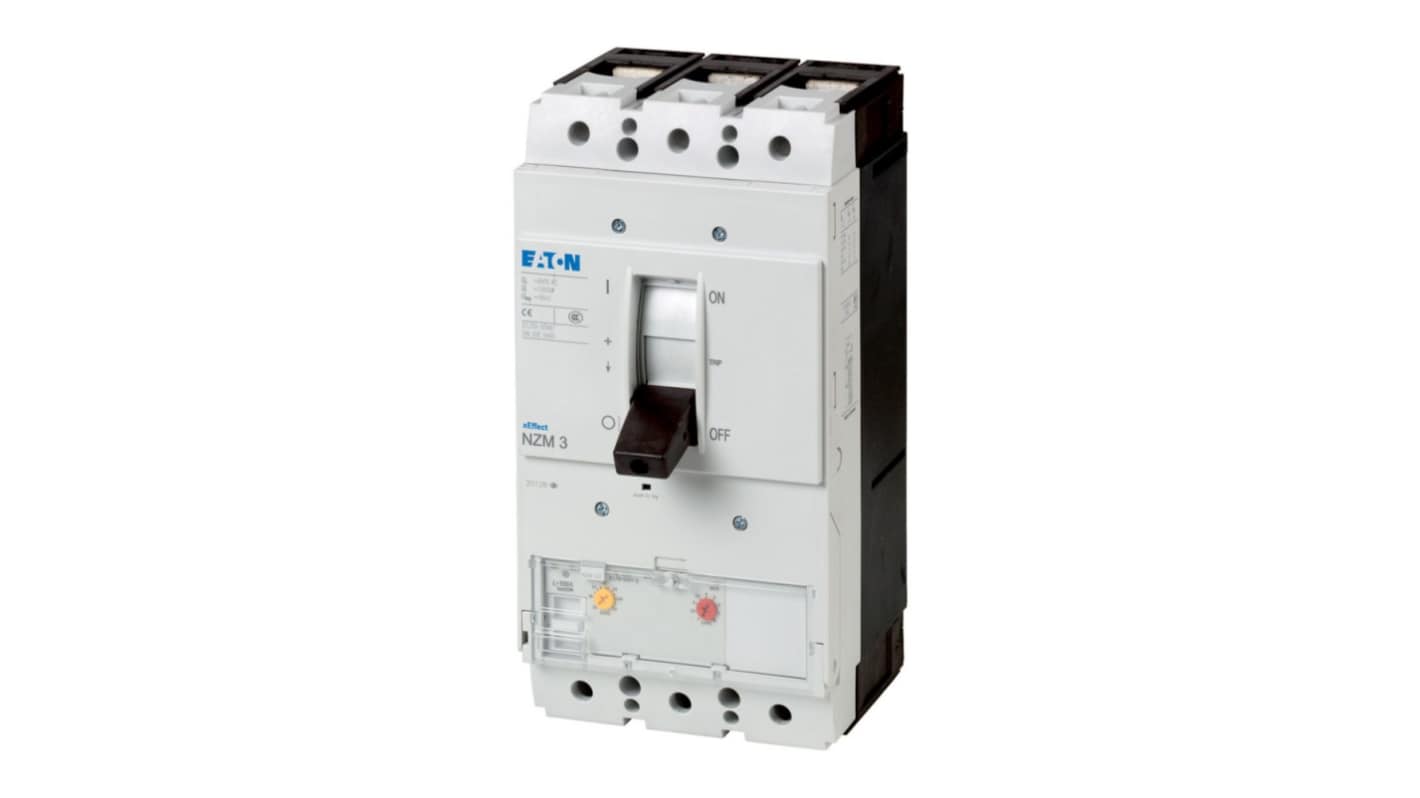

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 630 A, Breaking Capacity 9 kA, Fixed
- RS Stock No.:
- 254-451
- Mfr. Part No.:
- 259118 NZMH3-AE630
- Brand:
- Eaton
Subtotal (1 unit)*
£3,504.35
(exc. VAT)
£4,205.22
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,504.35 |
*price indicative
- RS Stock No.:
- 254-451
- Mfr. Part No.:
- 259118 NZMH3-AE630
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 630 A | |
| Breaking Capacity | 9kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Terminal Type | Screw | |
| Height | 275mm | |
| Standards/Approvals | DIN EN 50274, RoHS, VDE 0106 Part 110, IEC/EN 60947-2, IEC 60068-2-30, IEC 60068-2-78 | |
| Width | 140 mm | |
| Depth | 166mm | |
| Tripping Characteristics | Electronic Release | |
| Reset Actuator Type | Rocker Lever | |
| Break Time | 10 ms | |
| Tripping Mechanism | Electronic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 630 A | ||
Breaking Capacity 9kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Terminal Type Screw | ||
Height 275mm | ||
Standards/Approvals DIN EN 50274, RoHS, VDE 0106 Part 110, IEC/EN 60947-2, IEC 60068-2-30, IEC 60068-2-78 | ||
Width 140 mm | ||
Depth 166mm | ||
Tripping Characteristics Electronic Release | ||
Reset Actuator Type Rocker Lever | ||
Break Time 10 ms | ||
Tripping Mechanism Electronic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Molded Case Circuit Breaker is engineered for demanding applications, offering exceptional performance and reliability. With a robust design, this model provides effective circuit protection, ensuring safety in unearthed supply systems up to 690V. Its electronic release system enhances precision in managing overloads and short circuits, making it suitable for various industrial environments. The circuit breaker is built to withstand high short-circuit currents while optimising heat dissipation during operation, reflecting Eaton's commitment to quality and safety standards. Incorporating advanced technological features, it supports efficient circuit management and integrates seamlessly into existing electrical systems, making it an indispensable component for modern installations.
Robust construction meets the highest safety standards
High short-circuit resistance enhances system reliability
Suitable for both mechanical and electrical lifespan ensuring durability
Versatile terminal capacities accommodate various conductor types
