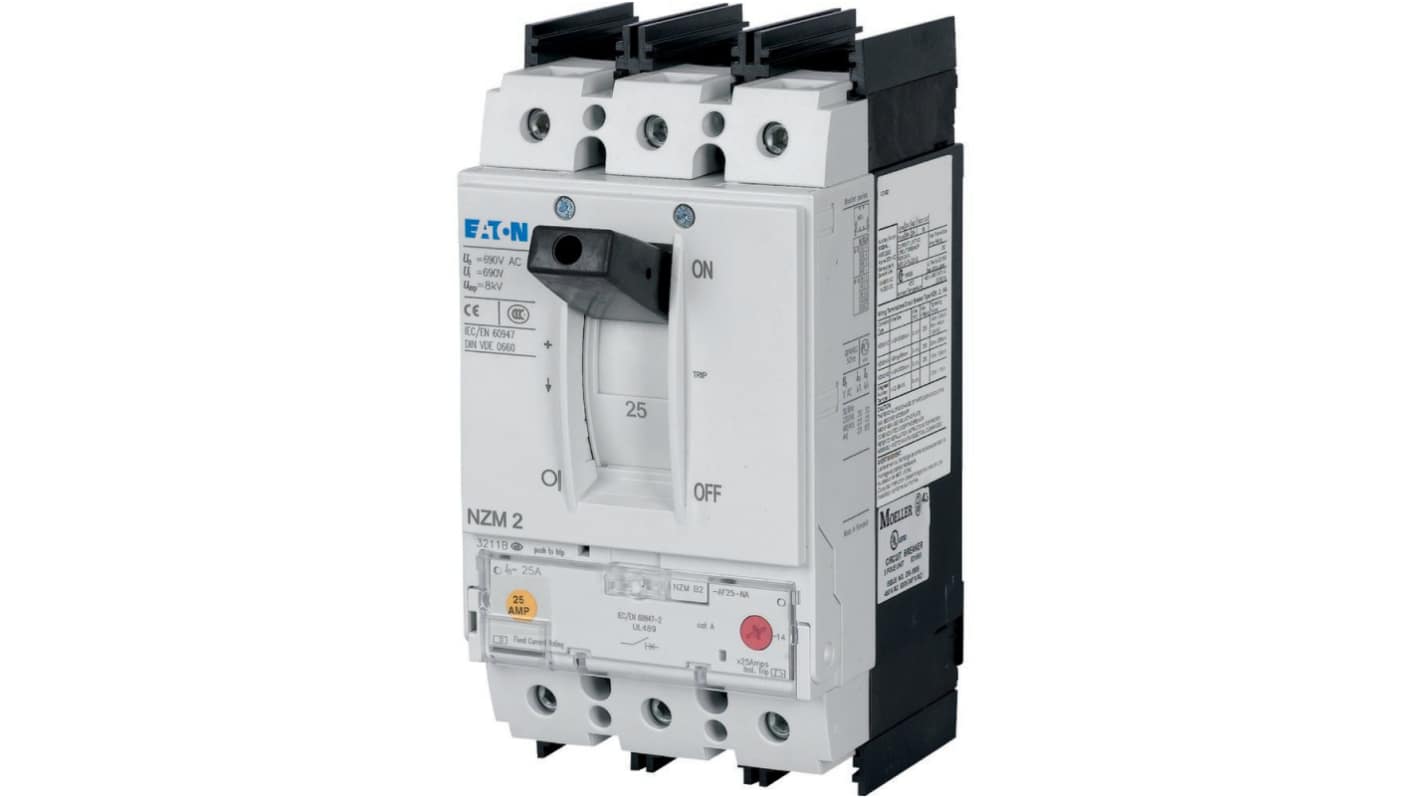

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 90A, Breaking Capacity 5 kA, Fixed

View all MCCBs

Subtotal (1 unit)*

£886.72

(exc. VAT)

£1,064.06

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£886.72

*price indicative

RS Stock No.:
254-037
Mfr. Part No.:
269199 NZMH2-AF90-NA
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Range

NZM

Product Type

Molded Case Circuit Breaker

Series

NZM

Number of Poles

3

Current Rating

90A

Breaking Capacity

5kA

Mount Type

Fixed

Rated AC Voltage

690V ac

Terminal Type

Screw

Depth

149mm

Height

195mm

Width

105mm

Standards/Approvals

IP66, IEC 60068-2-30, VDE 0106 Part 110, IEC/EN 60947-2, DIN EN 50274, UL, IEC 60068-2-78, CE, IP40, RoHS conform, IP 20, CSA

Reset Actuator Type

Rocker Lever

Break Time

10 ms

Tripping Mechanism

Thermomagnetic

Tripping Characteristics

Thermomagnetic

COO (Country of Origin):
RO
The Eaton NZM molded case circuit breaker by Eaton showcases unrivalled reliability and performance, tailored specifically for complex electrical systems. Constructed with a robust thermomagnetic release system, this circuit breaker offers strong protection against overloads and short circuits. Ideal for various applications, it is specially designed for the North American market, ensuring compliance with rigorous safety certifications. With precise dimensions and impressive operational ratings, the NZM series upholds high standards in temperature rise management, electromagnetic compatibility, and mechanical stability. This circuit breaker not only meets but exceeds the expectations of panel builders and system designers, thanks to its advanced overload and short-circuit protection features, providing peace of mind in mission-critical environments.

Engineered for durability in demanding electrical environments

Supports detailed heat dissipation calculations for optimal performance

Versatile installation options including built-in and DIN rail mounting

Offers a clear and comprehensive degree of protection against mechanical impacts

Equipped with maximum back-up fuse capability for enhanced safety

Facilitates easy access for maintenance with an innovative front-side connection

Complies with international standards for electromagnetic compatibility

Designed for seamless integration with additional auxiliary contacts if required

Exceptional lifespan ratings guarantee long-term reliability under typical operating conditions

Specially suited for branch and feeder circuits in unearthed supply systems
