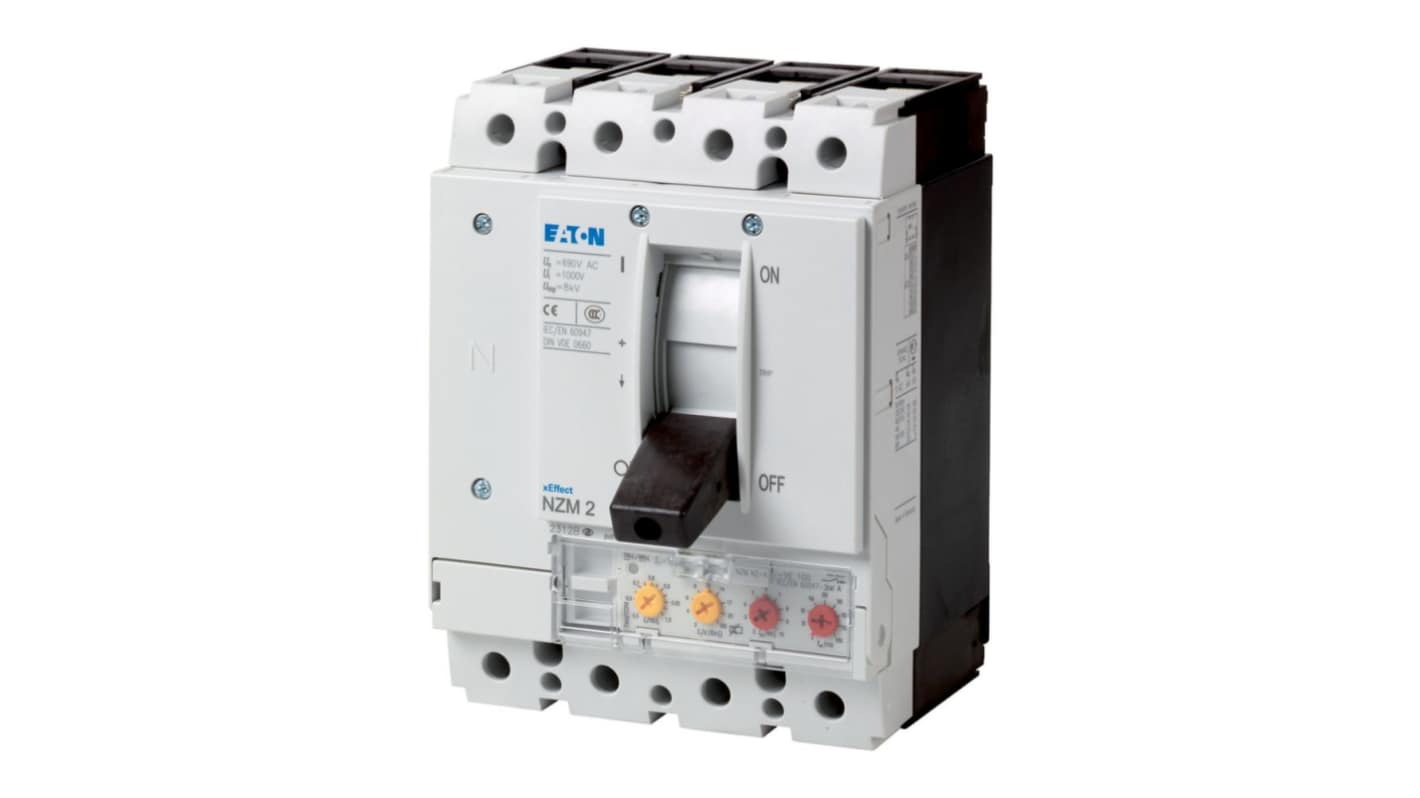

Eaton, NZM, NZM Molded Case Circuit Breaker 4-Pole 100 A, Breaking Capacity 80 kA, Fixed
- RS Stock No.:
- 253-846
- Mfr. Part No.:
- 265949 NZML2-4-VE100
- Brand:
- Eaton
Subtotal (1 unit)*
£1,785.96
(exc. VAT)
£2,143.15
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,785.96 |
*price indicative
- RS Stock No.:
- 253-846
- Mfr. Part No.:
- 265949 NZML2-4-VE100
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 4 | |
| Current Rating | 100 A | |
| Breaking Capacity | 80kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Terminal Type | Screw | |
| Standards/Approvals | RoHS, IP66, DIN EN 50274, IP20, IEC 60068-2-30, IEC 60068-2-78, IEC/EN 60947-2, IP40, VDE 0106 Part 110 | |
| Height | 184mm | |
| Depth | 149mm | |
| Width | 140 mm | |
| Break Time | 10 ms | |
| Reset Actuator Type | Rocker Lever | |
| Tripping Mechanism | Electronic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 4 | ||
Current Rating 100 A | ||
Breaking Capacity 80kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Terminal Type Screw | ||
Standards/Approvals RoHS, IP66, DIN EN 50274, IP20, IEC 60068-2-30, IEC 60068-2-78, IEC/EN 60947-2, IP40, VDE 0106 Part 110 | ||
Height 184mm | ||
Depth 149mm | ||
Width 140 mm | ||
Break Time 10 ms | ||
Reset Actuator Type Rocker Lever | ||
Tripping Mechanism Electronic | ||
- COO (Country of Origin):
- RO
The Eaton Molded Case Circuit Breaker is designed for robust protection in electrical environments. It comes with an advanced electronic release system and a four-pole configuration. Its construction meets rigorous industry standards and compliance regulations, making it suitable for diverse applications ranging from commercial to industrial settings. The breaker also features comprehensive safety measures including thermal stability and electromagnetic compatibility. Built for both unearthed supply systems and standard applications at a voltage rating of up to 690V, it demonstrates exceptional versatility.
Robust thermal dissipation capability supports prolonged operation
Endures up to 20000 mechanical operations for longevity
IP66 protection with specific configurations
User-friendly installation options support both fixed and DIN rail mounting
