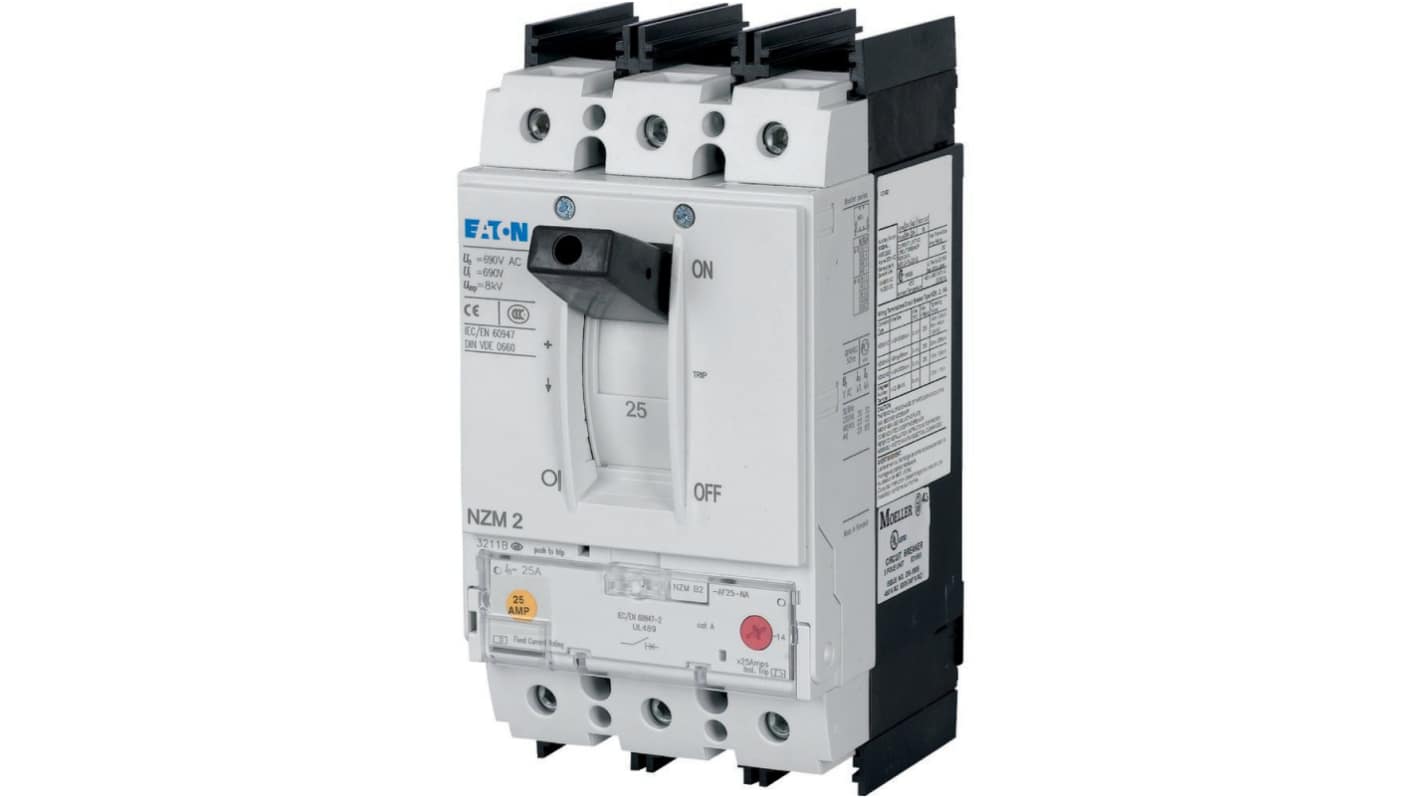

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 175 A, Breaking Capacity 18.5 kA, Fixed
- RS Stock No.:
- 253-669
- Mfr. Part No.:
- 269168 NZMB2-AF175-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£1,288.28
(exc. VAT)
£1,545.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,288.28 |
*price indicative
- RS Stock No.:
- 253-669
- Mfr. Part No.:
- 269168 NZMB2-AF175-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 175 A | |
| Breaking Capacity | 18.5kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 440 V ac | |
| Terminal Type | Screw | |
| Width | 105 mm | |
| Depth | 149mm | |
| Height | 195mm | |
| Standards/Approvals | IEC 60068-2-30, CE, CSA, DIN EN 50274, IEC/EN 60947-2, IP40, UL, IEC 60068-2-78, IP20, RoHS, IP66, VDE 0106 Part 110 | |
| Break Time | 10 ms | |
| Tripping Characteristics | Thermomagnetic | |
| Reset Actuator Type | Rocker Lever | |
| Tripping Mechanism | Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 175 A | ||
Breaking Capacity 18.5kA | ||
Mount Type Fixed | ||
Rated AC Voltage 440 V ac | ||
Terminal Type Screw | ||
Width 105 mm | ||
Depth 149mm | ||
Height 195mm | ||
Standards/Approvals IEC 60068-2-30, CE, CSA, DIN EN 50274, IEC/EN 60947-2, IP40, UL, IEC 60068-2-78, IP20, RoHS, IP66, VDE 0106 Part 110 | ||
Break Time 10 ms | ||
Tripping Characteristics Thermomagnetic | ||
Reset Actuator Type Rocker Lever | ||
Tripping Mechanism Thermomagnetic | ||
- COO (Country of Origin):
- RO
The Eaton molded case circuit breaker is designed for optimal performance and reliability in electrical systems. Expertly crafted for North American applications, the product features a robust thermomagnetic release, ensuring essential protection against overloads and short circuits. Its compact dimensions and versatile mounting options make installation straightforward while catering to diverse operational settings. The circuit breaker’s commendable short-circuit breaking capacity and high degree of protection solidify its position as a fundamental component for branch and feeder circuits. Furthermore, compliance with international standards enhances its appeal for projects demanding certified reliability and efficiency in managing electrical loads.
Provides exceptional thermal and magnetic protection to safeguard your electrical systems
Compact design allows for versatile installation options tailored to various applications
Designed for use with different auxiliary contacts to suit different circuit configurations
Meets rigorous international standards, offering reliability and peace of mind
Ensures significant short-circuit breaking capacities to handle unexpected electrical surges
Supports a wide range of terminal capacities for flexibility in electrical connections
Engineered for optimum performance with minimal space requirements
