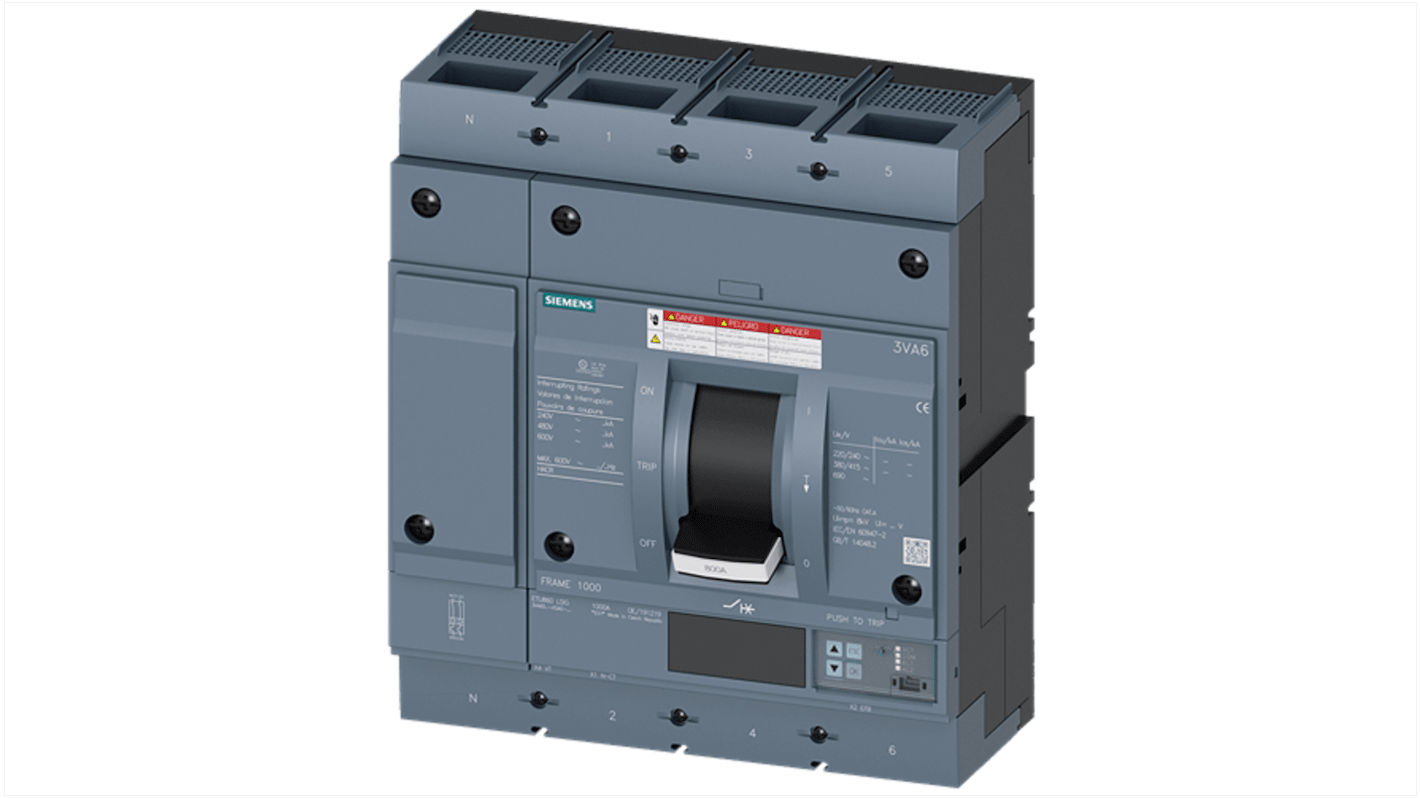

Siemens, SENTRON, 3VA6 Molded Case Circuit Breaker 4-Pole 800A, Breaking Capacity 100 kA, Fixed
- RS Stock No.:
- 249-944
- Mfr. Part No.:
- 3VA6580-7KQ42-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£5,630.77
(exc. VAT)
£6,756.92
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5,630.77 |
*price indicative
- RS Stock No.:
- 249-944
- Mfr. Part No.:
- 3VA6580-7KQ42-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Product Type | Molded Case Circuit Breaker | |
| Series | 3VA6 | |
| Number of Poles | 4 | |
| Current Rating | 800A | |
| Breaking Capacity | 100kA | |
| Mount Type | Fixed | |
| Rated AC Voltage | 690V ac | |
| Terminal Type | Flat Bar Terminal Connection | |
| Height | 328mm | |
| Depth | 120mm | |
| Standards/Approvals | ABS, CCC, CE, DNV, EAC, IEC 81346-2, LRS, RCM, RMRS, RoHS, UKCA, UL, VDE | |
| Width | 280mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Product Type Molded Case Circuit Breaker | ||
Series 3VA6 | ||
Number of Poles 4 | ||
Current Rating 800A | ||
Breaking Capacity 100kA | ||
Mount Type Fixed | ||
Rated AC Voltage 690V ac | ||
Terminal Type Flat Bar Terminal Connection | ||
Height 328mm | ||
Depth 120mm | ||
Standards/Approvals ABS, CCC, CE, DNV, EAC, IEC 81346-2, LRS, RCM, RMRS, RoHS, UKCA, UL, VDE | ||
Width 280mm | ||
- COO (Country of Origin):
- MX
The Siemens Molded Case Circuit Breaker offers exceptional performance with innovative technology tailored for effective system protection. Designed to deliver reliable overload and short circuit protection it boasts a breaking capacity of up to 100 kA at 480 V ensuring safety in critical applications. The ETU860 electronic trip unit enhances functionality by providing comprehensive protection features including current measurements and ground fault monitoring. With robust mechanical and electrical endurance ratings this circuit breaker supports rigorous operational demands making it ideal for various environmental conditions.
Flexible response values enhance customization for specific operation demands
Mechanical service life rated at 10000 operating cycles for durability
Designed for straightforward front connection simplifying installation
Wide operational temperature range ensures reliability in various environments
Comprehensive communication functions enable integration with advanced systems
Available protection classes adapt to different installation requirements
