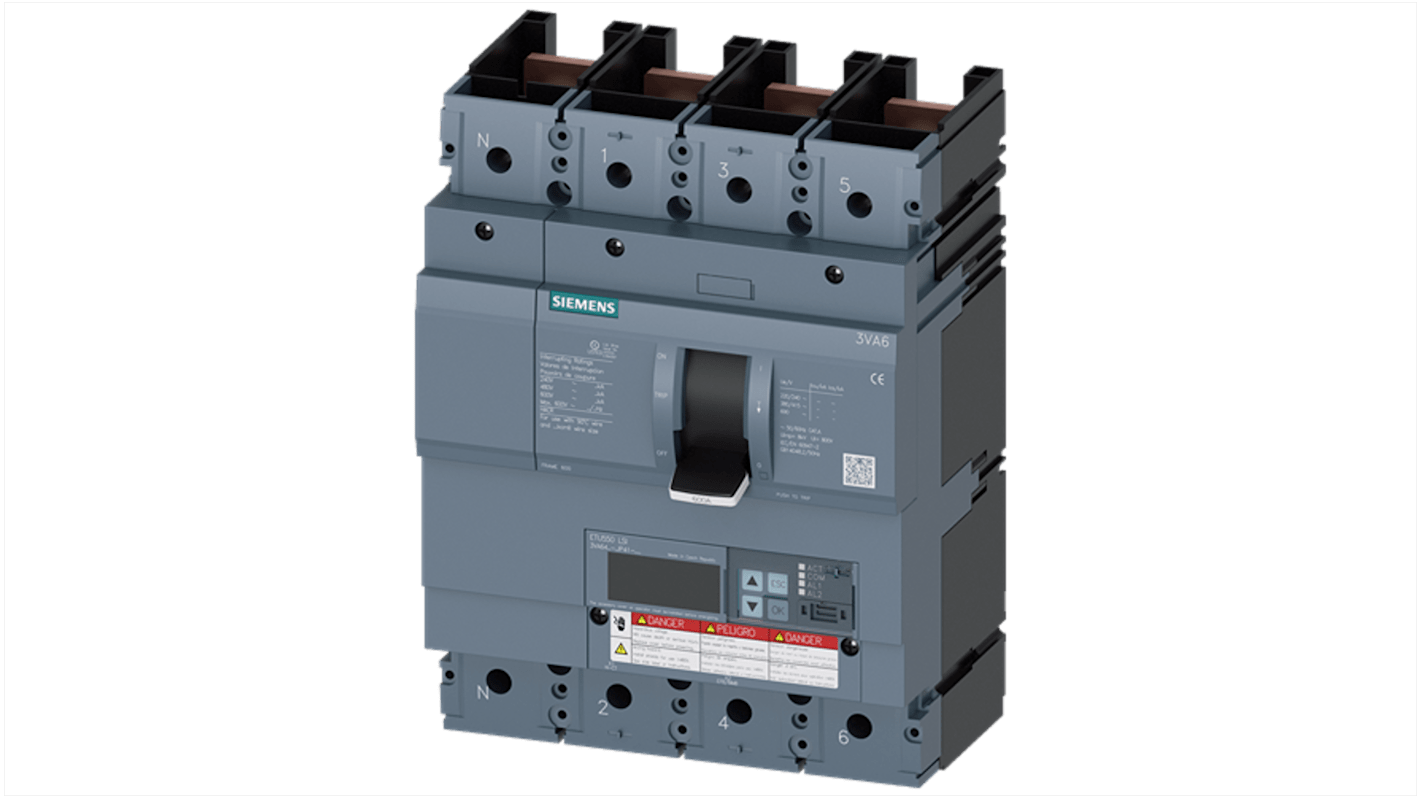

Siemens, SENTRON, 3VA6 Molded Case Circuit Breaker 4-Pole 400 A, Breaking Capacity 100 kA, Fixed
- RS Stock No.:
- 249-654
- Mfr. Part No.:
- 3VA6440-7JP41-2AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£4,007.58
(exc. VAT)
£4,809.10
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4,007.58 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 249-654
- Mfr. Part No.:
- 3VA6440-7JP41-2AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Molded Case Circuit Breaker | |
| Range | SENTRON | |
| Series | 3VA6 | |
| Number of Poles | 4 | |
| Current Rating | 400 A | |
| Breaking Capacity | 100kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Height | 248mm | |
| Depth | 110mm | |
| Standards/Approvals | UL, CE | |
| Width | 184 mm | |
| Better World Product | Yes | |
| Better World Claim | Concentrated or Compact Solution, Extended Product Life | |
| Tripping Mechanism | LSI | |
| Tripping Characteristics | Short Circuit Protection, Overload Protection | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Molded Case Circuit Breaker | ||
Range SENTRON | ||
Series 3VA6 | ||
Number of Poles 4 | ||
Current Rating 400 A | ||
Breaking Capacity 100kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Height 248mm | ||
Depth 110mm | ||
Standards/Approvals UL, CE | ||
Width 184 mm | ||
Better World Product Yes | ||
Better World Claim Concentrated or Compact Solution, Extended Product Life | ||
Tripping Mechanism LSI | ||
Tripping Characteristics Short Circuit Protection, Overload Protection | ||
- COO (Country of Origin):
- CZ
The Siemens Molded Case Circuit Breaker offers exceptional performance and reliability for demanding applications. Designed for system protection it delivers superior overload and short circuit protection ensuring optimal safety in commercial and industrial environments. Equipped with advanced features such as the ETU550 overcurrent release this breaker is tailored to handle significant loads with multiple adjustable parameters. With its robust design this product is rated for a maximum operational current of 400 A while maintaining an impressive breaking capacity of up to 100 kA.
Supports a mechanical service life of up to 20000 operating cycles
Compatible with UL 489 standards for safety and performance
Offers adjustable current settings for tailored overload protection
Designed with protection class IP40 for improved durability
Enables retrofitting of neutral conductor protection capabilities
