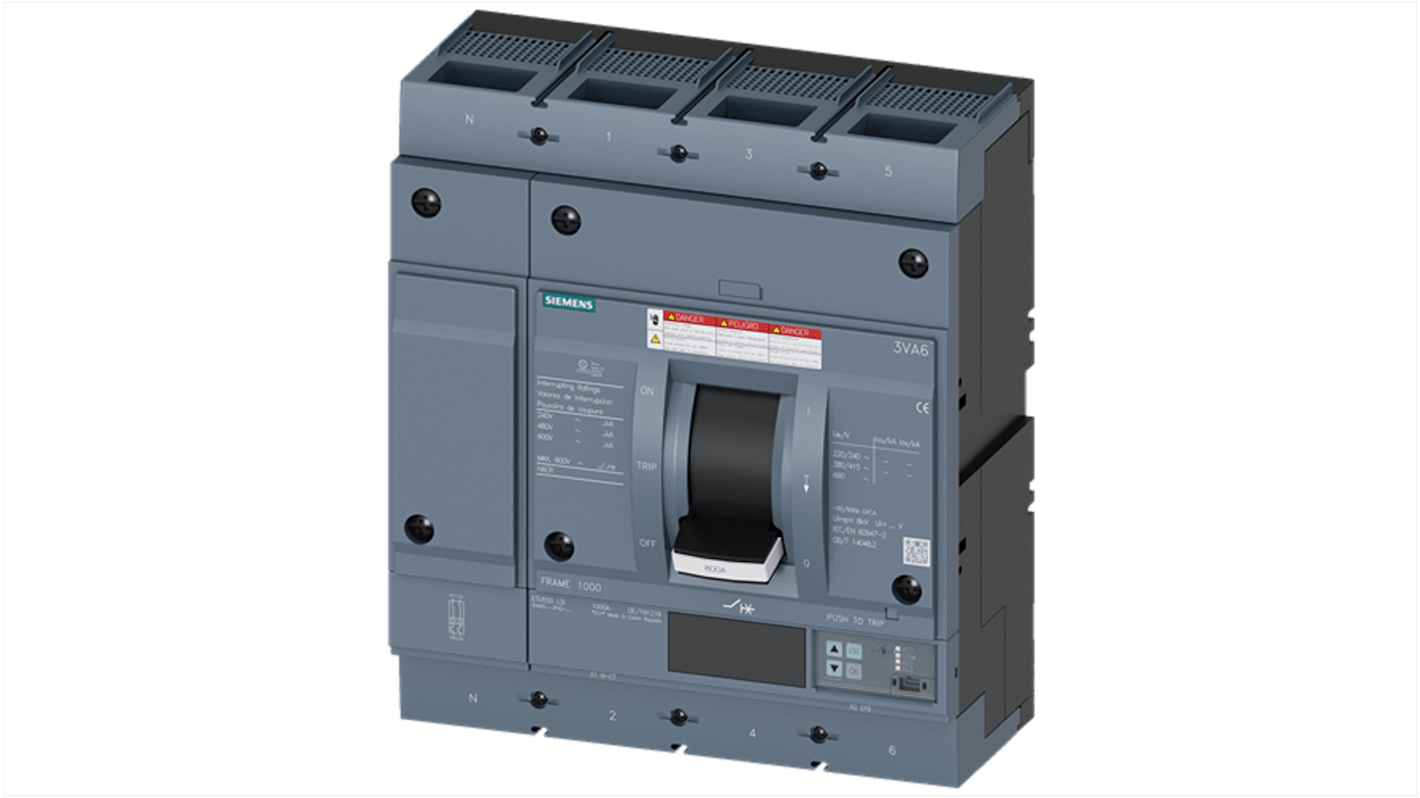

Siemens, SENTRON, 3VA6 Molded Case Circuit Breaker 4-Pole 600 A, Breaking Capacity 100 kA, Fixed
- RS Stock No.:
- 249-465
- Mfr. Part No.:
- 3VA6560-7JP42-2AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£5,183.12
(exc. VAT)
£6,219.74
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5,183.12 |
*price indicative
- RS Stock No.:
- 249-465
- Mfr. Part No.:
- 3VA6560-7JP42-2AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Molded Case Circuit Breaker | |
| Range | SENTRON | |
| Series | 3VA6 | |
| Number of Poles | 4 | |
| Current Rating | 600 A | |
| Breaking Capacity | 100kA | |
| Rated AC Voltage | 480 V ac | |
| Mount Type | Fixed | |
| Terminal Type | Front Connected | |
| Width | 280 mm | |
| Height | 328mm | |
| Depth | 120mm | |
| Standards/Approvals | IEC 60947, IEC 81346-2, RoHS, UL 489 | |
| Tripping Characteristics | Type I, Type L, Type S | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Molded Case Circuit Breaker | ||
Range SENTRON | ||
Series 3VA6 | ||
Number of Poles 4 | ||
Current Rating 600 A | ||
Breaking Capacity 100kA | ||
Rated AC Voltage 480 V ac | ||
Mount Type Fixed | ||
Terminal Type Front Connected | ||
Width 280 mm | ||
Height 328mm | ||
Depth 120mm | ||
Standards/Approvals IEC 60947, IEC 81346-2, RoHS, UL 489 | ||
Tripping Characteristics Type I, Type L, Type S | ||
- COO (Country of Origin):
- MX
The Siemens Molded Case Circuit Breaker is engineered for exceptional performance in demanding applications. With an advanced ETU550 electronic overcurrent release it offers effective line protection and enhanced reliability. Designed for 4 pole configurations this circuit breaker boasts a breaking capacity of up to 100 kA at 480 V. Catering to various operational environments its insulation voltage stands at a robust 800 V. The robust mechanical and electrical endurance ensures a service life that meets the highest industrial standards.
Optimized for a wide range of industrial applications which ensuring flexible installation options
Highly adjustable trip settings allow for tailored response to specific operational conditions
Complies with international standards providing assurance of quality and safety
Compact dimensions facilitate straightforward installation in space constrained environments
Offers a communication function enhancing integration with modern automation systems
Low power loss during operation contributes to improved energy efficiency and reduced operating costs
