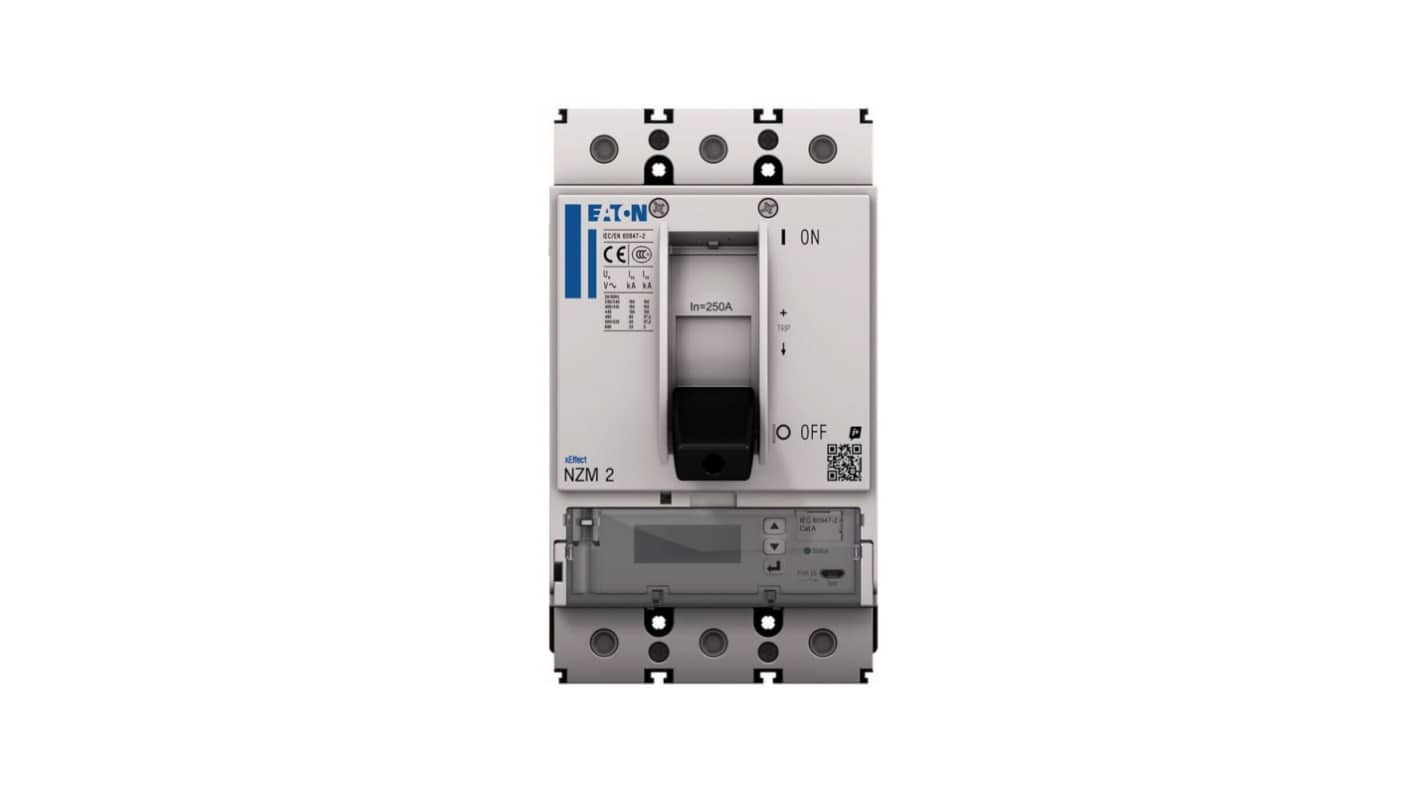

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 250A, Breaking Capacity 5 kA, Fixed
- RS Stock No.:
- 249-032
- Mfr. Part No.:
- 192138 NZMH2-PX250-BT
- Brand:
- Eaton
Subtotal (1 unit)*
£3,121.11
(exc. VAT)
£3,745.33
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,121.11 |
*price indicative
- RS Stock No.:
- 249-032
- Mfr. Part No.:
- 192138 NZMH2-PX250-BT
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 250A | |
| Breaking Capacity | 5kA | |
| Rated AC Voltage | 690V ac | |
| Mount Type | Fixed | |
| Terminal Type | Box | |
| Width | 115mm | |
| Standards/Approvals | DIN EN 50274, IEC 60068-2-30, IEC/EN 60947-2, IEC 60068-2-78, VDE 0106 Part 110, RoHS | |
| Depth | 190mm | |
| Height | 160mm | |
| Tripping Mechanism | Electronic | |
| Reset Actuator Type | Rocker Lever | |
| Break Time | 10 ms | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity 5kA | ||
Rated AC Voltage 690V ac | ||
Mount Type Fixed | ||
Terminal Type Box | ||
Width 115mm | ||
Standards/Approvals DIN EN 50274, IEC 60068-2-30, IEC/EN 60947-2, IEC 60068-2-78, VDE 0106 Part 110, RoHS | ||
Depth 190mm | ||
Height 160mm | ||
Tripping Mechanism Electronic | ||
Reset Actuator Type Rocker Lever | ||
Break Time 10 ms | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Moeller series NZM2 PXR25 circuit breaker is a cutting-edge solution designed to provide superior protection and energy measurement functionality. With its integrated electronic release system, it ensures precise coordination during overloads and short-circuits. This circuit breaker is especially suited for applications in unearthed supply systems at 690 V, and it features a robust design that meets stringent environmental and operational standards. Its innovative features such as LSI overload protection and advanced communication options with Power Xpert Protection Manager make it a reliable choice for modern electrical installations. Additionally, the NZM2 is equipped with a user-friendly interface, allowing for seamless configuration and testing.
Integrated energy measurement class 1 for enhanced monitoring
Capable of withstanding extensive operational demands with 250 A rated current
User-friendly configuration options through a USB interface
Suitable for installation in diverse environments with a temperature range of -25 °C to 70 °C
Meets rigorous RoHS compliance for a sustainable choice
Configured for box terminal connectivity, ensuring flexible installation
Offers comprehensive electromagnetic compatibility ratings
Electronic release system provides rapid response to fault conditions
Designed for high durability with a lifespan of up to 20,000 mechanical operations
