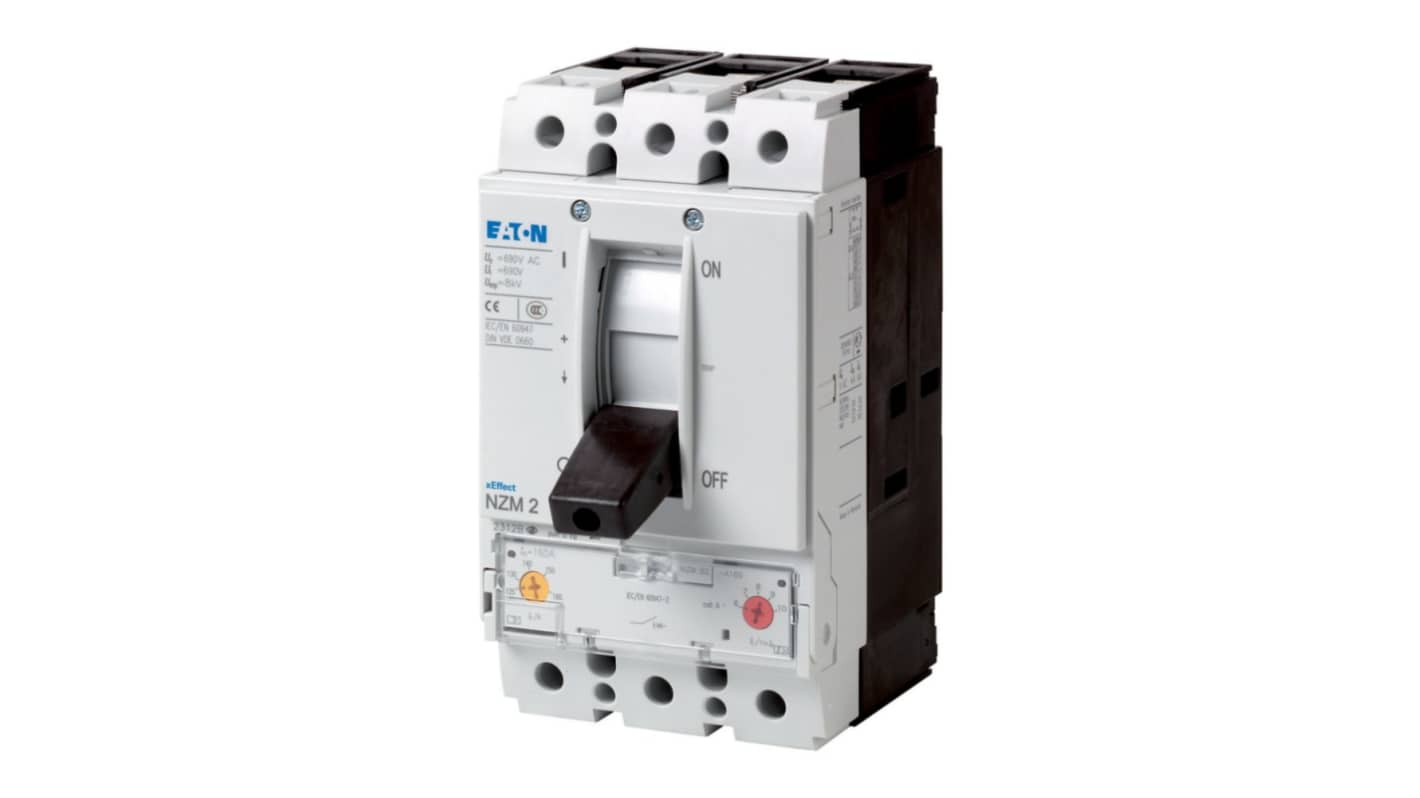

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 160 A, Breaking Capacity 15 kA, Fixed
- RS Stock No.:
- 230-023
- Mfr. Part No.:
- 110293 NZMH2-A160-BT
- Brand:
- Eaton
Subtotal (1 unit)*
£1,413.09
(exc. VAT)
£1,695.71
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £1,413.09 |
*price indicative
- RS Stock No.:
- 230-023
- Mfr. Part No.:
- 110293 NZMH2-A160-BT
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Range | NZM | |
| Product Type | Molded Case Circuit Breaker | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 160 A | |
| Breaking Capacity | 15kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Rated DC Voltage | 750 V dc | |
| Terminal Type | Box | |
| Standards/Approvals | RoHS, IEC IEC/EN 60947 | |
| Height | 184mm | |
| Width | 105 mm | |
| Depth | 149mm | |
| Tripping Characteristics | Thermomagnetic | |
| Reset Actuator Type | Rocker Lever | |
| Break Time | 10 ms | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Range NZM | ||
Product Type Molded Case Circuit Breaker | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 160 A | ||
Breaking Capacity 15kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Rated DC Voltage 750 V dc | ||
Terminal Type Box | ||
Standards/Approvals RoHS, IEC IEC/EN 60947 | ||
Height 184mm | ||
Width 105 mm | ||
Depth 149mm | ||
Tripping Characteristics Thermomagnetic | ||
Reset Actuator Type Rocker Lever | ||
Break Time 10 ms | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton molded case circuit breaker from The Eaton Moeller series NZM offers robust thermal-magnetic protection for electrical installations. Designed for reliability, it delivers efficient circuit breaking capabilities at 160A with three-pole configuration. The circuit breaker is engineered to withstand tough conditions in unearthed supply systems, with a voltage rating of up to 690V. Its compact design ensures it fits seamlessly into various applications, while the included technical specifications provide insight into its performance in demanding environments. Ease of installation is enhanced through its built-in device mounting options and compatibility with DIN rail fittings. The device meets essential compliance standards, demonstrating Eaton's commitment to quality and performance in electrical safety solutions.
Thermal-magnetic release system ensures dependable operation
Robust construction meets international IEC/EN compliance standards
Designed for a wide operational temperature range, operating from -25°C to 70°C
Offers enhanced protection against electric shock with finger and back-of-hand proof features
Developed with high short-circuit breaking capacities to safeguard against electrical faults
Equipped with flexible terminal capacities for both copper and aluminium conductors
Facilitates significant operational lifespan with an impressive mechanical durability of 20,000 operations
Offers IP40 protection with optional enhancements for challenging environments
Supports efficient heat dissipation, crucial for maintaining device performance
Easy integration into existing systems, also suitable for new installations
