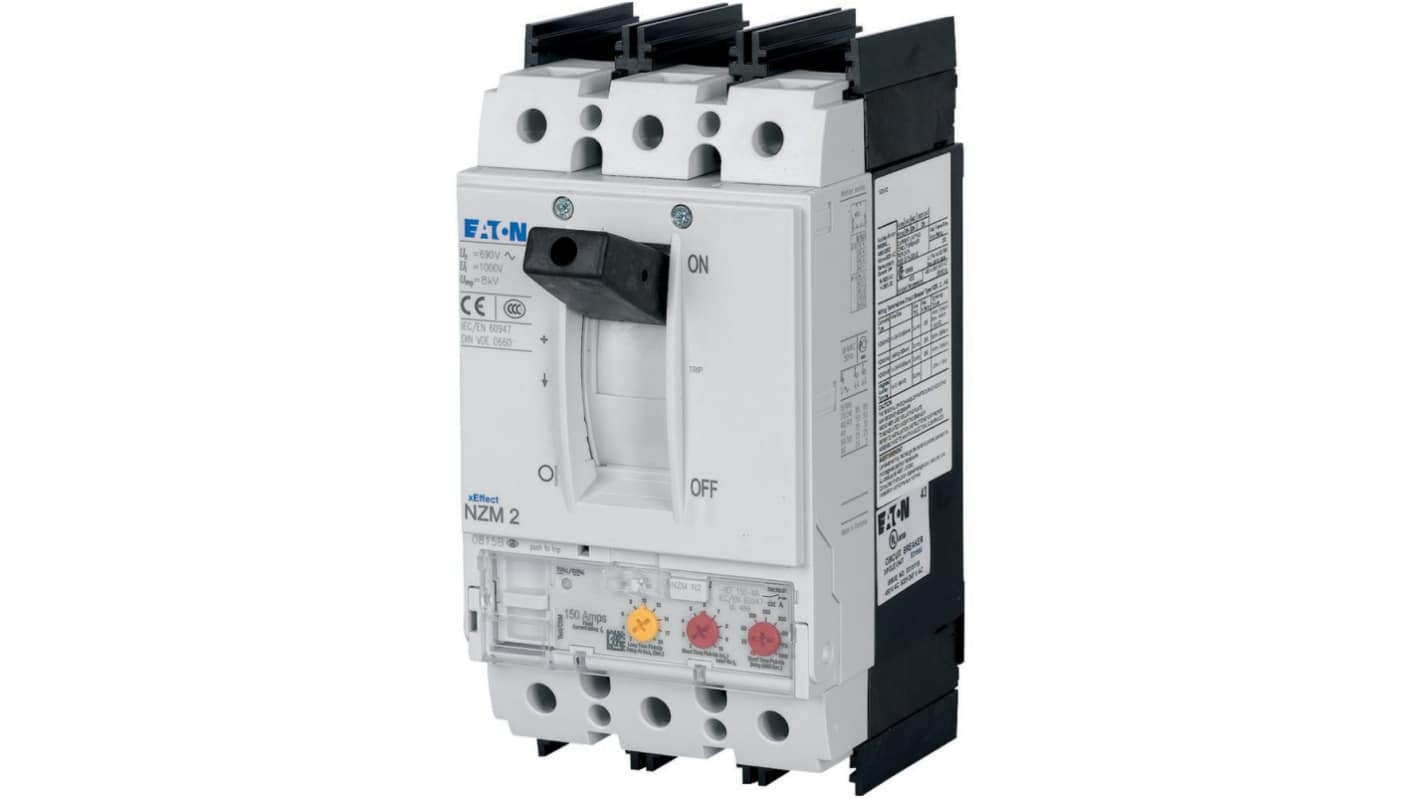

Eaton, NZM, NZM Molded Case Circuit Breaker 3-Pole 200 A, Breaking Capacity 5 kA, Fixed
- RS Stock No.:
- 229-998
- Mfr. Part No.:
- 107840 NZMH2-VEF200-BT-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£2,480.98
(exc. VAT)
£2,977.18
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,480.98 |
*price indicative
- RS Stock No.:
- 229-998
- Mfr. Part No.:
- 107840 NZMH2-VEF200-BT-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Molded Case Circuit Breaker | |
| Range | NZM | |
| Series | NZM | |
| Number of Poles | 3 | |
| Current Rating | 200 A | |
| Breaking Capacity | 5kA | |
| Rated AC Voltage | 690 V ac | |
| Mount Type | Fixed | |
| Terminal Type | Box | |
| Depth | 149mm | |
| Height | 195mm | |
| Standards/Approvals | UL UL IEC 60947 IECEN 60947 UL CSAC. . 509 CE CSA (File . 086) ULCSA CSA (Class . 1401) UL 489 IEC CSA | |
| Width | 105 mm | |
| Break Time | 10 ms | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Molded Case Circuit Breaker | ||
Range NZM | ||
Series NZM | ||
Number of Poles 3 | ||
Current Rating 200 A | ||
Breaking Capacity 5kA | ||
Rated AC Voltage 690 V ac | ||
Mount Type Fixed | ||
Terminal Type Box | ||
Depth 149mm | ||
Height 195mm | ||
Standards/Approvals UL UL IEC 60947 IECEN 60947 UL CSAC. . 509 CE CSA (File . 086) ULCSA CSA (Class . 1401) UL 489 IEC CSA | ||
Width 105 mm | ||
Break Time 10 ms | ||
- COO (Country of Origin):
- RO
The Eaton Moeller series NZM molded case circuit breaker is designed to provide exceptional protection for your electrical systems. With its robust construction and advanced electronic release mechanism, this circuit breaker offers reliable performance for a variety of applications. Its three-pole design ensures optimal circuit control, making it an ideal solution for branch and feeder circuits. The product not only complies with rigorous international standards but is also specially engineered for the North American market. Capable of handling a rated current of 200 A, it provides excellent short-circuit protection while maintaining a compact footprint that saves valuable panel space. Furthermore, its impressive thermal stability and environmental resilience make it a prudent choice for demanding operational conditions.
Robust design tailored for both branch and feeder circuits
Advanced electronic release system enhances protection against overload
Three-pole configuration optimises circuit management
Designed for compliance with international safety standards
Exceptional thermal stability ensures reliability in varied conditions
Compact form factor saves panel space without compromising performance
Specially designed to meet the unique needs of the North American market
Efficient in handling short-circuit events to safeguard connected equipment
Prevention of mechanical failure through rigorous quality standards
