Schneider Electric, ComPact New Generation, LV4294 Molded Case Circuit Breaker 4-Pole 250 A
- RS Stock No.:
- 214-756
- Mfr. Part No.:
- LV429495
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,988.67
(exc. VAT)
£2,386.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,988.67 |
*price indicative
- RS Stock No.:
- 214-756
- Mfr. Part No.:
- LV429495
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | ComPact New Generation | |
| Product Type | Molded Case Circuit Breaker | |
| Series | LV4294 | |
| Number of Poles | 4 | |
| Current Rating | 250 A | |
| Rated AC Voltage | 550 V ac | |
| Standards/Approvals | IEC 60947-2 | |
| Width | 142 mm | |
| Height | 135mm | |
| Depth | 208.3mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range ComPact New Generation | ||
Product Type Molded Case Circuit Breaker | ||
Series LV4294 | ||
Number of Poles 4 | ||
Current Rating 250 A | ||
Rated AC Voltage 550 V ac | ||
Standards/Approvals IEC 60947-2 | ||
Width 142 mm | ||
Height 135mm | ||
Depth 208.3mm | ||
- COO (Country of Origin):
- IT

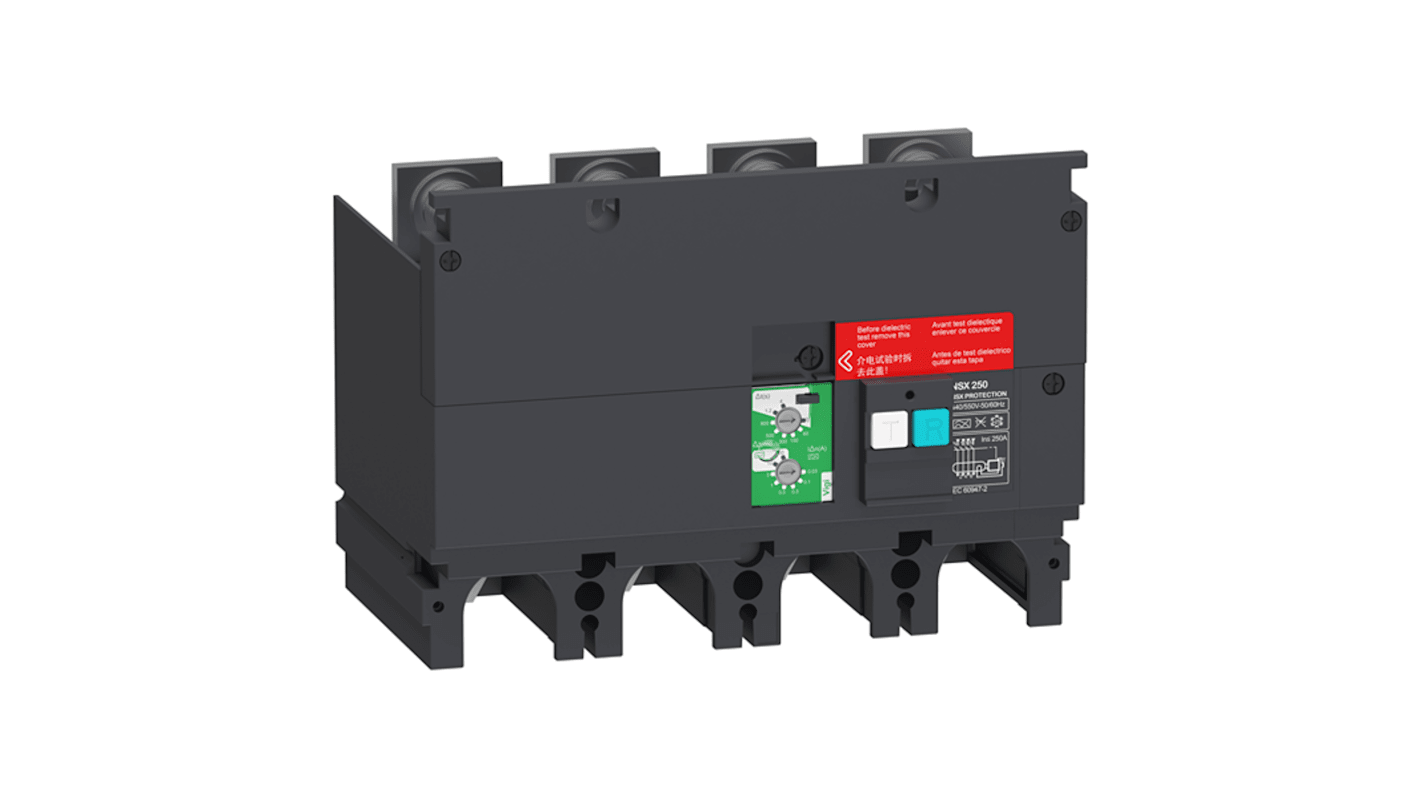

The Schneider Electric Earth leakage protection used for 4 poles circuit breakers. The operational rated voltage is between 440 and 550 VAC 50/60 Hz. The earth leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth leakage default.
RoHS compliant
Mercury free
