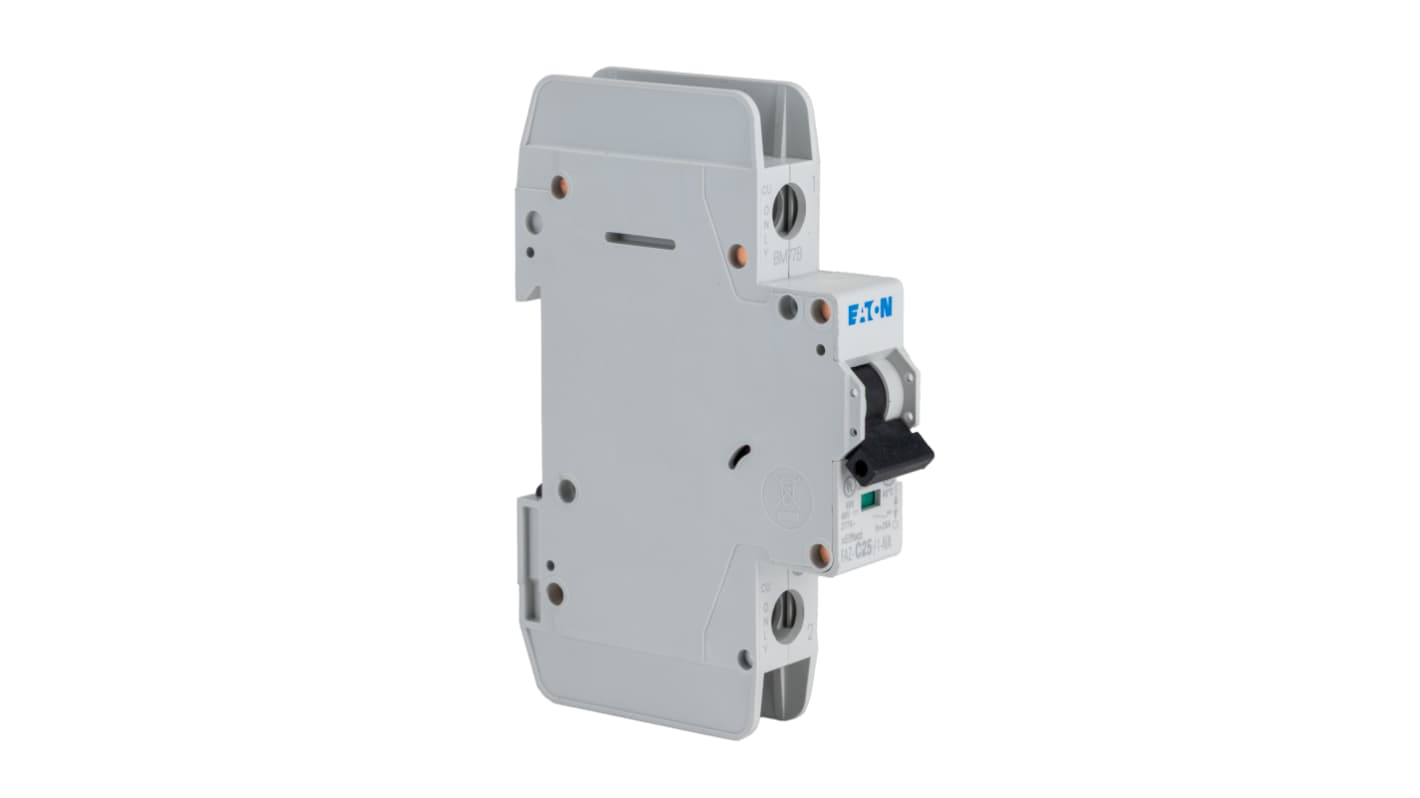

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 25 A, Type C, 415 V ac AC, 48 V DC, 10 kA Breaking Capacity

RS Stock No.:: 922-6917
Mfr. Part No.:: 102092 FAZ-C25/1-NA
Brand:: Eaton

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 25 A, Type C, 415 V ac AC, 48 V DC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£31.19

(exc. VAT)

£37.43

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 4 unit(s) shipping from 17 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£31.19

*price indicative

RS Stock No.:: 922-6917
Mfr. Part No.:: 102092 FAZ-C25/1-NA
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Miniature Circuit Breaker
	Number of Poles	1
	Current Rating	25 A
	Tripping Characteristics	Type C
	Rated AC Voltage	415 V ac
	Rated DC Voltage	48 V
	Mount Type	DIN Rail
	Breaking Capacity	10kA
	Range	xEffect
	Series	FAZ
	Terminal Type	Screw
	IP Rating	IP20
	Width	66 mm
	Standards/Approvals	No
	Height	80mm
	Depth	80mm
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Thermal Magnetic
	Break Time	Instantaneous

	Select all
	Brand Eaton
	Product Type Miniature Circuit Breaker
	Number of Poles 1
	Current Rating 25 A
	Tripping Characteristics Type C
	Rated AC Voltage 415 V ac
	Rated DC Voltage 48 V
	Mount Type DIN Rail
	Breaking Capacity 10kA
	Range xEffect
	Series FAZ
	Terminal Type Screw
	IP Rating IP20
	Width 66 mm
	Standards/Approvals No
	Height 80mm
	Depth 80mm
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Thermal Magnetic
	Break Time Instantaneous

Eaton MCB, Circuit Breaker 25A, DIN Rail Mount Breaker, Thermal-Magnetic Trip - FAZ-C25/1-NA

This circuit breaker by Eaton, suitable for industrial applications, offers optimum protection with its reliable features. The Eaton MCB ensures high levels of safety, protection, and reliability for people, installations, and systems.

Features & Benefits

• Instantaneous and reliable breaking capacity of 10 kA

• Compact design with a width of 66mm and depth of 80mm

• Toggle switch reset actuator for easy operation

• Single-pole configuration with Type C tripping characteristic

• Suitable for DIN rail mounting and screw terminal contact type

Applications

• Ideal for protecting industrial equipment and installations

• Used in control panels, distribution boards, and electrical circuits

Can the Eaton MCB be used for residential applications?

The Eaton MCB is more suited for industrial applications due to its high breaking capacity and design specifications.

Will the Eaton MCB trip under overload conditions?

Yes, the thermal-magnetic tripping mechanism of the Eaton MCB ensures protection under overload scenarios.

Is the Eaton MCB compatible with different voltage ratings?

Yes, the Eaton MCB can handle a rated AC voltage of 240-415V and a rated DC voltage of 48V, making it versatile for various applications.

Note

Eaton formerly known as Moeller
