Versatile, safe and high-quality miniature circuit breakers for commercial and residential applications
Contact position indicator red - green Guide for secure terminal connection 3-position DIN rail clip, permits removal from existing busbar system Rated currents up to 63 A Rated breaking capacity 10 kA according to IEC/EN 60898-1 Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation
Note
Eaton formerly known as Moeller

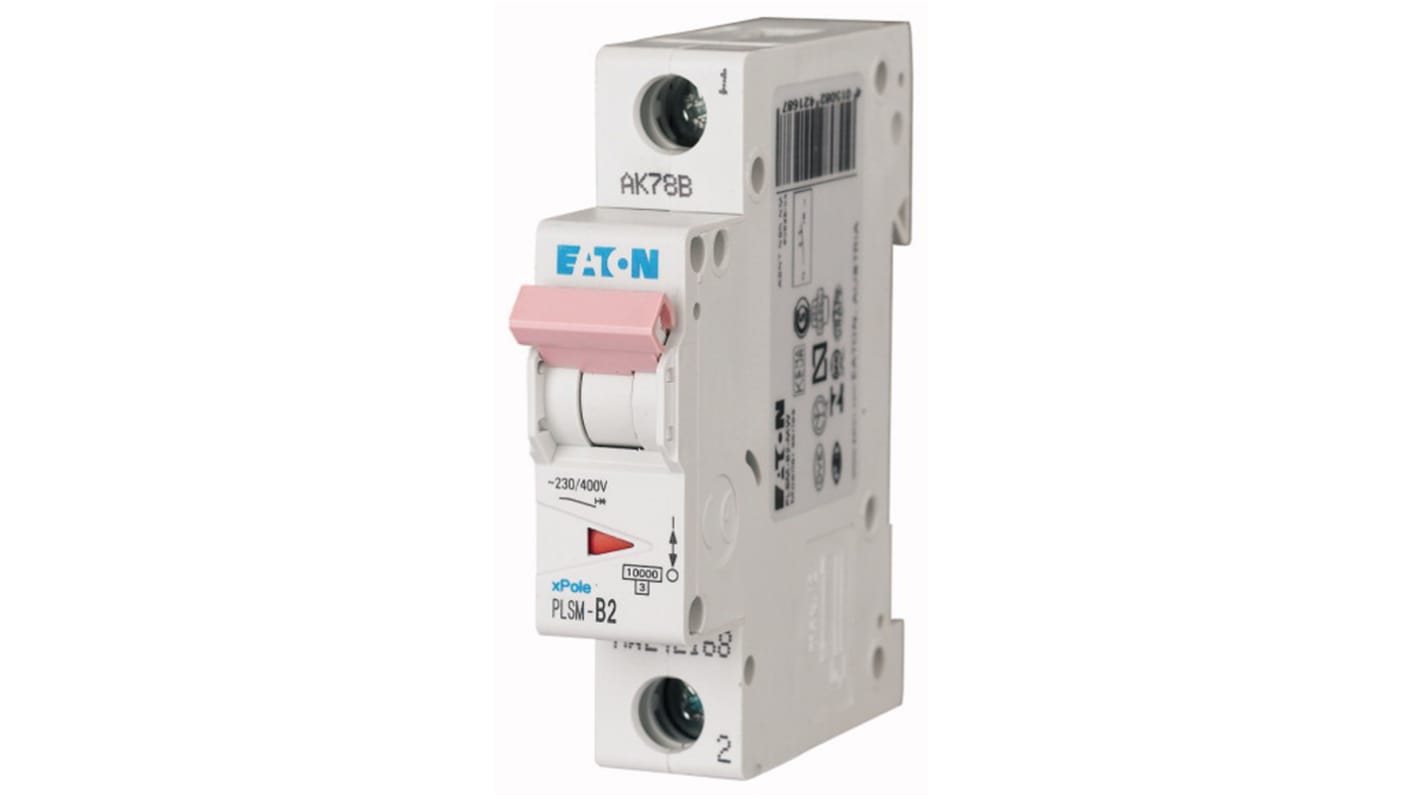

Moeller — circuit breaker
Attribute
Value
Number of Poles
1P
Current Rating
2A
Tripping Characteristics
Type C
Rated DC Voltage
48V
Breaking Capacity at Maximum Voltage Rating
10 kA
Range
xPole
Circuit Breaker Type
MCB
Length
17.5mm
Width
80mm
Mounting Style
DIN Rail Mount
Depth
75mm
