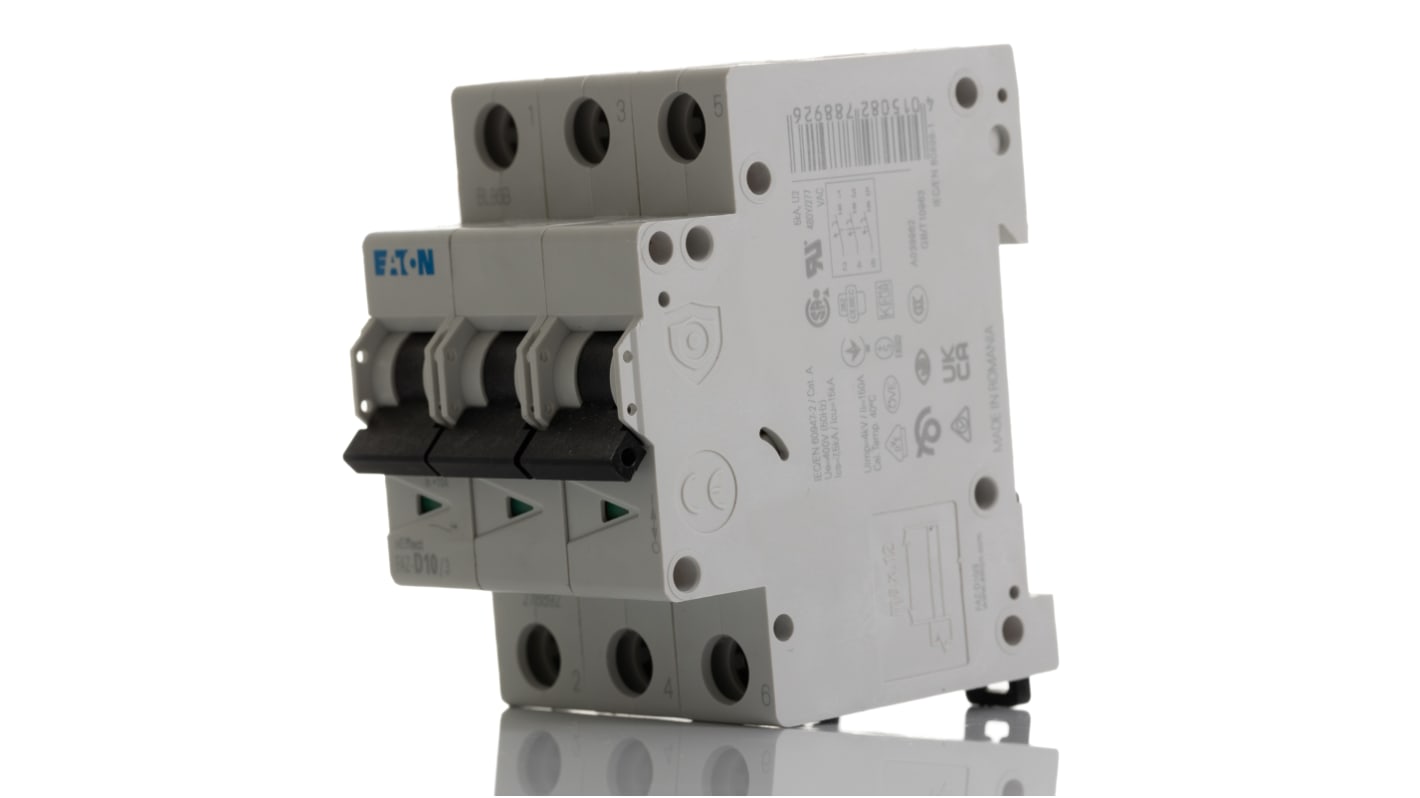

Eaton xEffect MCB, 3P, 10A Curve D, 240 → 415V AC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£99.98

(exc. VAT)

£119.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 8 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£99.98

*price indicative

RS Stock No.:
847-3481
Mfr. Part No.:
278892 FAZ-D10/3
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

3

Current Rating

10A

Tripping Characteristics

Type D

Rated AC Voltage

240 → 415V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

xEffect

Circuit Breaker Type

MCB

Length

54mm

Width

85mm

Mounting Style

DIN Rail Mount

Depth

73mm

Model Number

FAZ-D10/3

Application

Commercial, Residential

Terminal Contact Type

Screw

COO (Country of Origin):
RO

Eaton MCB, 240 to 415V AC Voltage Rating, 70.5mm Built-In Depth - FAZ Series - 278892 FAZ-D10/3


To protect your kit from overload, overcurrent and short circuits, wire up this three-pole MCB from Eaton. It's a type-D breaker that interrupts attached circuits when it receives three to five times its rated current of 10A. The device can break currents of up to 10kA when operating at 415V AC or 15kA at 240V AC, so it's ideal for use with welding equipment, large motors and other heavy-duty equipment. It's mountable in any position to slot into your setup with the minimum of fuss.

Features & Benefits


• DIN-rail mounting, so you can set it up in a jiffy
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm
• Broad operating temperature range of -40°C to +75°C for safe use in harsh work areas

How long-lasting is this unit?


This MCB has a rated lifespan of more than 10,000 operations, so you can be sure it'll be with you for the long run.

Can this MCB withstand impulse voltages?


Yes. This MCB withstands impulse voltages of up to 4kV for additional electrical safety.

Note

Eaton formerly known as Moeller
