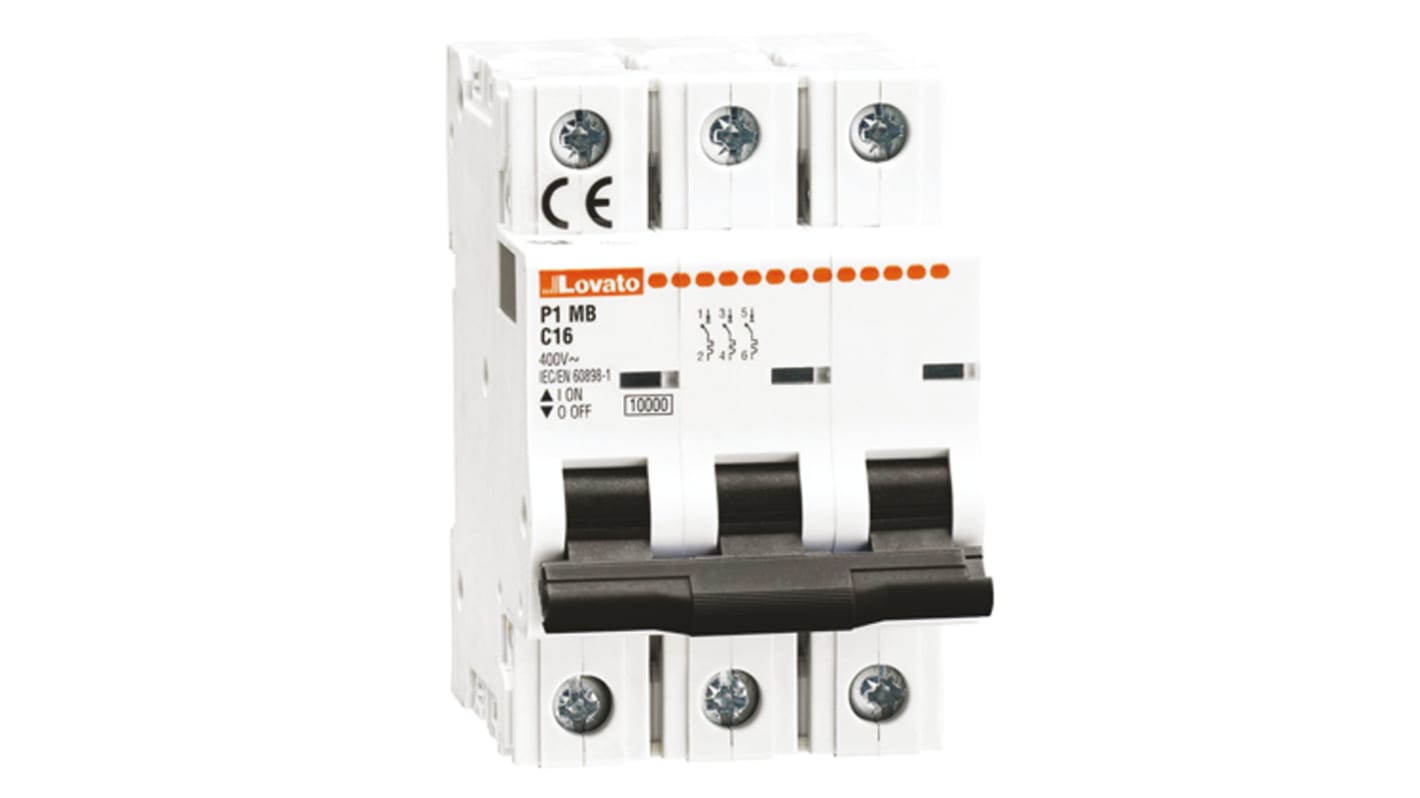

Lovato Modulo Modulo Miniature Circuit Breaker, 3-Pole, 16 A, Type D, 400 V ac AC, 10 kA Breaking Capacity

RS Stock No.:: 825-5882
Mfr. Part No.:: P1MB3PD16
Brand:: Lovato

Lovato Modulo Modulo Miniature Circuit Breaker, 3-Pole, 16 A, Type D, 400 V ac AC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£70.21

(exc. VAT)

£84.25

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

15 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£70.21

*price indicative

RS Stock No.:: 825-5882
Mfr. Part No.:: P1MB3PD16
Brand:: Lovato

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lovato
	Number of Poles	3
	Product Type	Miniature Circuit Breaker
	Current Rating	16 A
	Tripping Characteristics	Type D
	Rated AC Voltage	400 V ac
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	Modulo
	Series	Modulo
	Terminal Type	Screw
	IP Rating	IP20
	Width	80 mm
	Height	86.5mm
	Depth	80mm
	Standards/Approvals	UL 1077, IEC/EN/BS 60947-2, IEC/EN/BS 60898-1, EAC, cURus, CSA
	Tripping Mechanism	Thermal Magnetic
	Break Time	Instantaneous

	Select all
	Brand Lovato
	Number of Poles 3
	Product Type Miniature Circuit Breaker
	Current Rating 16 A
	Tripping Characteristics Type D
	Rated AC Voltage 400 V ac
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range Modulo
	Series Modulo
	Terminal Type Screw
	IP Rating IP20
	Width 80 mm
	Height 86.5mm
	Depth 80mm
	Standards/Approvals UL 1077, IEC/EN/BS 60947-2, IEC/EN/BS 60898-1, EAC, cURus, CSA
	Tripping Mechanism Thermal Magnetic
	Break Time Instantaneous

Datasheet - P1MB3PD16

RoHS Status: Not Applicable

COO (Country of Origin):: IT

Lovato P1MB Series MCB, 16A Current Rating, Type D Tripping Characteristics - P1MB3PD16

This miniature circuit breaker (MCB) is designed for electrical protection, featuring a robust 3-pole configuration. The Lovato MCB offers a current rating of 16 A and is suitable for both 230 V and 400 V applications. Measuring 54mm in width, 86.5mm in length, and 80mm in depth, it easily mounts on standard 35mm DIN rails, ensuring seamless installation in various electrical enclosures.

Features & Benefits

• Type D MCB efficiently handles high inrush currents

• 10 kA breaking capacity for effective short circuit protection

• Designed for an operating temperature range of -40°C to +70°C

• Long electrical life cycles of up to 10,000

• Compliant with IEC/UL1077 for global safety standards

• Suitable for 1mm² to 35mm² conductor sections

Applications

• Ideal for use in industrial automation systems

• Suitable for domestic electrical panels

• Used with commercial electrical installations

• Provides protection in mechanical and electrical

What type of conductors can be used with this MCB?

This circuit breaker accommodates conductors ranging from 1mm² to 35mm², ensuring versatility in various installations.

How does the tripping characteristic benefit users?

The Type D tripping characteristic is specifically designed for applications with high inrush currents, offering protection without nuisance tripping.

What is the significance of a 10 kA breaking capacity?

A 10 kA breaking capacity ensures that the breaker can safely interrupt fault currents, protecting downstream equipment from damage.

Can it be used in extreme temperature environments?

Yes, it operates efficiently within a temperature range of -40°C to +70°C, making it suitable for diverse environmental conditions.
