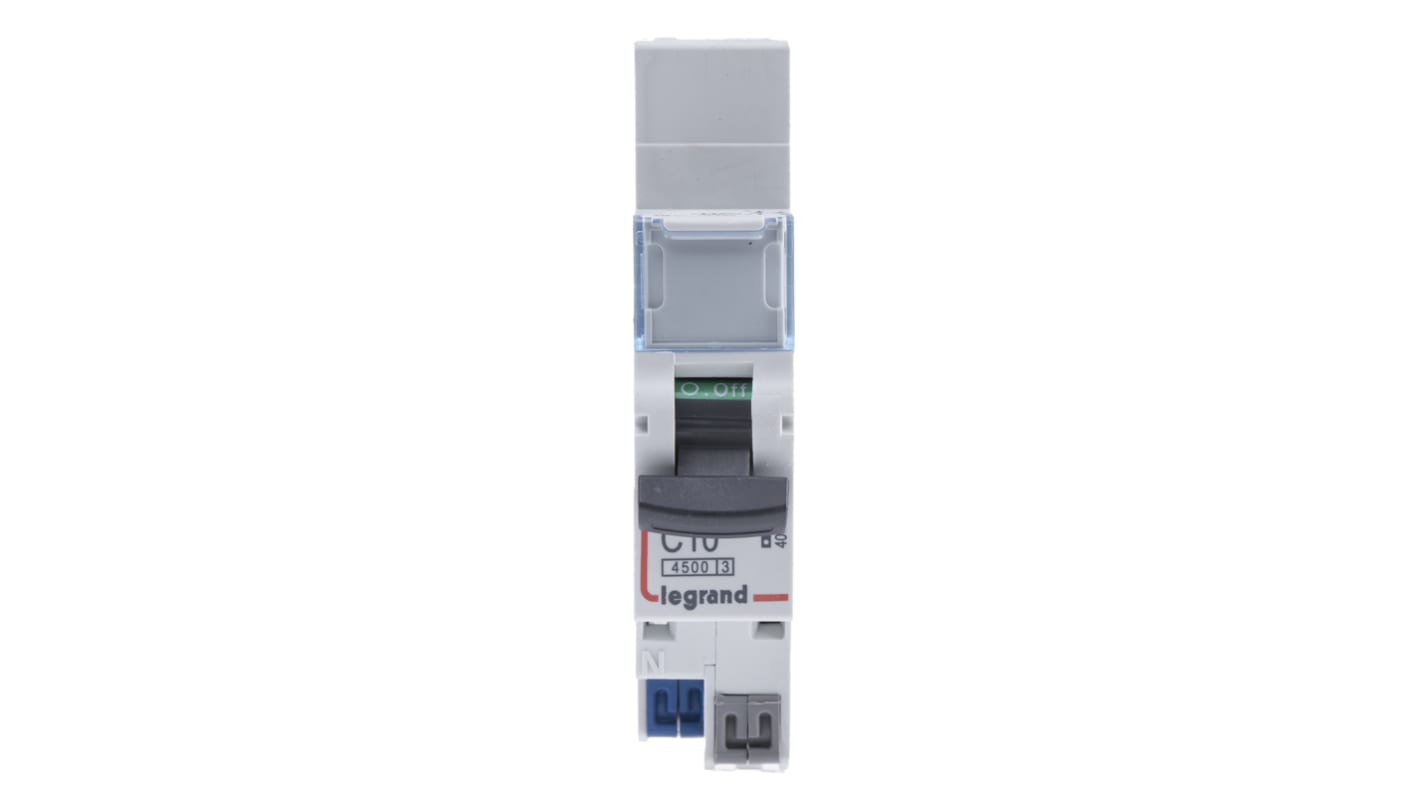

Legrand DX Range DNX3 MCB, 1P, 10A Curve C, 250V AC, 12V DC, 4.5 kA Breaking Capacity
- RS Stock No.:
- 823-4664
- Mfr. Part No.:
- 4 067 82
- Brand:
- Legrand
Subtotal (1 unit)*
£24.64
(exc. VAT)
£29.57
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 9 left, ready to ship from another location
- Plus 20 left, shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.64 |
*price indicative
- RS Stock No.:
- 823-4664
- Mfr. Part No.:
- 4 067 82
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Number of Poles | 1 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 250V | |
| Rated DC Voltage | 12V | |
| Breaking Capacity at Maximum Voltage Rating | 4.5 kA | |
| Range | DX Range | |
| Series | DNX3 | |
| Circuit Breaker Type | MCB | |
| Width | 17.5mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 95mm | |
Select all | ||
|---|---|---|
Brand Legrand | ||
Number of Poles 1 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 250V | ||
Rated DC Voltage 12V | ||
Breaking Capacity at Maximum Voltage Rating 4.5 kA | ||
Range DX Range | ||
Series DNX3 | ||
Circuit Breaker Type MCB | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 95mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Legrand DNX3 MCB 1P Type C
Legrand offer leading edge technical features with the DX3 Range of Mini Circuit Breakers. This range is suitable for all residential, commercial and industrial applications which require high performance, .selectivity and back up combination of devices These MCB are limitation class 3 they limit the short circuit power in the cables and prolong the installations life by avoiding damage to the cables. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. Tripping curve type C that trips instantly at a rate of five to ten times its rated current.
Features and Benefits
•Range up to 125 A
•Breaking Capacity 50 kA
•Clear identification of each circuit
•Dual identification of the breaking capacity and clear marking for easier maintenance
•Quick identification of MCB State On = Red / Off Green
• All DX3 circuit breakers can be used with a add on module
•Breaking Capacity 50 kA
•Clear identification of each circuit
•Dual identification of the breaking capacity and clear marking for easier maintenance
•Quick identification of MCB State On = Red / Off Green
• All DX3 circuit breakers can be used with a add on module
Standards
IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).
Standards
4500 NF EN 60898-1
4.5 kA - EN 60947-2
4.5 kA - EN 60947-2
