Schneider Electric Acti 9 iC60H MCB, 1P, 50A Curve D, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3492
- Mfr. Part No.:
- A9F55150
- Brand:
- Schneider Electric

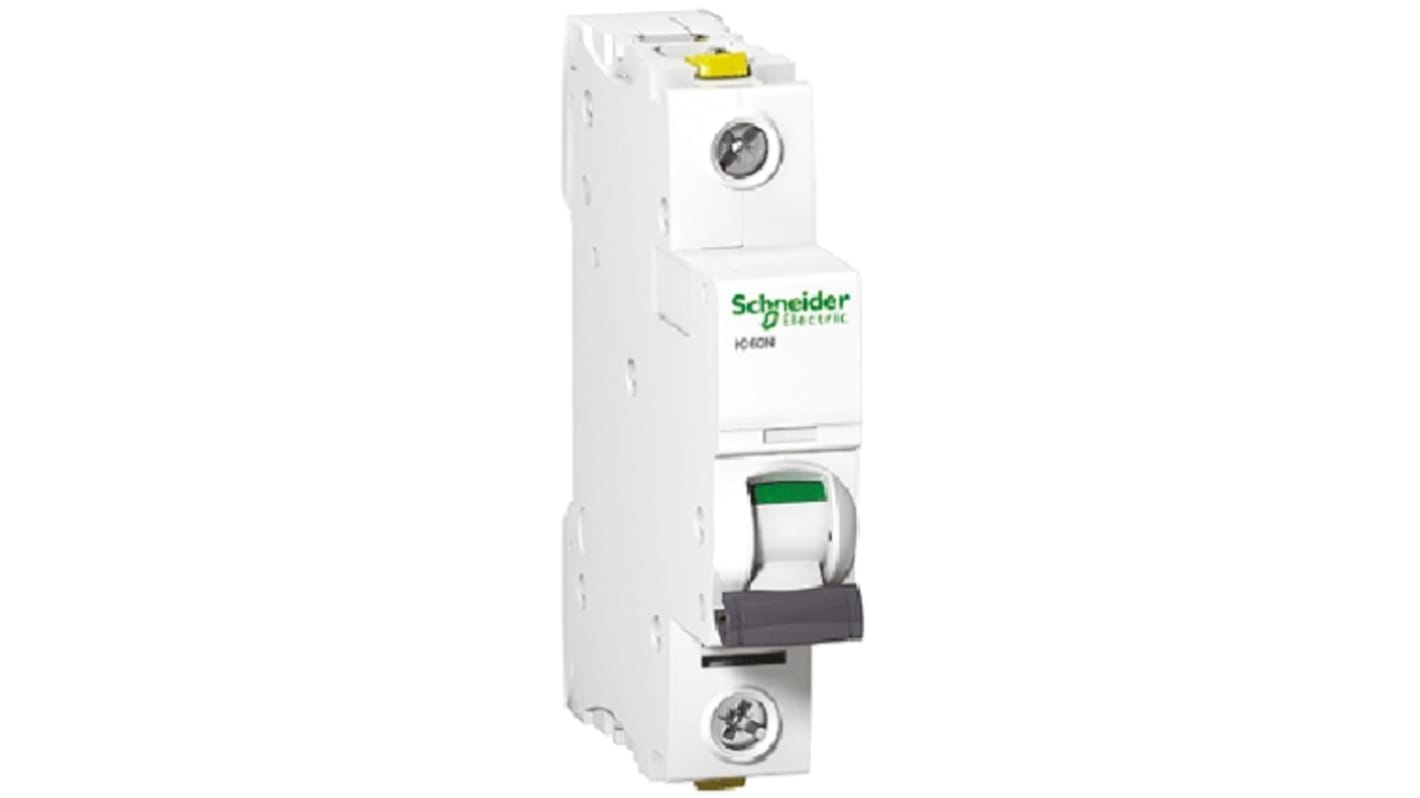

Image representative of range
Subtotal (1 unit)*
£33.63
(exc. VAT)
£40.36
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
- Plus 3 unit(s) shipping from 31 October 2025
Units | Per unit |
---|---|
1 + | £33.63 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3492
- Mfr. Part No.:
- A9F55150
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Number of Poles | 1 | |
Current Rating | 50A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V | |
Rated DC Voltage | 72 V, 12 → 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | Acti 9 | |
Series | iC60H | |
Circuit Breaker Type | MCB | |
Width | 18mm | |
Length | 85mm | |
Mounting Style | DIN Rail Mount | |
Depth | 78.5mm | |
Better World Product | Yes | |
Better World Verification | Green Premium | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Rocker Switch | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Number of Poles 1 | ||
Current Rating 50A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 100 → 133 V, 12 → 60 V, 220 → 240V | ||
Rated DC Voltage 72 V, 12 → 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Acti 9 | ||
Series iC60H | ||
Circuit Breaker Type MCB | ||
Width 18mm | ||
Length 85mm | ||
Mounting Style DIN Rail Mount | ||
Depth 78.5mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Rocker Switch | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- BG
Schneider Electric | Acti9 iC60H | Mini Circuit Breakers
Features and benefits:
- Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.
- Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.
- Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.
- 1P (number of protected poles).
- Nominal currents ranging from 1 to 63 Amps.
- Full compatibility with Acti 9 RCDs and MCCBs.
- Operating voltage up to 440 V ac, insulation voltage 500 V.
- Additional add-on earth leakage protection devices are available. This offers you better continuity of service.
- Schneider Green Premium classed product.
Protection ratings & Safety features (See datasheet for further details) -
- IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.
- Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.
- Operating temperature (for operation) -35 to 70 ° C.
- Padlockable, providing extra protection.
Applications.
- DC current circuit protection / Motor circuit protection.
- Polluted environments/networks.
- Any circuit types within industrial/commercial buildings.
Q&A: What is the differences in the Tripping Curves B, C, and D?
- Curve B: Tripping: 3 to 5 times the rated current.
- Applications: protection of generators, persons, very long cables
- Curve C: Tripping: 5 to 10 times the rated current
- Applications: protection of circuits and general applications
- Curve D: Tripping: 10 to 14 times the rated current
- Applications: protection of high surge circuits, welders, transformers and motors
