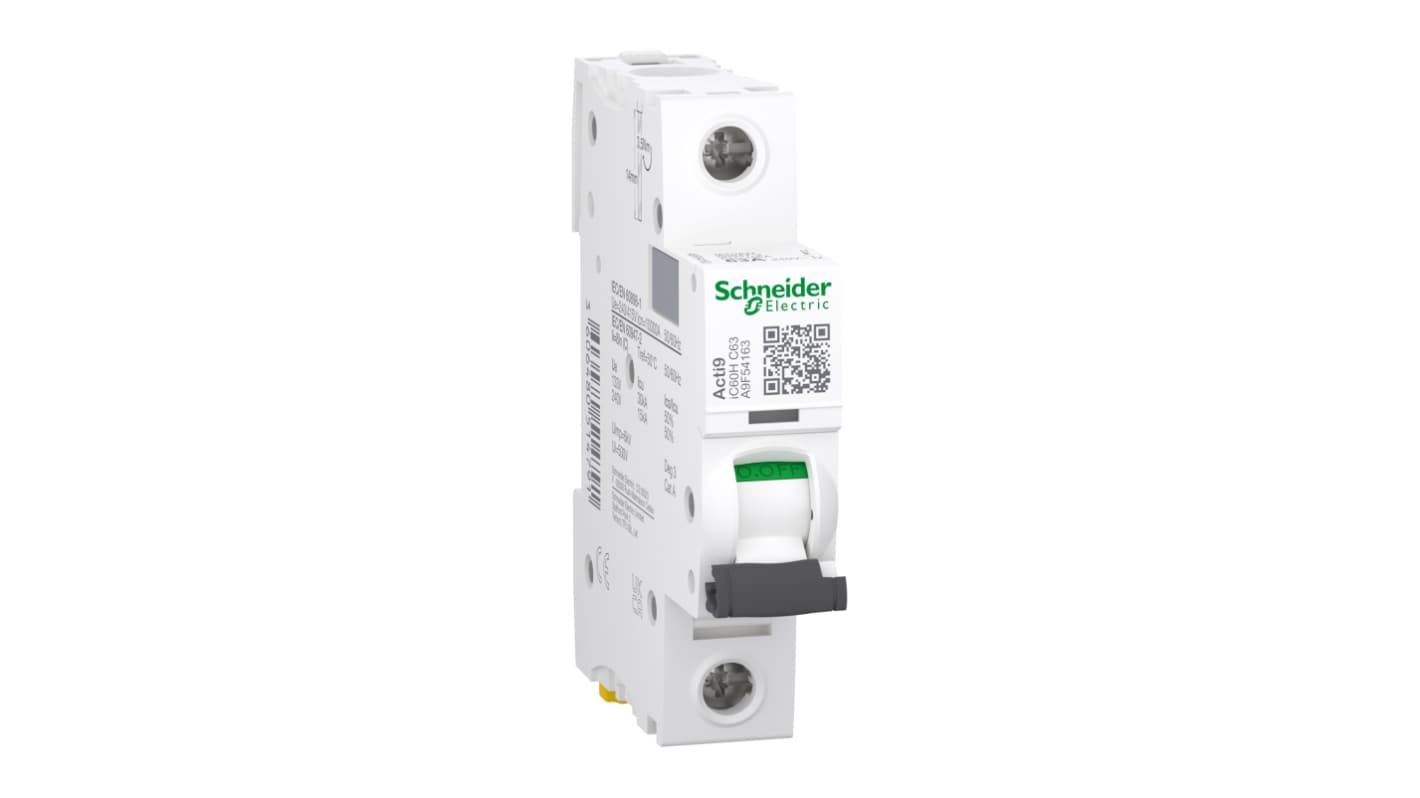

Schneider Electric Acti9 iC60H Miniature Circuit Breaker, 1-Pole, 63 A, Type C, 240 V AC, 48 V DC, 10 kA Breaking

RS Stock No.:: 791-3310
Mfr. Part No.:: A9F54163
Brand:: Schneider Electric

Schneider Electric Acti9 iC60H Miniature Circuit Breaker, 1-Pole, 63 A, Type C, 240 V AC, 48 V DC, 10 kA Breaking

Subtotal (1 unit)*

£33.88

(exc. VAT)

£40.66

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

29 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£33.88

*price indicative

RS Stock No.:: 791-3310
Mfr. Part No.:: A9F54163
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Poles	1
	Product Type	Miniature Circuit Breaker
	Current Rating	63 A
	Tripping Characteristics	Type C
	Rated AC Voltage	240 V
	Rated DC Voltage	48 V
	Mount Type	DIN Rail
	Breaking Capacity	10kA
	Range	Acti9
	Series	iC60H
	Terminal Type	Screw
	IP Rating	IP20
	Width	18 mm
	Standards/Approvals	RoHS, REACH
	Height	85mm
	Depth	78.5mm
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Rocker
	Break Time	Instantaneous

	Select all
	Brand Schneider Electric
	Number of Poles 1
	Product Type Miniature Circuit Breaker
	Current Rating 63 A
	Tripping Characteristics Type C
	Rated AC Voltage 240 V
	Rated DC Voltage 48 V
	Mount Type DIN Rail
	Breaking Capacity 10kA
	Range Acti9
	Series iC60H
	Terminal Type Screw
	IP Rating IP20
	Width 18 mm
	Standards/Approvals RoHS, REACH
	Height 85mm
	Depth 78.5mm
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Rocker
	Break Time Instantaneous

COO (Country of Origin):: BG

Schneider Electric iC60H Series MCB, 63A Current Rating, 1 Pole Configuration - A9F54163

This miniature circuit breaker (MCB) is a key component designed for both commercial and industrial applications. It features a compact design with dimensions of 18mm width, 85mm length, and 78.5mm depth, making it ideal for DIN rail mounting in various setups. This 63A circuit breaker is designed to provide enhanced electrical safety through effective short circuit protection.

Features & Benefits

• Tripping characteristics conform to Type C for reliable operation

• Thermal-magnetic technology ensures efficient overload protection

• Breaking capacity of up to 10kA at 240V AC for robust performance

• Compact design optimises space usage in electrical panels

• Integrated trip indicator enhances visibility and ease of maintenance

• Suitable for a wide range of AC and DC applications

Applications

• Utilised in commercial electrical systems for circuit protection

• Ideal for industrial environments where high capacity is required

• Provides essential safety in automated machinery installations

• Suitable for various electrical setups requiring circuit breakers

What is the significance of the breaking capacity in this MCB?

The breaking capacity of 10kA at 240V AC ensures effective interruption of fault currents, safeguarding equipment and users from potential electrical hazards. This high breaking capacity is crucial in environments with high short circuit risks.

How does the thermal-magnetic mechanism enhance performance?

The thermal-magnetic mechanism combines thermal and magnetic tripping actions, allowing quick response to overloads and short circuits. This dual functionality ensures both reliability and prompt disconnection of electrical supply during faults.

What are the wiring specifications for terminal connections?

It accepts a single terminal connection for wires ranging from 1 to 35mm² for rigid wires and 1 to 25mm² for flexible wires. The wire stripping length is set to 14mm, facilitating easy installation.
