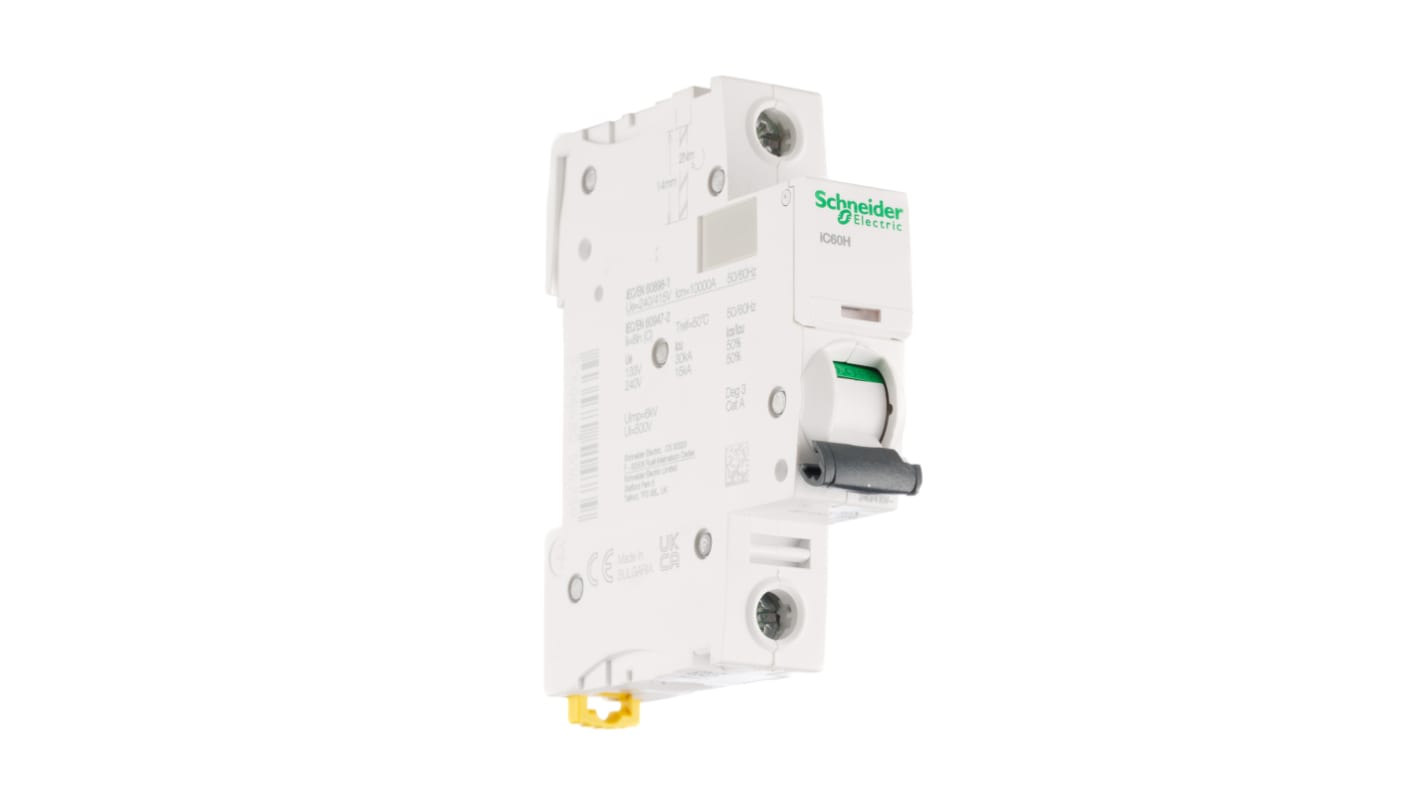

Schneider Electric Acti 9 iC60H MCB, 1P, 20A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3307
- Mfr. Part No.:
- A9F54120
- Brand:
- Schneider Electric
72 In stock - FREE next working day delivery available
Price Each
£23.05
(exc. VAT)
£27.66
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £23.05 |
| 10 - 14 | £21.65 |
| 15 + | £20.73 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3307
- Mfr. Part No.:
- A9F54120
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
Schneider Electric | Acti9 iC60H | Mini Circuit Breakers
The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.
Features and benefits:
- Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.
- Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.
- Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.
- 1P (number of protected poles).
- Nominal currents ranging from 1 to 63 Amps.
- Full compatibility with Acti 9 RCDs and MCCBs.
- Operating voltage up to 440 V ac, insulation voltage 500 V.
- Additional add-on earth leakage protection devices are available. This offers you better continuity of service.
- Schneider Green Premium classed product.
Protection ratings & Safety features (See datasheet for further details) -
- IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.
- Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.
- Operating temperature (for operation) -35 to 70 ° C.
- Padlockable, providing extra protection.
Applications.
- DC current circuit protection / Motor circuit protection.
- Polluted environments/networks.
- Any circuit types within industrial/commercial buildings.
Q&A: What is the differences in the Tripping Curves B, C, and D?
- Curve B: Tripping: 3 to 5 times the rated current.
- Applications: protection of generators, persons, very long cables
- Curve C: Tripping: 5 to 10 times the rated current
- Applications: protection of circuits and general applications
- Curve D: Tripping: 10 to 14 times the rated current
- Applications: protection of high surge circuits, welders, transformers and motors
The Acti9 come in either Curve B , C or D. Please refer to specifications for specific type.
Schneider Electric MCB, 240V AC Rated Operational Voltage, 6kV Rated Impulse Withstand Voltage - Acti9 Series - A9F54120
Don't let electrical faults seize the day – protect your circuits with this MCB from Schneider Electric. It has type C tripping characteristics, which means it instantly cuts power to your network when the supply current exceeds 5 to 10 times its rated 20A current. This eliminates the risk of electric shocks and prevents electrical arcs from damaging your equipment. With a 6kV rated impulse withstand voltage, this device is resistant to harmful transient voltage caused by faulty switching operations or lightning strikes.
Features & Benefits
• Wide operating temperature range between -35°C and +70°C for use in demanding conditions
• Mechanical durability of 20,000 operating cycles for long-term performance
• Padlockable in the OFF position to comply with LOTO protocols
• Integrated contact position indicator for easy monitoring
• 240V AC-rated operational voltage for use in low-voltage applications
• Mechanical durability of 20,000 operating cycles for long-term performance
• Padlockable in the OFF position to comply with LOTO protocols
• Integrated contact position indicator for easy monitoring
• 240V AC-rated operational voltage for use in low-voltage applications
Applications
• Transformers
• Lighting systems
• Telecommunications industry
• Lighting systems
• Telecommunications industry
Is this MCB finger-safe?
Yes, this unit is designed with terminals that are out of reach of your fingers to prevent accidental contact that may lead to an electric shock.
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 1P |
| Current Rating | 20A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V |
| Rated DC Voltage | 72 V, 12 → 48V |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Range | Acti 9 |
| Series | iC60H |
| Circuit Breaker Type | MCB |
| Width | 18mm |
| Length | 85mm |
| Mounting Style | DIN Rail Mount |
| Depth | 78.5mm |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Rocker Switch |
| Tripping Mechanism | Thermal-Magnetic |
