Schneider Electric Acti 9 C60H-DC MCB, 1P, 10A Curve C, 250V DC
- RS Stock No.:
- 772-1509
- Mfr. Part No.:
- A9N61508
- Brand:
- Schneider Electric

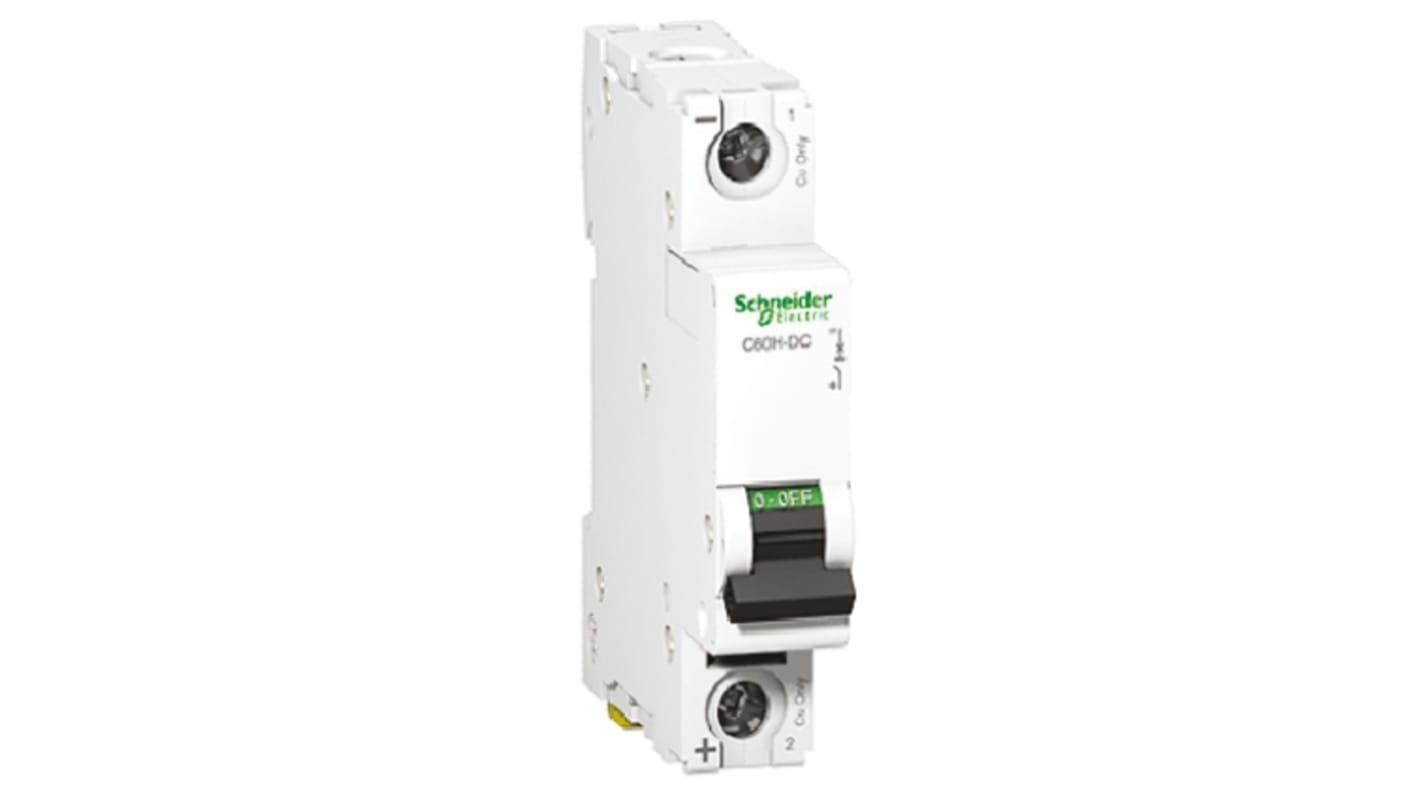

Image representative of range
Subtotal (1 unit)*
£51.60
(exc. VAT)
£61.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £51.60 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 772-1509
- Mfr. Part No.:
- A9N61508
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Number of Poles | 1 | |
Current Rating | 10A | |
Tripping Characteristics | Type C | |
Rated DC Voltage | 250V | |
Range | Acti 9 | |
Series | C60H-DC | |
Circuit Breaker Type | MCB | |
Width | 18mm | |
Mounting Style | DIN Rail Mount | |
Depth | 73mm | |
Better World Verification | Green Premium | |
Better World Product | Yes | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Number of Poles 1 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 250V | ||
Range Acti 9 | ||
Series C60H-DC | ||
Circuit Breaker Type MCB | ||
Width 18mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
- COO (Country of Origin):
- CN
Schneider Electric Acti9 C60H-DC MCBs
This range of supplementary protectors are used in direct current circuits (Industrial control and automations, transport, renewable energy).
They combine the following functions of circuit protection against short-circuit and overload currents, control and isolation.
They combine the following functions of circuit protection against short-circuit and overload currents, control and isolation.
Features & Benefits
Tripping curves: C curve - Overcurrent protection for any type of application
The green strip indicates that all the poles are open and allows work to be carried out on the downstream circuit in complete safety
Suitable for isolation as defined in IEC / EN 60947-2
Current limitation in the event of a fault: fast opening of the contacts prevents the loads from being damaged in the event of a short-circuit
The green strip indicates that all the poles are open and allows work to be carried out on the downstream circuit in complete safety
Suitable for isolation as defined in IEC / EN 60947-2
Current limitation in the event of a fault: fast opening of the contacts prevents the loads from being damaged in the event of a short-circuit
