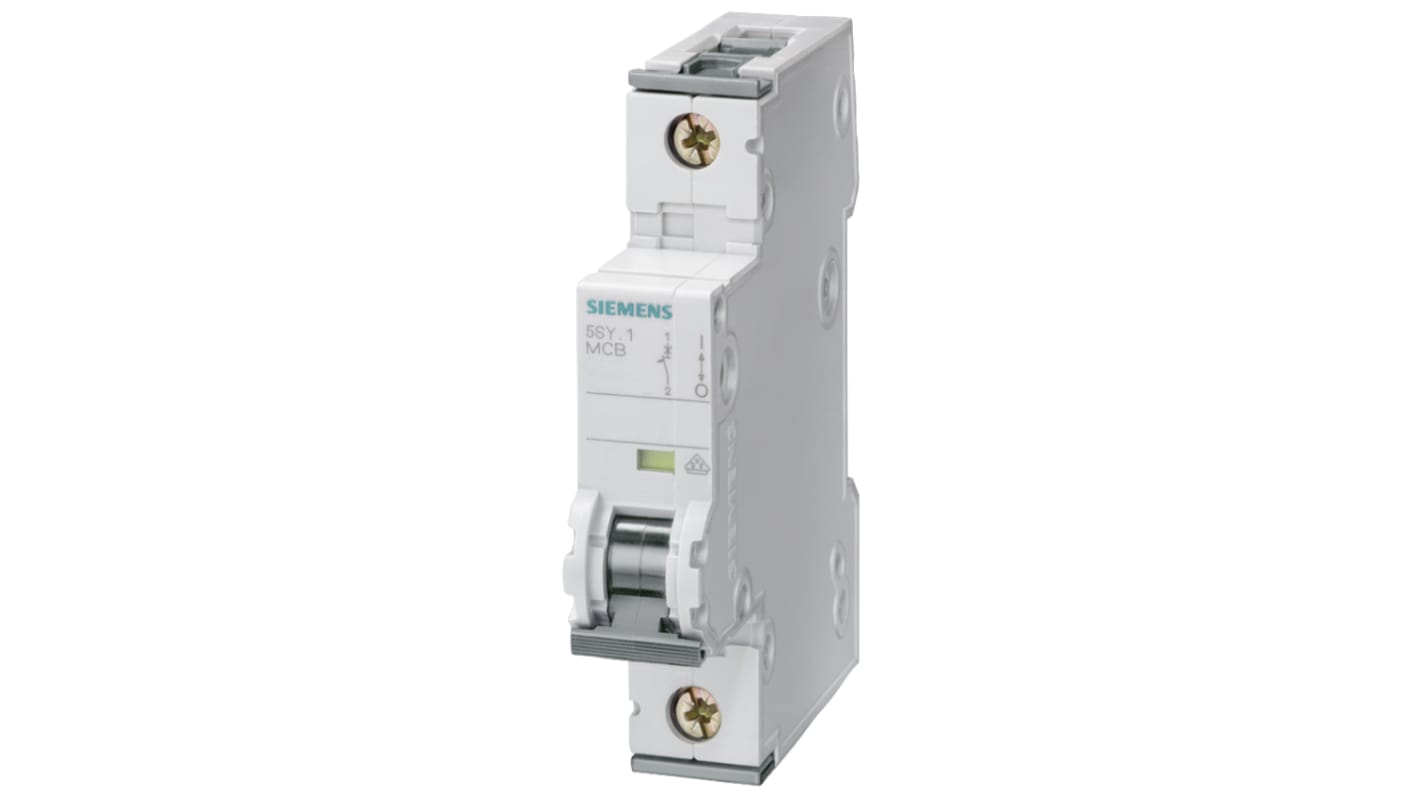

Siemens Sentron 5SY4 MCB, 1P, 4A Curve D, 230V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 772-1240
- Mfr. Part No.:
- 5SY4104-8
- Brand:
- Siemens
Subtotal (1 unit)*
£22.02
(exc. VAT)
£26.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.02 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 772-1240
- Mfr. Part No.:
- 5SY4104-8
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 1 | |
| Current Rating | 4A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 230 V, 400V | |
| Rated DC Voltage | 72V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | Sentron | |
| Series | 5SY4 | |
| Circuit Breaker Type | MCB | |
| Width | 17.5mm | |
| Length | 89.8mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 76mm | |
| Better World Claim | Extended product life | |
| Better World Product | Yes | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 1 | ||
Current Rating 4A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230 V, 400V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Sentron | ||
Series 5SY4 | ||
Circuit Breaker Type MCB | ||
Width 17.5mm | ||
Length 89.8mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Better World Claim Extended product life | ||
Better World Product Yes | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE
Siemens MCB, 4kV Rated Impulse Withstand Voltage, 150g Weight - SENTRON Series - 5SY4104-8
Don't let electrical hazards sneak up on your circuits – protect your kit with this MCB from Siemens. It steps in instantly to cut power to your network in the event of a short circuit or overcurrent, preventing equipment damage and electric shocks. The breaker has type-D tripping characteristics, which means that it's triggered at 10 to 20 times its 4A load current. This makes it useful for devices where high inrushes are expected, such as motors and power supply units. Its terminals accommodate cable sizes ranging between 14 and 4AWG, making it a versatile solution. You'll find MCBs like this one used on assembly lines and in switchgear systems.
Features & Benefits
• Performs reliably in temperatures ranging between -25°C and +55°C, making it a good fit for demanding environments
• DIN rail mounting style is simple and doesn't need tools, saving time and hassle
• Rated impulse withstand voltage of 4kV allows it to handle sudden power spikes without suffering damage
• DIN rail mounting style is simple and doesn't need tools, saving time and hassle
• Rated impulse withstand voltage of 4kV allows it to handle sudden power spikes without suffering damage
How durable is this MCB?
This unit withstands up to 20,000 mechanical operating cycles, so you can rest assured of its long-term performance.
