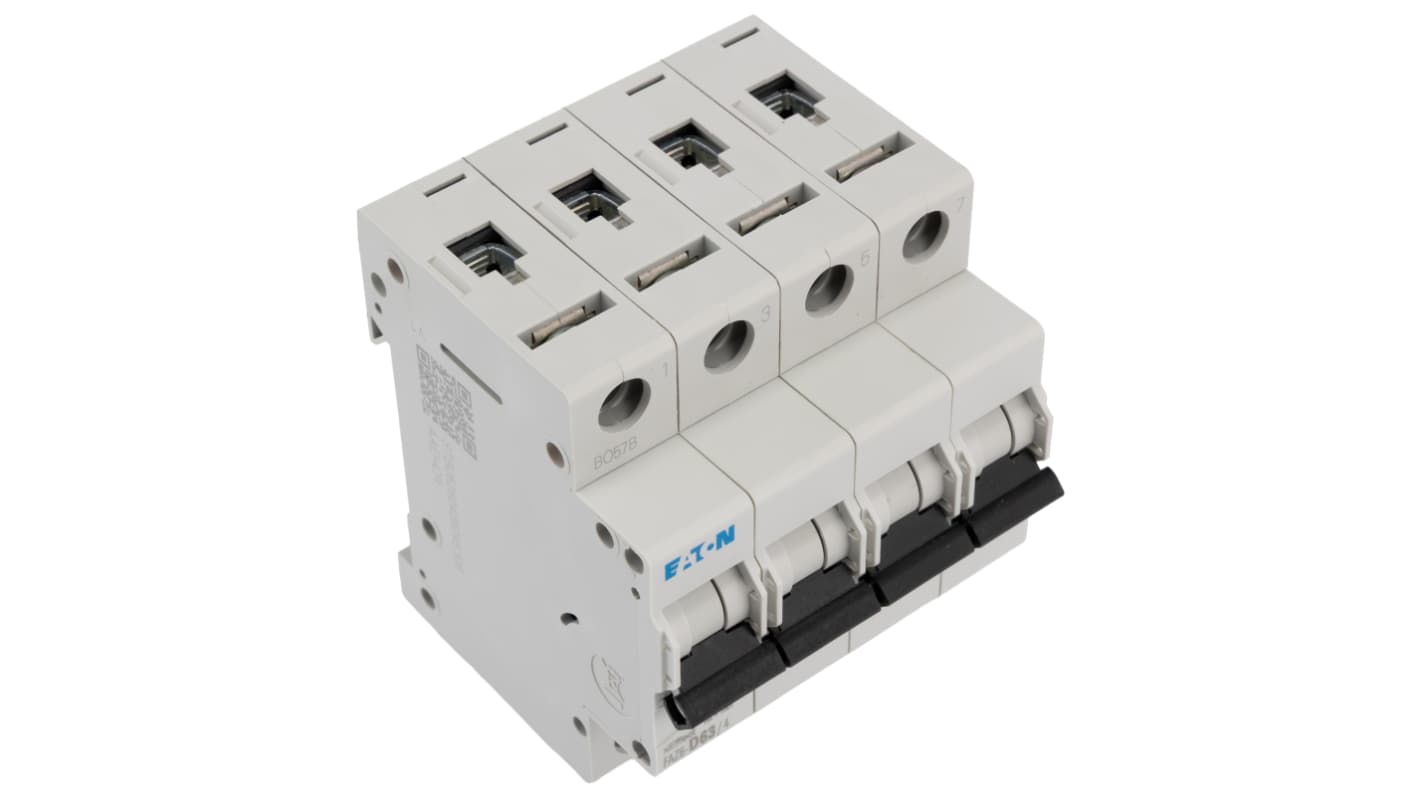

Eaton xEffect MCB, 4P, 63A Curve D, 230 → 400V AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£195.19

(exc. VAT)

£234.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 3 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£195.19

*price indicative

RS Stock No.:
769-4857
Mfr. Part No.:
168096 FAZ6-D63/4
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

4

Current Rating

63A

Tripping Characteristics

Type D

Rated AC Voltage

230 → 400V

Breaking Capacity at Maximum Voltage Rating

6 kA

Range

xEffect

Circuit Breaker Type

MCB

Length

80mm

Width

17.5mm

Mounting Style

DIN Rail Mount

Depth

62mm

Eaton MCB, 63A Current Rating, 4 Poles - 168096 FAZ6-D63/4


This MCB is a compact, high-performance circuit breaker designed for industrial applications. With a current rating of 63A and a four-pole configuration, it ensures reliable circuit protection. Its robust design allows it to operate at a rated AC voltage of 415V, making it suitable for a variety of electrical installations.

Features & Benefits


• Provides high breaking capacity of 6 kA for enhanced protection
• Type D tripping characteristics offer superior overload protection
• Designed for easy mounting on a DIN rail for quick installations
• Toggle switch reset actuator ensures straightforward operation
• Part of the xEffect range for advanced switching solutions

Applications


• Used in commercial electrical distribution systems
• Ideal for machinery and equipment requiring robust protection
• Commonly employed in industrial automation setups
• Suitable for circuit protection in large electrical panels

What kind of environments is this circuit breaker designed for?


This circuit breaker is specifically engineered for industrial settings, providing reliable operation in environments with high electrical loads, such as factories and workshops.

How does the Type D characteristic benefit circuit protection?


The Type D tripping characteristic allows the breaker to manage high inrush currents, which is particularly useful for applications involving motors and transformers, preventing nuisance tripping.

Can this breaker be used in residential applications?


While primarily designed for industrial use, it can also be applied in certain residential settings where high current protection is necessary, but consultation with a professional is advisable.

How does the breaking capacity affect overall system safety?


A breaking capacity of 6 kA ensures that the circuit breaker can safely interrupt a short circuit without sustaining damage, adding a significant layer of safety to your electrical installations.

Note

Eaton formerly known as Moeller


FAZ MCB's
