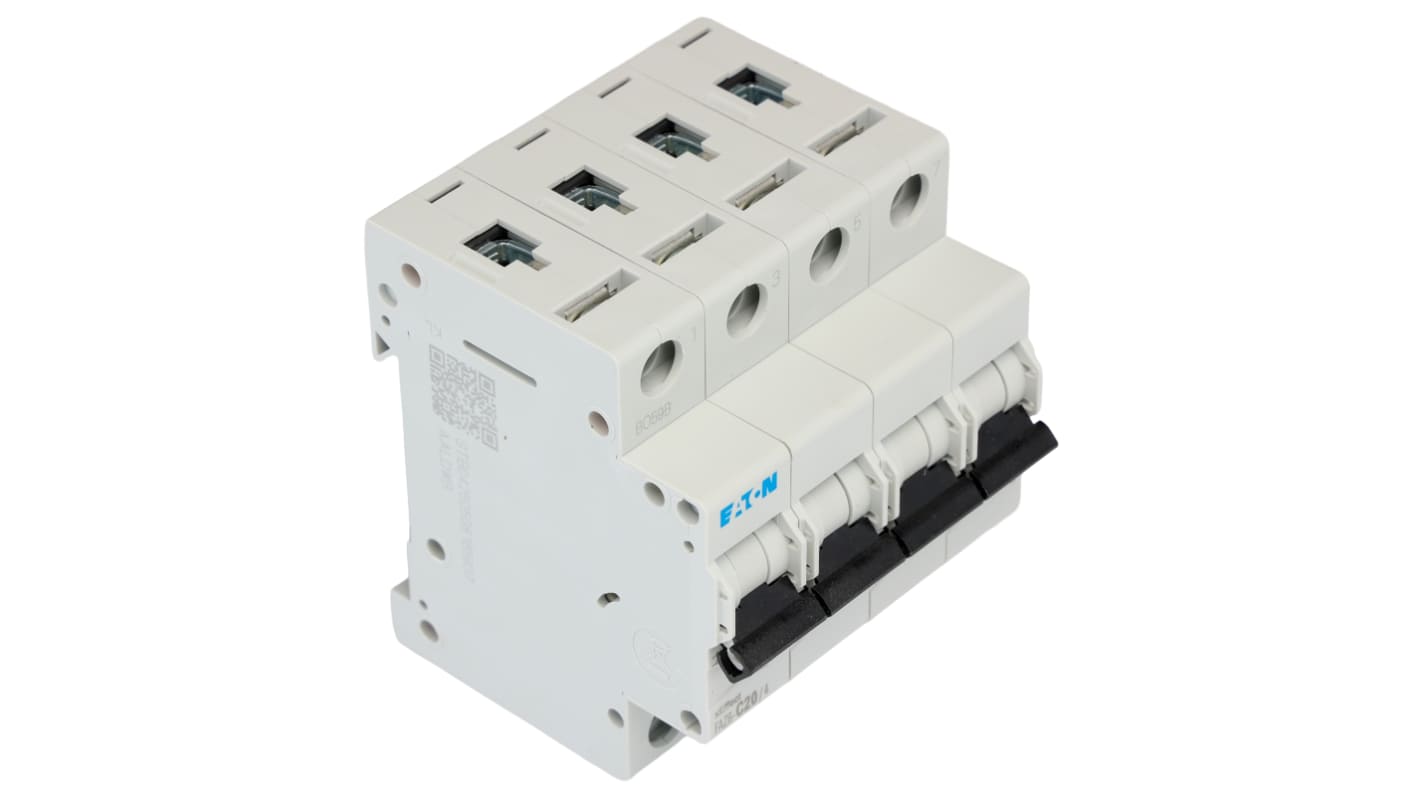

Eaton xEffect MCB, 4P, 20A Curve C, 230 → 400V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 769-4618
- Mfr. Part No.:
- 239219 FAZ6-C20/4
- Brand:
- Eaton
Subtotal (1 unit)*
£140.85
(exc. VAT)
£169.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £140.85 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£153.97
(exc. VAT)
£184.76
(inc. VAT)
- RS Stock No.:
- 769-4618
- Mfr. Part No.:
- 239219 FAZ6-C20/4
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 4 | |
Current Rating | 20A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 230 → 400V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 80mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 62mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 → 400V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 80mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 62mm | ||
Eaton MCB, 20A Current Rating, 4 Poles - 239219 FAZ6-C20/4
This miniature circuit breaker (MCB) is designed for industrial applications, providing essential protection in electrical installations. The Eaton MCB offers a current rating of 20 A, suitable for 4-pole configurations. With dimensions of 70.8mm in width, 85mm in length, and a depth of 85 mm, it is designed for easy installation on DIN rail mounts. The device supports an AC voltage range of 230 V to 400 V and features a robust breaking capacity of 6 kA, making it a reliable choice for safeguarding electrical systems.
Features & Benefits
• Type C circuit breaker suitable for inductive loads
• High-performance MCB with a 6 kA breaking capacity
• Designed for optimal thermal stability in various environments
• Compact design ensures efficient use of space on panels
• Provides effective protection against short circuits and overloads
• Compatible with a broad range of conductor cross-sections
• High-performance MCB with a 6 kA breaking capacity
• Designed for optimal thermal stability in various environments
• Compact design ensures efficient use of space on panels
• Provides effective protection against short circuits and overloads
• Compatible with a broad range of conductor cross-sections
Applications
• Used for circuit protection in industrial automation systems
• Ideal for electrical installations requiring dependable circuit breakers
• Suitable for controlling power supplies in commercial settings
• Employed within manufacturing environments for safety compliance
• Utilised in high-capacity machinery and equipment protection
• Ideal for electrical installations requiring dependable circuit breakers
• Suitable for controlling power supplies in commercial settings
• Employed within manufacturing environments for safety compliance
• Utilised in high-capacity machinery and equipment protection
What are the key electrical specifications of this device?
The device has a rated current of 20 A and supports up to 400 V AC. It is classified as a Type C circuit breaker and features a breaking capacity of 6 kA.
How does this MCB handle short circuits?
It is designed to interrupt power quickly in the event of a short circuit, effectively preventing damage to the connected circuits and ensuring safety.
Can this MCB be used in outdoor installations?
While it is rated for moisture resistance up to IP20, it is best suited for indoor applications. Additional protection may be necessary for outdoor environments.
What types of loads is it suitable for?
The Type C characteristic means it can handle inductive loads such as motors and transformers efficiently without nuisance tripping.
How should this device be installed?
It should be mounted on a standard DIN rail in an enclosure that meets safety standards for the installation environment. Proper electrical connections must be ensured for optimal performance.
Note
Eaton formerly known as Moeller
FAZ MCB's
