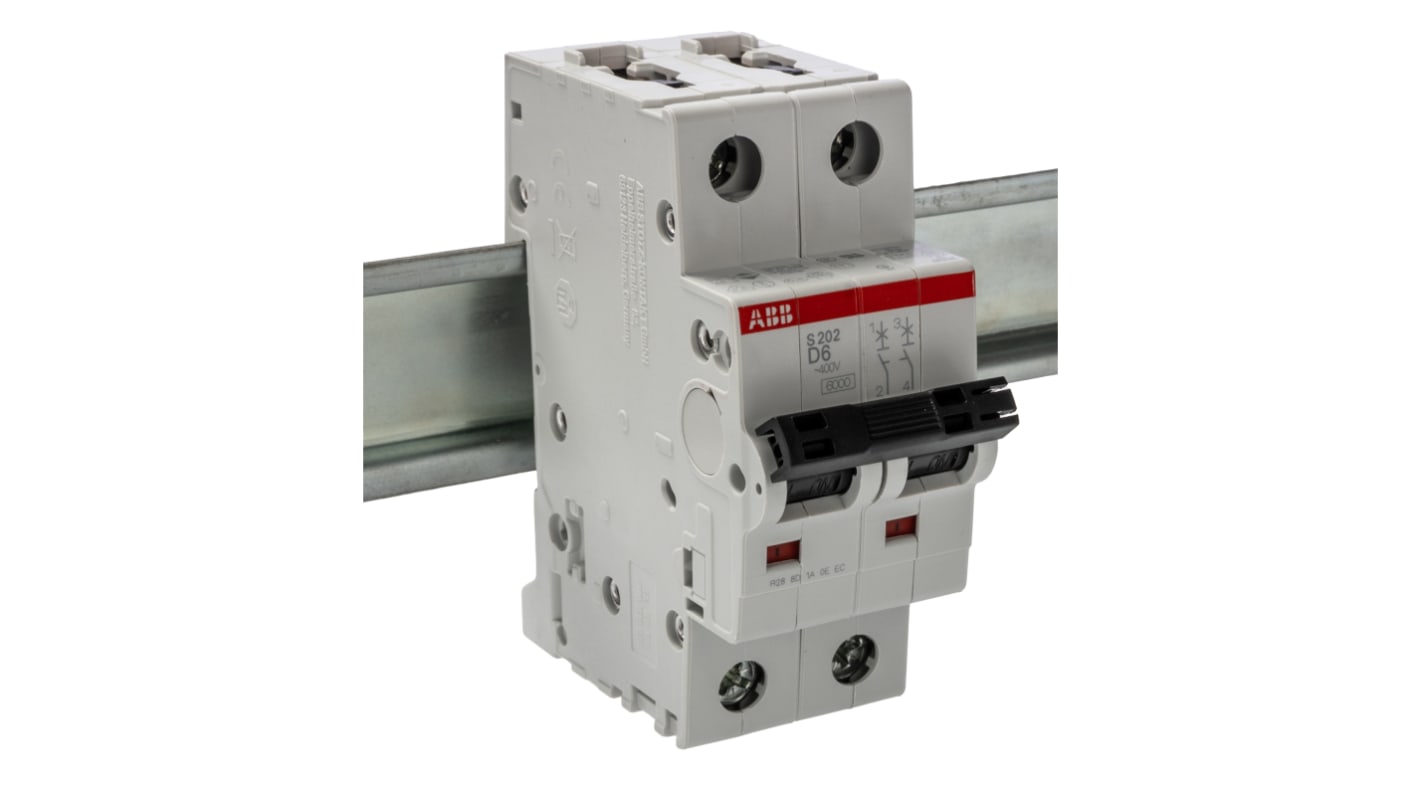

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 6A, Type D, 400V ac AC, 125 V dc DC, 6 kA Breaking

View all MCBs

Subtotal (1 unit)*

£47.25

(exc. VAT)

£56.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 25 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.25

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
746-7854
Mfr. Part No.:
2CDS252001R0061 S202-D6
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Miniature Circuit Breaker

Number of Poles

2

Current Rating

6A

Tripping Characteristics

Type D

Rated AC Voltage

400V ac

Rated DC Voltage

125V dc

Breaking Capacity

6kA

Mount Type

DIN Rail

Range

System Pro M Compact

Series

S200

Terminal Type

Cage Terminal

IP Rating

IP20, IP40

Width

35mm

Standards/Approvals

IEC/EN 60947-2, IEC/EN 60898-1

Depth

69mm

Height

69mm

Better World Product

Yes

Better World Claim

Designed for Disassembly

Tripping Mechanism

Thermomagnetic, Electromagnetic

Reset Actuator Type

Lever

COO (Country of Origin):
DE

ABB S200 Series MCB, 6A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS252001R0061 S202-D6


This MCB is designed to protect electrical circuits in commercial and industrial settings. With a current rating of 6A and type D tripping characteristics, it offers effective protection against overloads and short circuits. This component is suitable for integration into automated systems, playing a significant role in enhancing operational safety and efficiency.

Features & Benefits


• Provides short circuit protection to avert equipment damage

• Robust 10kA breaking capacity for increased reliability

• Designed for thermal electromechanical operation for consistent performance

• Utilises screw terminal contact for secure electrical connections

• DIN rail mounted for straightforward installation and space optimisation

• Part of the System M Pro range, ensuring compatibility across various Applications

Applications


• Protects electrical circuits in commercial environments

• Ideal for industrial machinery requiring dependable circuit protection

• Suitable for areas with high short circuit risks

• Used in automated systems to improve operational safety

What type of mounting does this product support?


It supports DIN rail mounting for easy installation in panel setups.

How can I determine its compatibility with my system?


Check the specified voltage ratings and current capacity to confirm suitability for your application.

What maintenance is required to ensure optimal performance?


Regular visual inspections are recommended to identify any signs of wear or damage.

Can it be used in both AC and DC applications?


Yes, it is rated for both AC and DC voltages, providing versatility for various uses.

What should I do if it trips frequently?


Investigate the connected load and check for potential short circuits or overloads in the system.
