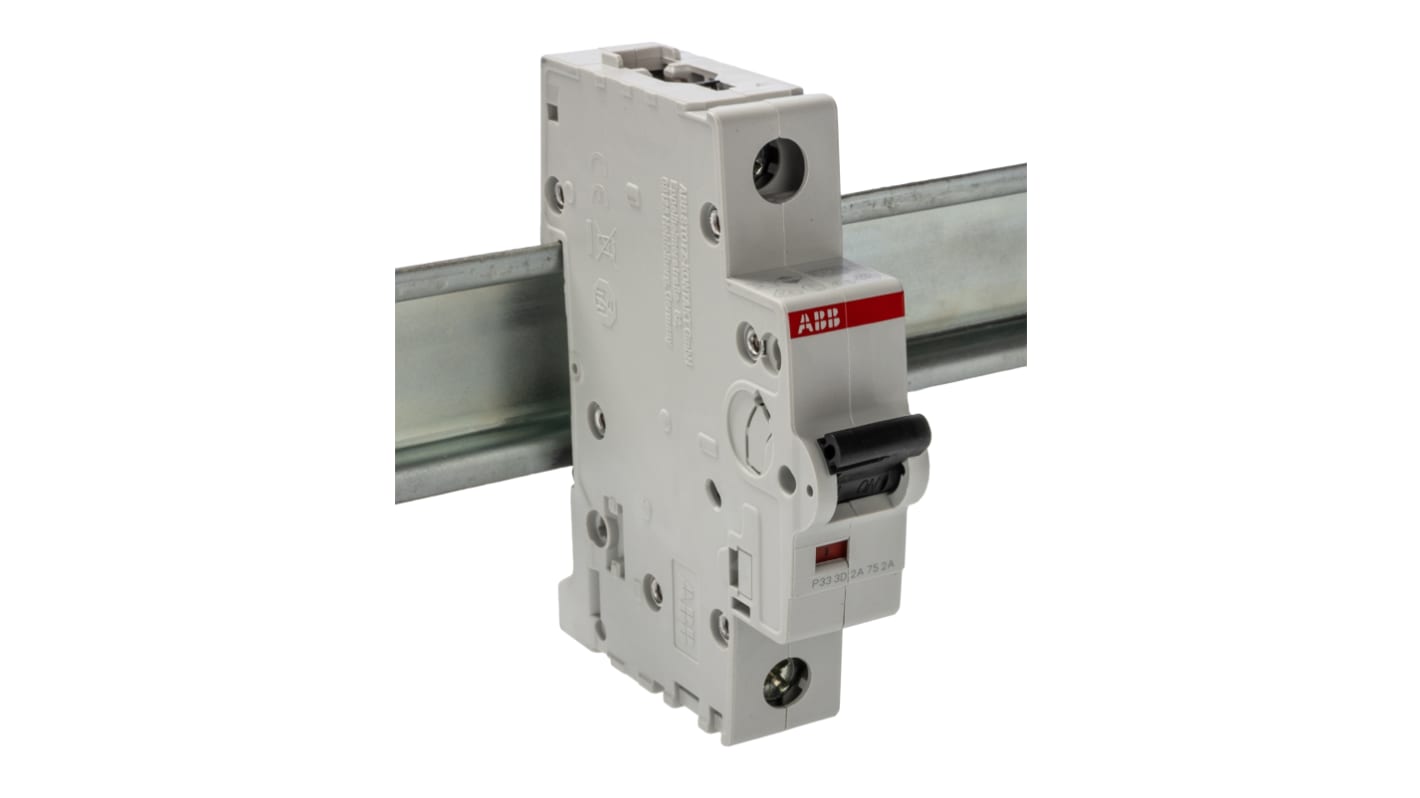

ABB System Pro M Compact S200 MCB, 1P, 8A Curve D, 230V AC, 72V DC, 10 kA Breaking Capacity

RS Stock No.:: 746-7832
Mfr. Part No.:: 2CDS251001R0081 S201-D8
Brand:: ABB

ABB System Pro M Compact S200 MCB, 1P, 8A Curve D, 230V AC, 72V DC, 10 kA Breaking Capacity

View all MCBs

Price Each**

£17.05

(exc. VAT)

£20.46

(inc. VAT)

10 In stock - FREE next working day delivery available*

5 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£17.05

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 746-7832
Mfr. Part No.:: 2CDS251001R0081 S201-D8
Brand:: ABB

Type D Single Pole 6kA - System pro M

Type D characteristic offers short circuit response (but greater than Type C) of 10-13 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance tripping might occur if a faster type was used.

DIN rail mounting
Complies with BS EN 60898
Operating temperature range of -25°C to +55°C
Standard 17.5mm width
Max. operating voltage: 440Vac, 60Vdc

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

ABB S200 Series MCB, 8A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS251001R0081 S201-D8

This miniature circuit breaker (MCB) is designed to provide protection in commercial and industrial environments. With a current rating of 8 A and a Type D tripping characteristic, it safeguards electrical circuits against overloads and short circuit faults. Its sturdy construction ensures consistent performance while meeting safety standards.

Features & Benefits

• Provides short circuit protection for enhanced safety
• Features a thermal electromechanical tripping mechanism
• Supports a rated AC voltage of 230 V
• Designed for DIN rail mounting for straightforward installation
• Allows for disassembly to promote sustainability
• Equipped with screw terminal contacts for secure connections

Applications

• Utilised in commercial electrical systems for circuit protection
• Suitable for industrial where dependability is essential
• Ideal for compact circuit breaker installations
• Helps maintain the operational integrity of electrical circuits
• Improves safety in environments susceptible to electrical faults

What kind of electrical systems can it be used with?

It is suitable for both commercial and industrial electrical systems.

How does it help in preventing electrical faults?

It provides short circuit protection and includes a tripping mechanism to isolate faulty circuits.

Is it easy to install in existing setups?

Yes, it is designed for DIN rail mounting, making installation simple.

What maintenance is required for proper functioning?

Regular inspections and ensuring secure mounting connections will help maintain performance.

Can it be employed in both AC and DC applications?

Yes, it supports a rated AC voltage of 230 V and a rated DC voltage of 72 V, adding versatility.

ABB System Pro M Single & Double Pole MCB's

Attribute	Value
Number of Poles	1P
Current Rating	8A
Tripping Characteristics	Type D
Rated AC Voltage	230V
Rated DC Voltage	72V
Breaking Capacity at Maximum Voltage Rating	10 kA
Range	System Pro M Compact
Series	S200
Circuit Breaker Type	MCB
Length	88mm
Width	17.5mm
Mounting Style	DIN Rail Mount
Depth	69mm
Model Number	S201-D8
Better World Claim	Designed for disassembly
Better World Product	Yes
Application	Commercial, Industrial
Terminal Contact Type	Screw
Special Features	Short Circuit Protection
Reset Actuator Type	Lever
